HAZ-Street
Zone :
Description
CE 0722 Ex II 2GD – Ex eb mb IIC T.. Gb – Ex tb IIIC T.. °C Db – IP66
CE Ex II 3G – Ex nR IIC T.. Gc

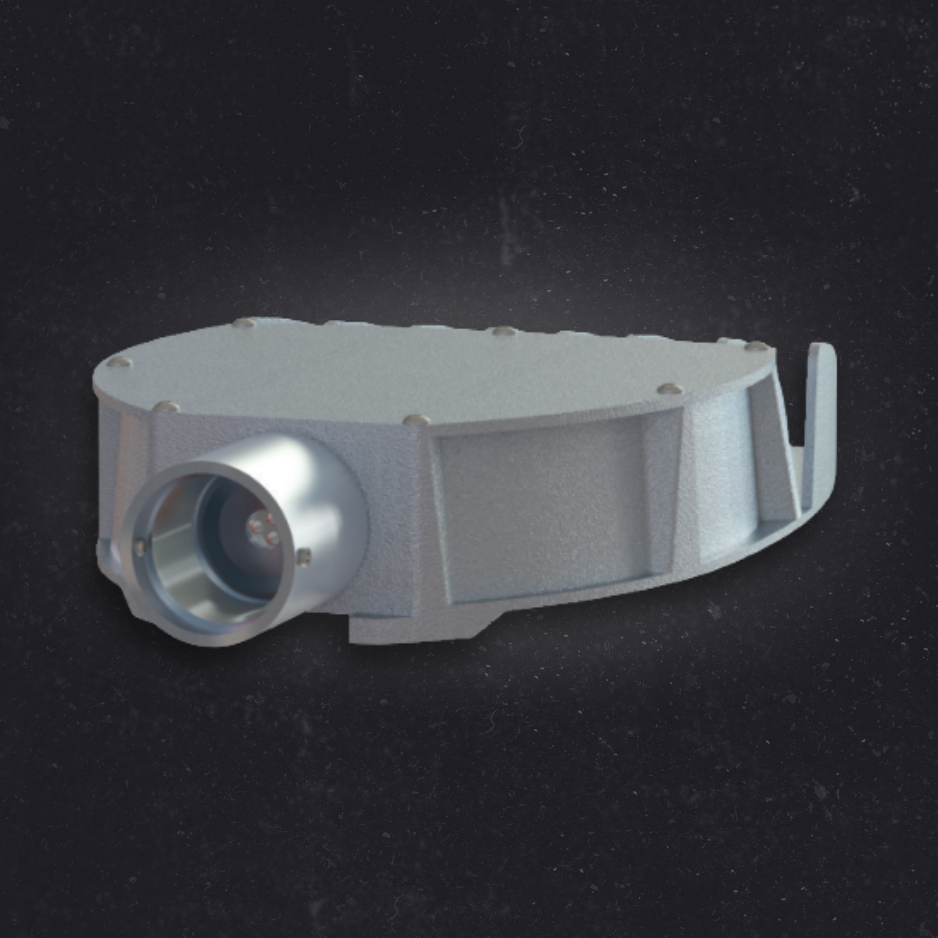

HAX-Street LED lighting fixtures are suitable for outdoor and perimeter street lighting of industrial areas with risk of explosion classified as Zone 1, 2, 21, 22. Designed following the specific requirements of street lighting, HAX-Street can be supplied in versions with direct horizontal/vertical pole mount or with a mounting bracket and cable gland. Different types of optics can also be installed directly on the LED plate.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Wattage | Lumens | Efficiency (lm/W) |
|---|---|---|---|
| Haz-Street-Z1-080025... | 26 | 3432 | 132 |
| Haz-Street-Z1-080050... | 52 | 6865 | 132 |
| Haz-Street-Z1-080075... | 78 | 10300 | 132 |
| Haz-Street-Z1-0800100... | 95 | 12480 | 131 |
| Haz-Street-Z1-100200... | 194 | 24503 | 126 |
| Haz-Street-Z2-080025... | 26 | 3432 | 132 |
| Haz-Street-Z2-080050... | 52 | 6865 | 132 |
| Haz-Street-Z2-080075... | 78 | 12480 | 131 |
| Haz-Street-Z2-0800100... | 95 | 12480 | 131 |
| Haz-Street-Z2-100200... | 194 | 24503 | 126 |
Electrical Features
- Connection terminals: 4mm²
- Input voltage: 100-277 Vac
- Rated Frequency: 50-60 Hz ±5%
- Power factor: >0,95
- Cable inlets: Ø1 1/2
- Overvoltage protection: 4kV
Mechanical Features
- Housing: Aluminium alloy
- Gaskets: Silicone resistant to acids, hydrocarbons and high temperatures
- Ingress protection: IP66
- Mounting: Galvanized steel fastening brackets
Work Parameters
- Ambient Temperatures: -60°C to +60°C
Photometrical Parameters
- CRI: >70
- Colour temperature: 5700 K
