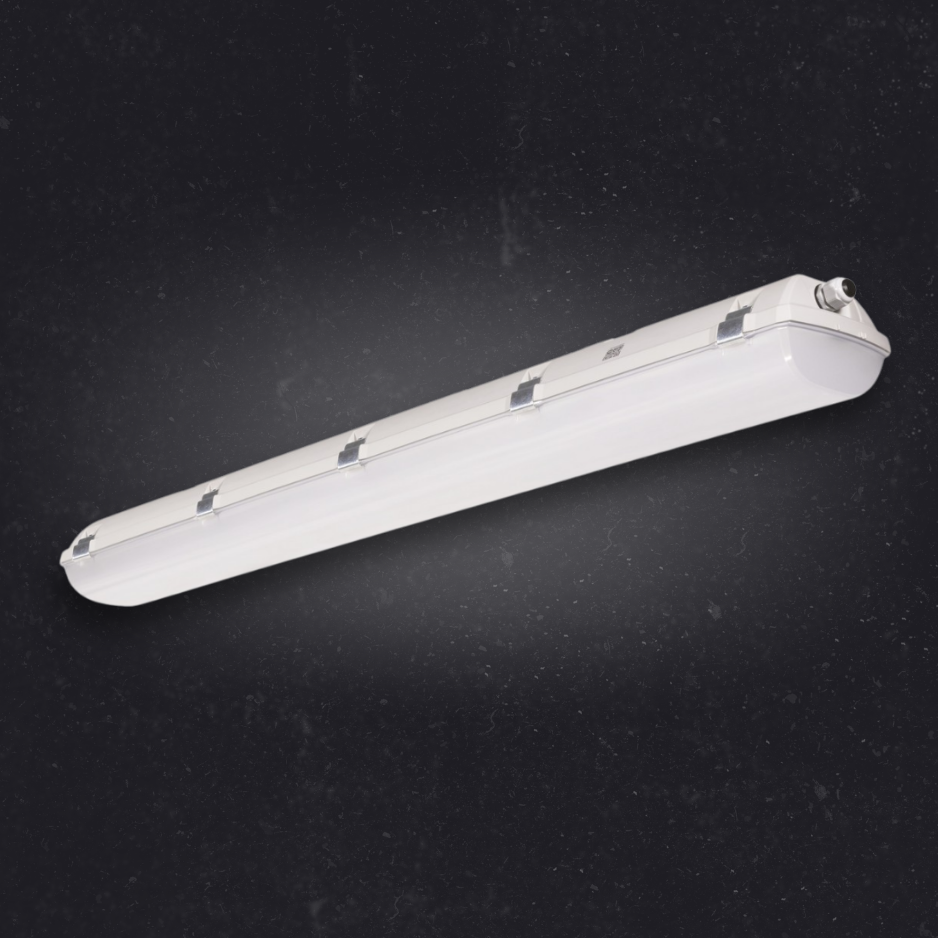

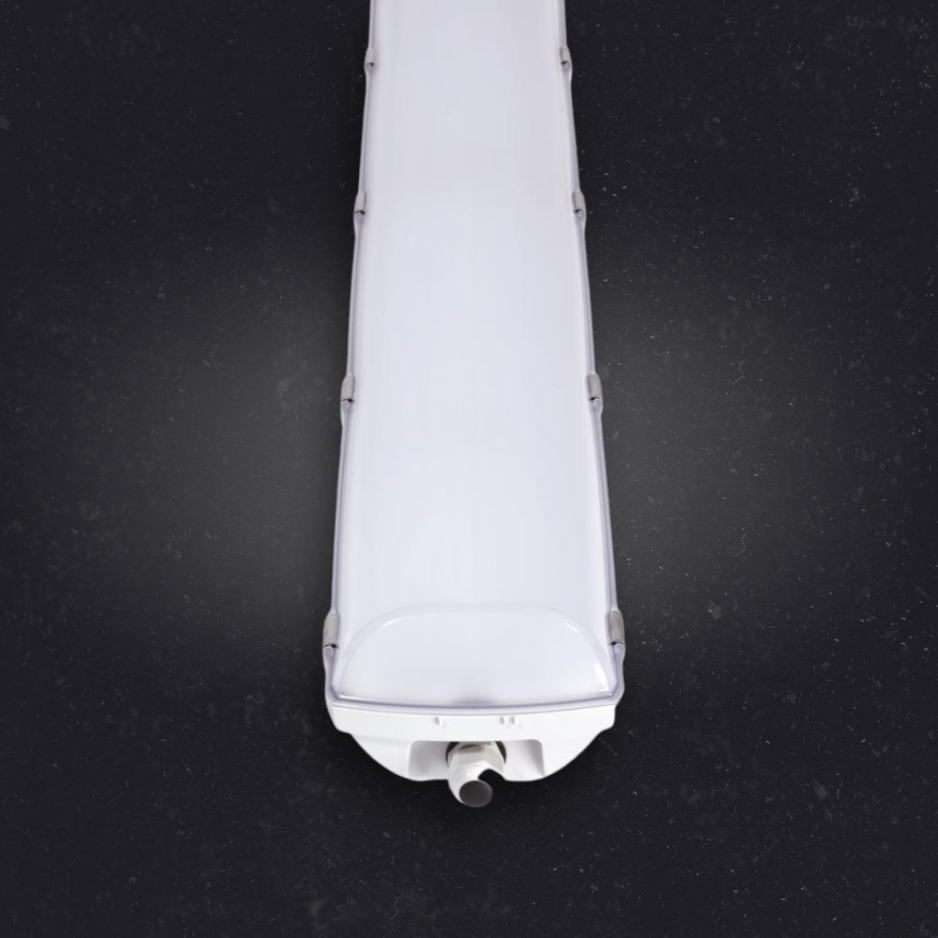

Futura MAX
Zone :
Description
The light fitting is suitable for indoor and outdoor with roof with extreme ambient temperatures from (-40 °C to +70 °C). The fixture is designed especially for refrigeration, cold stores, bakeries, heating plants, metallurgical lines, glass factories and other premises without the danger of explosion of gases, dusts and flammable vapors.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Wattage |
Efficiency (lm/W) |
Lumens (lm) |
|---|---|---|---|
| Futura 1.5ft MAX PCc Al 4000/840 | 23,3 | 155 | 3850 |
| Futura 1.5ft MAX PCc Al 5500/840 | 31,9 | 157 | 5340 |
| Futura 2.4ft MAX PCc Al 6400/840 | 36,3 | 162 | 6240 |
| Futura 2.4ft MAX PCc Al 8800/840 | 49,7 | 164 | 8690 |
| Futura 2.5ft MAX PCc Al 8000/840 | 44,4 | 164 | 7770 |
| Futura 2.5ft MAX PCc Al 110000/840 | 71,1 | 163 | 12310 |
Electrical Features
- Electric equipment: LED modules, current driver
- Cable glands: Screwed PG13.5
- Wiring: Through wiring of up to 10 wires at body
- Certification: HACCP
Mechanical Features
- Housing: Grey polycarbonate with AI coolers
- Diffuser: Translucent polycarbonate
- Ingress protection: IP66
- Impact strength: IK10
- Mounting: Stainless hooks and brackets
Work Parameters
- Ambient Temperatures: -40°C to +70°C
- Lifetime: 50.000h L80 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K, 3000K (optional), 5000K (optional)
