INP310LED-SF
Zone :

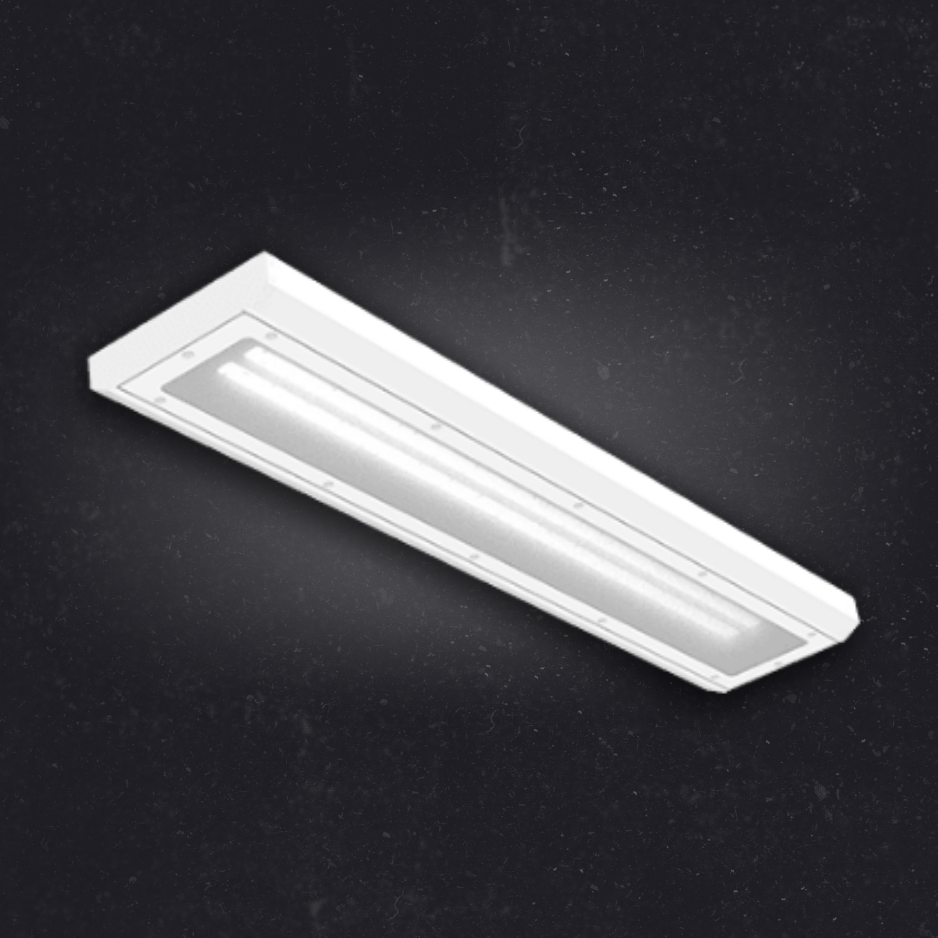

Compact, vandal-proof lighting fixture with LED modules, designed to illuminate cells and corridors in penitentiaries and prisons. It is characterized by high impact resistance (IK11+). The solid construction and the use of special screws prevent unauthorized persons from accessing the interior of the housing and exclude the risk of intentional injury using it (anti-ligature). The housing is made of galvanized or stainless steel painted with modified powder paint, while the lampshade is made of thick polycarbonate. The fixture is characterized by easy assembly and connection. Optional equipment includes the following functions: 3-hour emergency power supply module A3, adaptation to cooperate with the central battery ZB, power supply equipped with the DALI-2 DA interface, SNS motion sensor or night light NL module.
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Wattage | Luminous Flux (lm) | Efficiency (lm/W) |
|---|---|---|---|
| INP310LED-0300-M1-1-..-SF | 5,3 | 555 | 105 |
| INP310LED-0300-M2-1-..-SF | 9,4 | 1110 | 118 |
| INP310LED-0600-J2-1-..-SF | 18,2 | 2200 | 122 |
| INP310LED-0600-J2-3-..-SF | 25,9 | 3134 | 121 |
| INP310LED-0600-B2-1-..-SF | 34,7 | 4361 | 126 |
| INP310LED-0600-B2-2-..-SF | 40,3 | 4930 | 122 |
| INP310LED-1200-J4-1-..-SF | 34,8 | 4440 | 128 |
| INP310LED-1200-J4-2-..-SF | 40,4 | 5019 | 124 |
| INP310LED-1200-J4-3-..-SF | 48,6 | 6225 | 128 |
| INP310LED-1200-B4-1-..-SF | 65,0 | 8722 | 134 |
| INP310LED-1200-B4-2-..-SF | 75,3 | 9860 | 131 |
| INP310LED-1500-J4M2-1-..-SF | 42,7 | 5550 | 130 |
| INP310LED-1500-J4M2-3-..-SF | 61,0 | 7781 | 128 |
Electrical Features
- Connection terminals: 2,5 mm²; 4,0 mm² - optionally
- Input voltage: 220-240V 50-60Hz, 176-280V 0Hz
- Light source: LED modules with ENEC certificate
- Power factor: >0,97
- Cable inlets: Ø20, wire range Ø8-13 mm
- Overvoltage protection: L-N: 1kV, 10kV - optionally, L-PE: 2kV
Mechanical Features
- Housing: powder coated galvanized or optional stainless steel
- Diffuser: polycarbonate OPAL (Dx Bright White)
- Ingress protection: IP65
- Protection class: I or III
- Mounting: 4 holes, easy mounting
Work Parameters
- Ambient Temperatures: -30°C to +55°C
- Lifetime: >70.000h L80 B10 or >100.000h L70 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K
- 3000K - optionally
- 5000K - optionally
- 6500K - optionally
