INS240LED
Zone :
Description

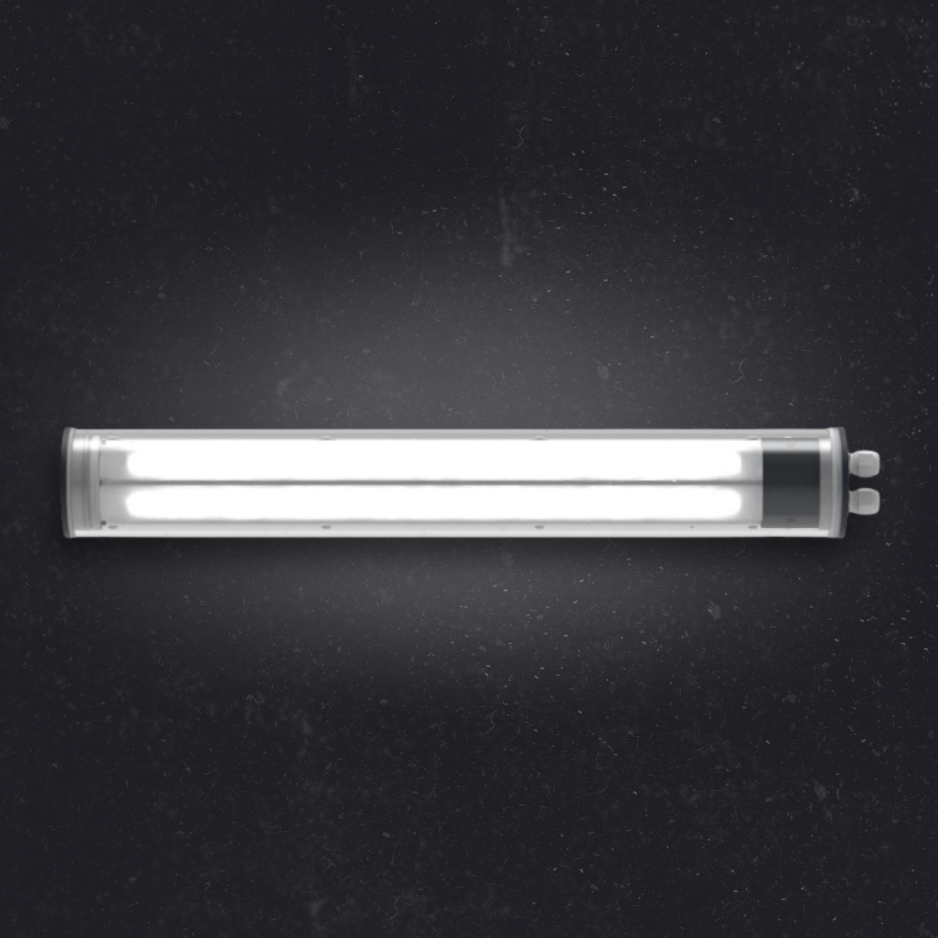

Tubular waterproof light fitting with LED modules. The light fitting has very high ingress protection class – IP69K. The diffuser is made of borosilicate glass, polycarbonate or polymethyl methacrylate. Additionaly the light fitting is equipped with special optics which provides the propagation of light.
Downloads
No downloads available
Types Comparison
| Code | Ambient Temperature | Lumen Output |
| INS240LED-0600-J2-1 | PC:-40°C to +55 °C, PMMA:-35°C to +50 °C | WB:2677,NB:2691 |
| INS240LED-0600-J2-3 | PC:-40°C to +50 °C, PMMA:-35°C to +50 °C | WB:3711,NB:3730 |
| INS240LED-0600-B2-1 | PC:-40°C to +45 °C, PMMA:-35°C to +45 °C | WB:5179NB:5205, |
| INS240LED-1200-J2-1 | PC:-40°C to +60 °C, PMMA:-35°C to +505 °C | WB:2714,NB:2728 |
| INS240LED-1200-J2-3 | PC:-40°C to +55 °C, PMMA:-35°C to +50 °C | WB:3783,NB3802 |
| INS240LED-1200-B2-1 | PC:-40°C to +55 °C, PMMA:-35°C to +50 °C | WB:5137,NB:5163 |
| INS240LED-1200-B2-3 | PC:-40°C to +45 °C, PMMA:-35°C to +50 °C | WB:7111,NB:7147 |
| INS240LED-1200-J4-1 | PC:-40°C to +55 °C, PMMA:-35°C to +50 °C | WB:5371,NB:5398 |
| INS240LED-1200-J4-3 | PC:-40°C to +45 °C, PMMA:-35°C to +45 °C | WB:7453,NB:7491 |
| INS240LED-1200-B4-0 | PC:-40°C to +40 °C, PMMA:-35°C to +40 °C | WB:9632,NB:9824 |
Photometrical Parameters
Color Temperature: 3000k 4000k, 4500k, 5000k, 6500kWork Parameters
Ambient Temperatures: PC:-40°C to +45 °C, PMMA:-35°C to +45 °CLifetime: >70.000h L80 B10 >100.000h L70 B10
Mechanical Features
Housing: Tube: PC,PMMA, End-cap: SS(316) Aluminum type 2017ADiffuser: Aluminum type 2017A
Impact Strength : IK11+
