Concept Blue
Zone :
Description

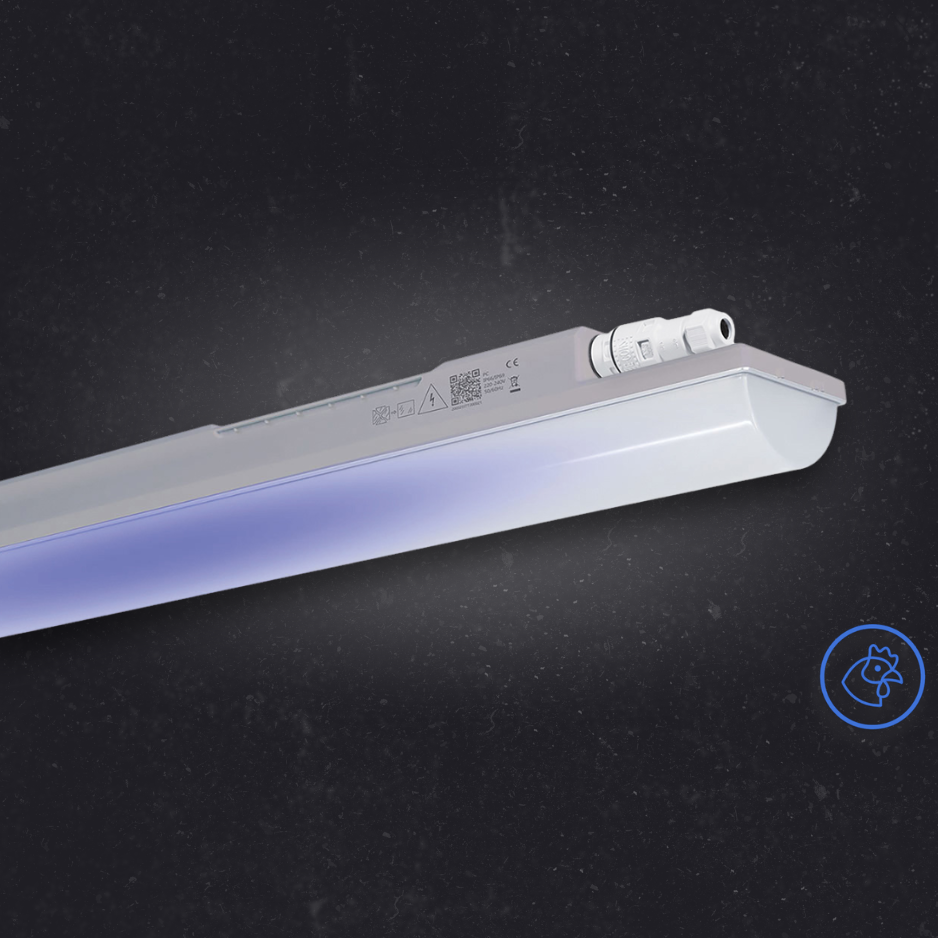

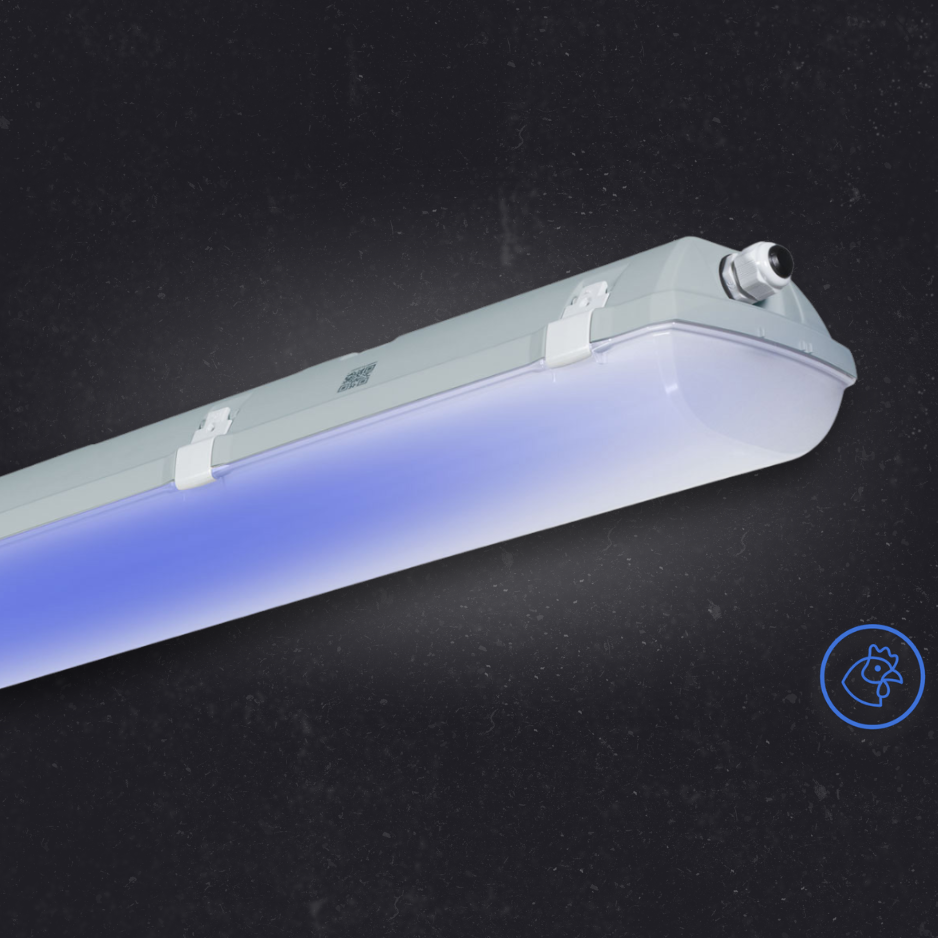

Light fixtures fitted with our special blue light producing LED module are primarily designed to be used in poultry farms. The benefit of this specific colour is it calms the poultry and suppresses aggressive behavior. Our INNOVA, FUTURA, and PRIMA-range luminaires may be fitted with this module.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Wattage |
Luminous Flux |
Efficiency (lm/W) |
|---|---|---|---|
| PRIMA 1.4ft ABS 6400/840 BLUE | 36,1 | 5690 | 158 |
| PRIMA 1.5ft ABS 8000/840 BLUE | 44,3 | 7240 | 163 |
| INNOVA 1.4ft ABS 6400/840 BLUE | 36,1 | 5690 | 158 |
| INNOVA 1.5ft ABS 8000/840 BLUE | 44,3 | 7240 | 163 |
| FUTURA 2.4ft ABS 8800/840 BLUE | 49,7 | 8170 | 164 |
| FUTURA 2.5ft ABS 110000/840 BLUE | 71,1 | 11570 | 163 |
Electrical Features
- Connection: Screwless five-pole terminal block, external, 5-pole, 1.5 mm2 conductor cross-section (2.5 mm2 available on demand)
- Cable glands: PG 13.5 thread, External terminal block, 3 or 5 poles, 1.5 or 2.5 mm2 wire cross-section
- UGR: 23,5 - 24,7
Mechanical Features
- Housing: Dark grey ABS
- Diffuser: Translucent ABS, translucent acrylic
- Ingress protection: IP66/IP69
- Impact strength: IK10
- Mounting: Suitable for suspended, ceiling, wall, and surface mounting
Work Parameters
- Ambient Temperatures: -25°C to +45°C
- Lifetime: 50.000h L90 B10
Photometrical Parameters
- CRI: >80 standard
- Colour temperature: 4000K
