INS242LED

Description

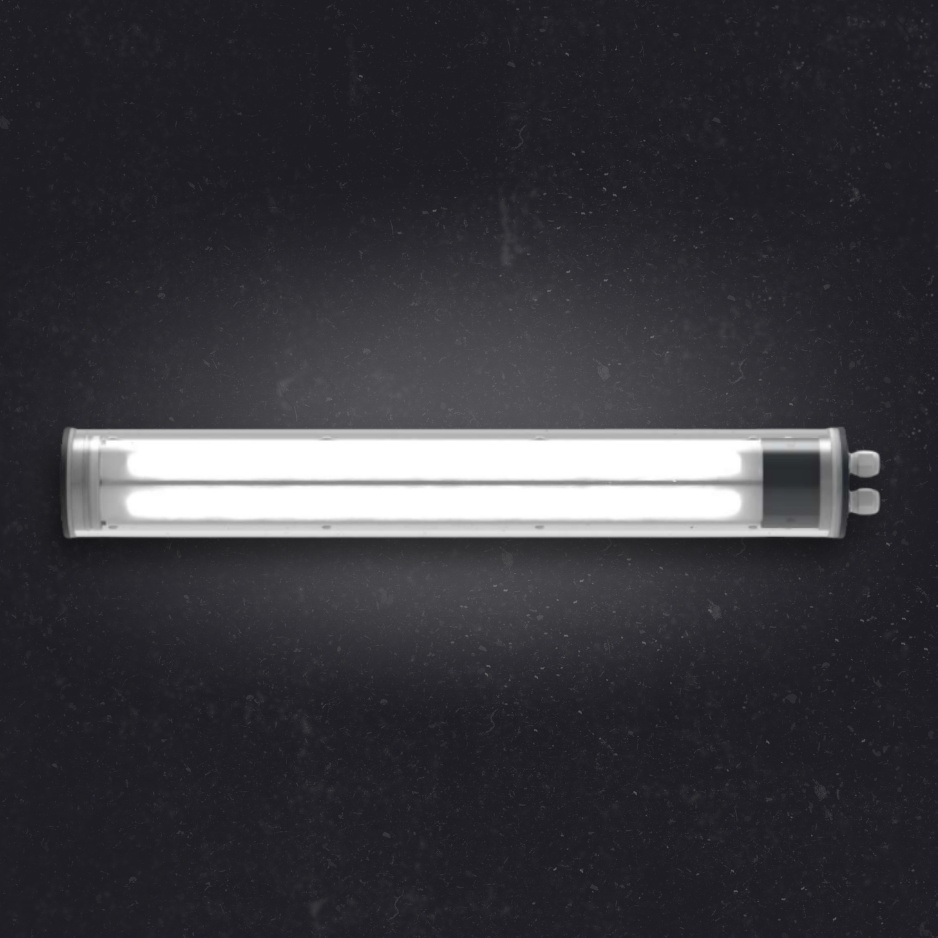

The INS242LED is a tubular luminaire with LED modules for hazardous environments. With borosilicate glass or polycarbonate housing, it ensures durability. Its IP69K protection provides defense against water and dust. Special optics optimize light distribution. Choose INS242LED for reliability in tough conditions.

LDT CE Datasheet User Manual

Request A Quote Ask About The Product

Types Comparison

Please see datasheet for complete table with additional information.

Code	Luminous Flux	Wattage	Efficiency (lm/W)
INS242LED-0600-J1-3	1826	13,8	132
INS242LED-0600-J2-1	2622	18,5	142
INS242LED-1200-J2-3	3652	26,4	138
INS242LED-1200-B2-1	5243	35,7	147
INS242LED-1200-B2-3	7305	51,6	142
INS242LED-1200-B4-1	10487	70,4	149

Electrical Features

Connection terminals: 2,5mm2
Power Supply: 230V, 0/50-60Hz | 24 VDC
Source of light: Certified LED modules
Power factor: >0,95
Cable Entry: Ø20
Overvoltage protection: 2kV

Mechanical Features

Tube: Borosilicate glass, polycarbonate, polymethyl methacrylate
End-cap: Stainless steel, stainless steel type 316, aluminium
Ingress protection: IP66/IP69K
Protection class: I, III
Mounting: Different mountings available

Work Parameters

Ambient Temperatures: -25°C to +45°C
Lifetime: >70.000h L80 B10

Photometrical Parameters

CRI: >80
Colour temperature: 4000K; on request 5000K or 6500K
