Overview

INS390LED- DUAL

INS390LED- DUAL

Description

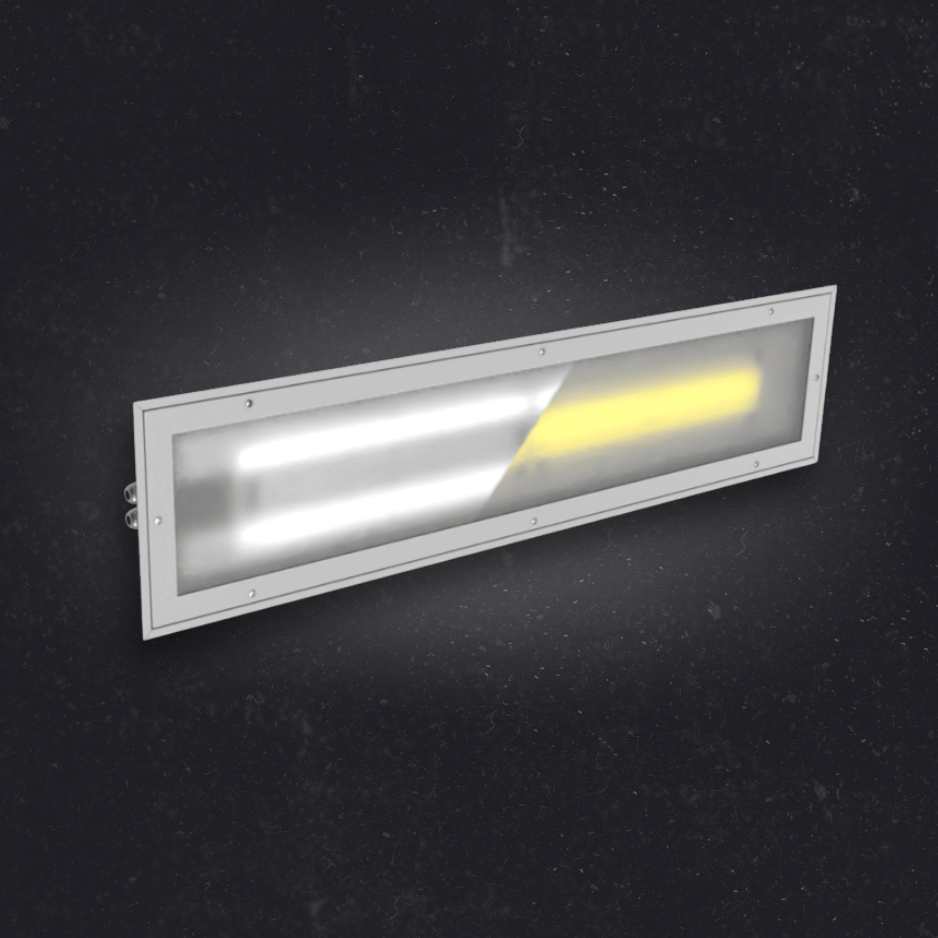

Industrial light fitting with LED modules for suspended coffered ceilings or to be mounted on the ceiling surface. The housing is made of powder coated stainless steel.

Request A Quote Ask About The Product

Types Comparison

White Mode:

Type of the Luminaire	Luminous Flux [lm]	Power Consumption [W]	Efficiency [lm/W]	Ambient Temperature [°C]	Weight [kg]
INS390LED-0600-X4Y3-1	4830	35	138	-40 ÷ +50	~13.5
INS390LED-0600-X4Y3-3	6600	47	140	-40 ÷ +50	~13.5
INS390LED-1200-X4Y4-1	4720	35	135	-40 ÷ +50	~17.9
INS390LED-1200-X4Y4-3	6450	47	137	-40 ÷ +50	~17.9

Yellow Mode:

Type of the Luminaire	Luminous Flux [lm]	Power Consumption [W]	Efficiency [lm/W]	Ambient Temperature [°C]
INS390LED-0600-X4Y3-1	4750	43	110	-40 ÷ +50
INS390LED-0600-X4Y3-3	4750	43	110	-40 ÷ +50
INS390LED-1200-X4Y4-1	4570	41	112	-40 ÷ +50
INS390LED-1200-X4Y4-3	4570	41	112	-40 ÷ +50

Electrical Parameters

Parameter	Specification
Connection terminals	2.5 mm²
Input voltage	35E: 220–240V 50–60 Hz
Input voltage	220–240V 0Hz
Input voltage	34E: 220–240V 50–60 Hz
Light source	Specialistic LED modules
Power factor	0.97
Cable entries	Ø20 (wire 6–13 mm) / Ø25 optional (wire 10–17 mm)

Work Parameters

Parameter	Specification
Ambient temperature	From −40°C to +50°C
Lifetime	70,000 h L80 B10
Lifetime	100,000 h L70 B10

Mechanical Features

Parameter	Specification
Material	Powder-coated stainless steel (NIRO)
Diffuser Material	Tempered glass (GL), Polycarbonate (PC)
Ingress protection	IP65
Protection class	I
Installation	Surface-mounted (SF)
Installation	Recessed (RG)
Installation	Clip-in (CLIP)
Installation	On threaded rods (TR)
Note	Depending on ceiling type
