INV320LED RC
Zone :
Description

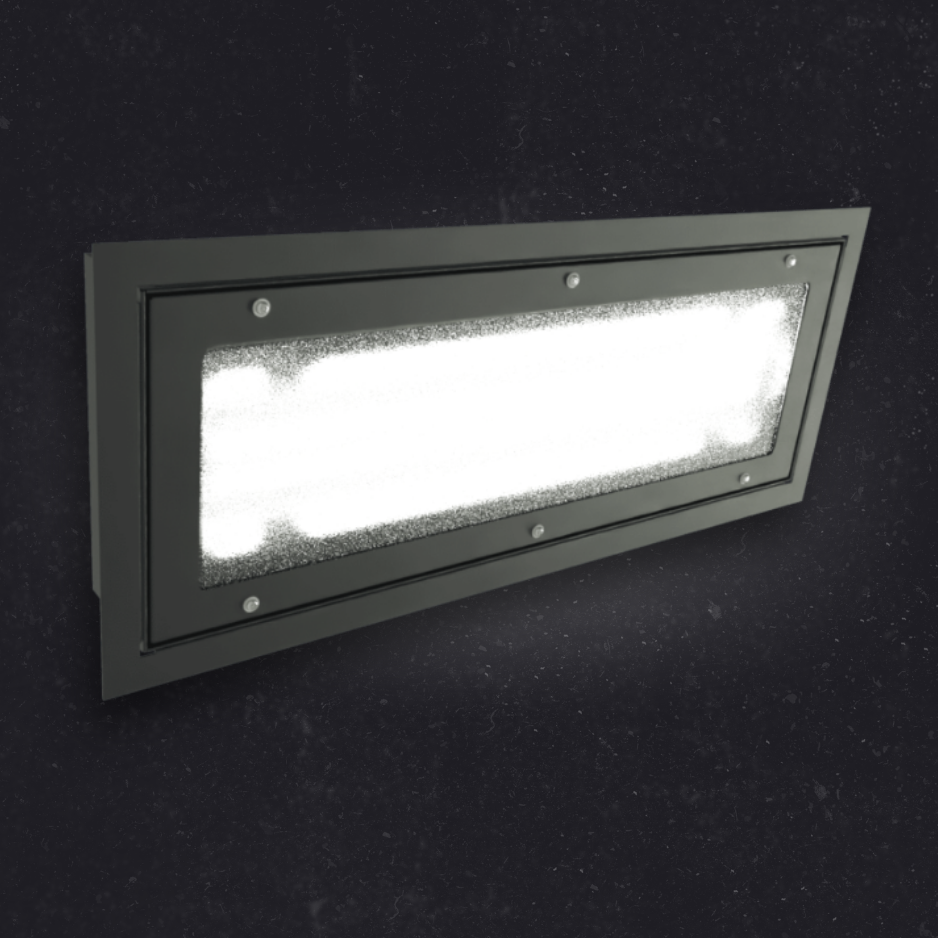

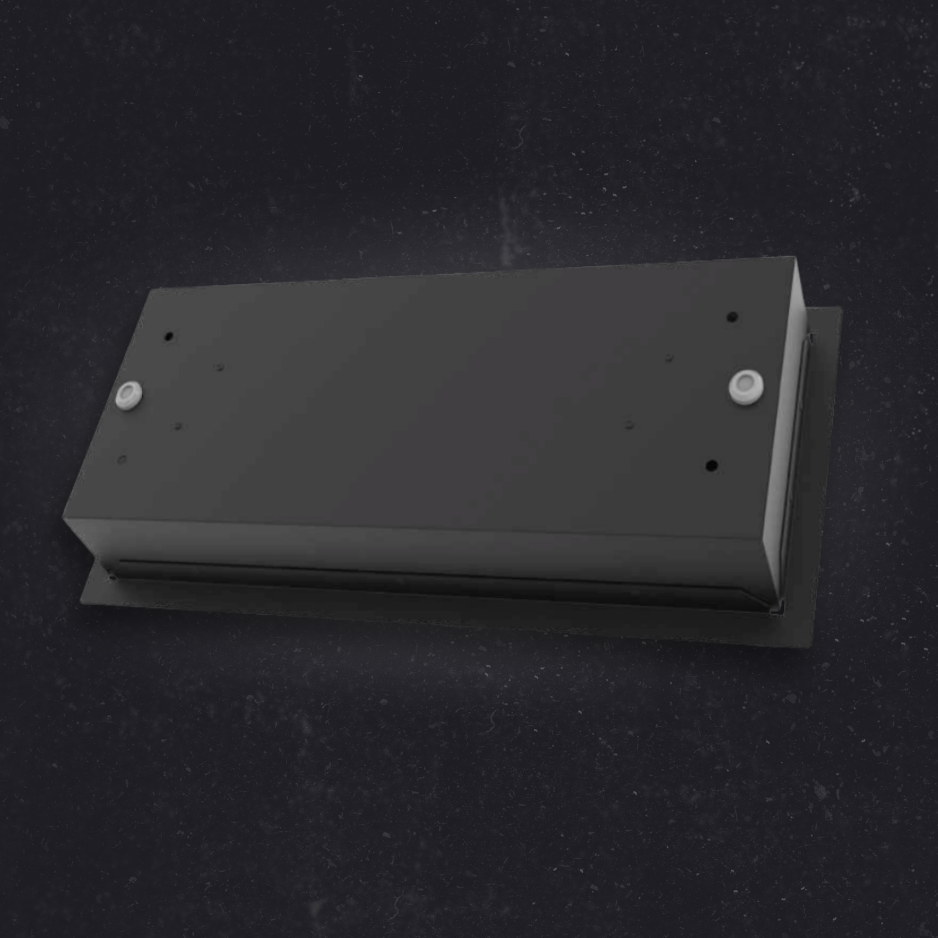

Vandal-proof luminaire with LED modules, designed for installation in a recess in the ceiling or wall. It is characterized by a very high degree of impact resistance (IK11+). The housing is made of stainless steel, painted with modified powder paint. The lampshade is made of thick prismatic polycarbonate, which ensures its durability, and a special lock prevents access by unauthorized persons. The luminaire has PKP approval no. D/IST/03/2024, CNBOP approval no. 4737/2022, as well as ENEC certificate no. PL BBJ/018/2018/M2
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
Narrow Version
| Code | Wattage | Luminous Flux | Efficiency (lm/W) |
|---|---|---|---|
| INV320LED-1200-J2-1-..-RC | 18,8 | 2140 | 114 |
| INV320LED-1200-J2-3-..-RC | 27,2 | 2766 | 101 |
| INV320LED-1200-B2-1-..-RC | 36,6 | 4280 | 117 |
| Code | Wattage | Luminous Flux | Efficiency (lm/W) |
|---|---|---|---|
| INV320LED-0600-J2-1-..-RC | 18,8 | 2140 | 114 |
| INV320LED-0600-J2-3-..-RC | 27,2 | 2766 | 101 |
| INV320LED-0600-B2-1-..-RC | 36,6 | 4280 | 118 |
| INV320LED-1200-J4-1-..-RC | 36,6 | 4260 | 118 |
| INV320LED-1200-J4-3-..-RC | 53,5 | 5534 | 104 |
| INV320LED-1200-B4-2-..-RC | 83,2 | 9067 | 109 |
Electrical Features
- Connection terminals: 2,5 mm2
- Input voltage: 230V 0/50-60Hz
- Light source: LED modules with ENEC certificate
- Power factor: >0,95
- Cable inlets: 2 x Ø20
- Overvoltage protection: 10kV
Mechanical Features
- Housing: Powder coated stainless steel
- Diffuser: Prismatic polycarbonate
- Ingress protection: IP65
- Impact strength: IK11 + (150J)
- Mounting: 4 holes, easy mounting
Work Parameters
- Ambient Temperatures: -40°C to +45°C
- Lifetime: >50.000h L80 B50
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K
