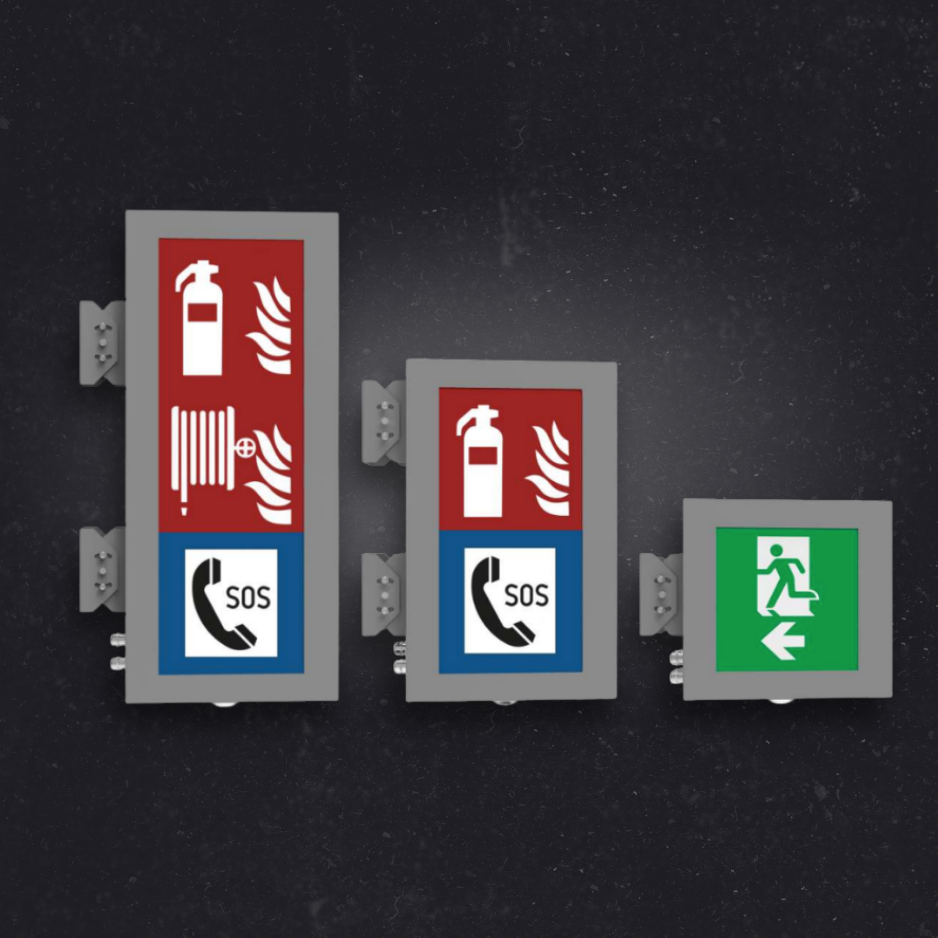

TNL310LED
Zone :
Description

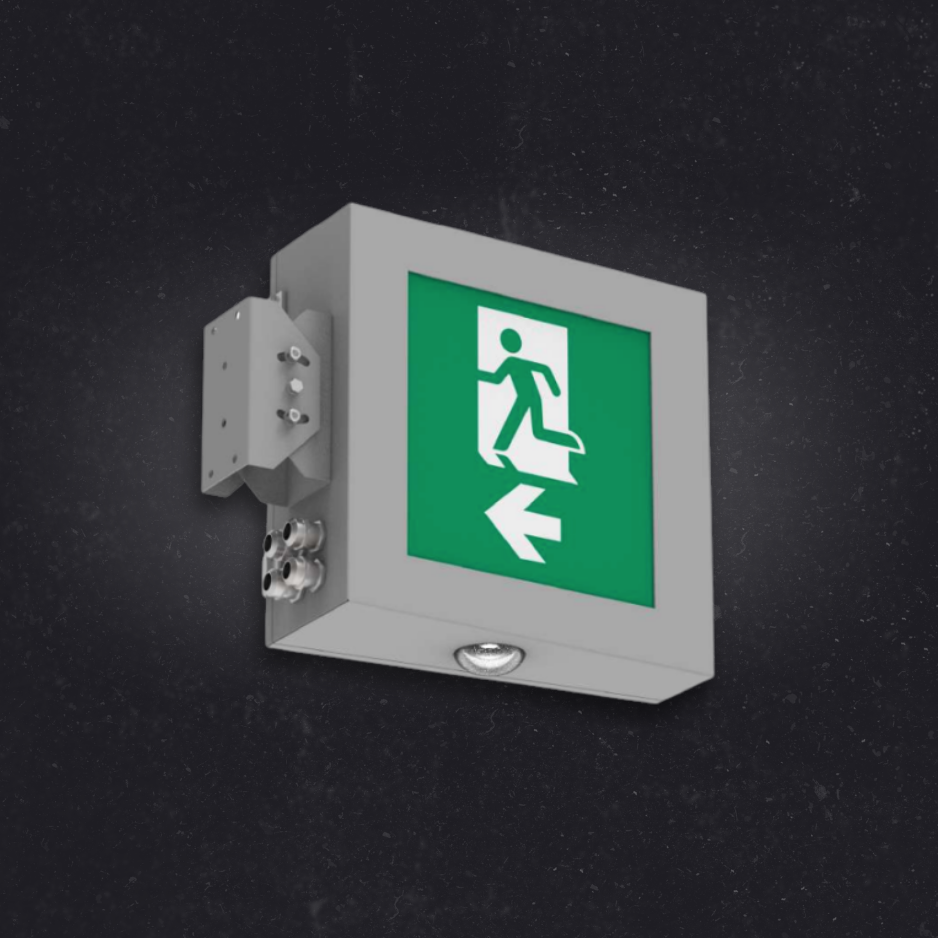

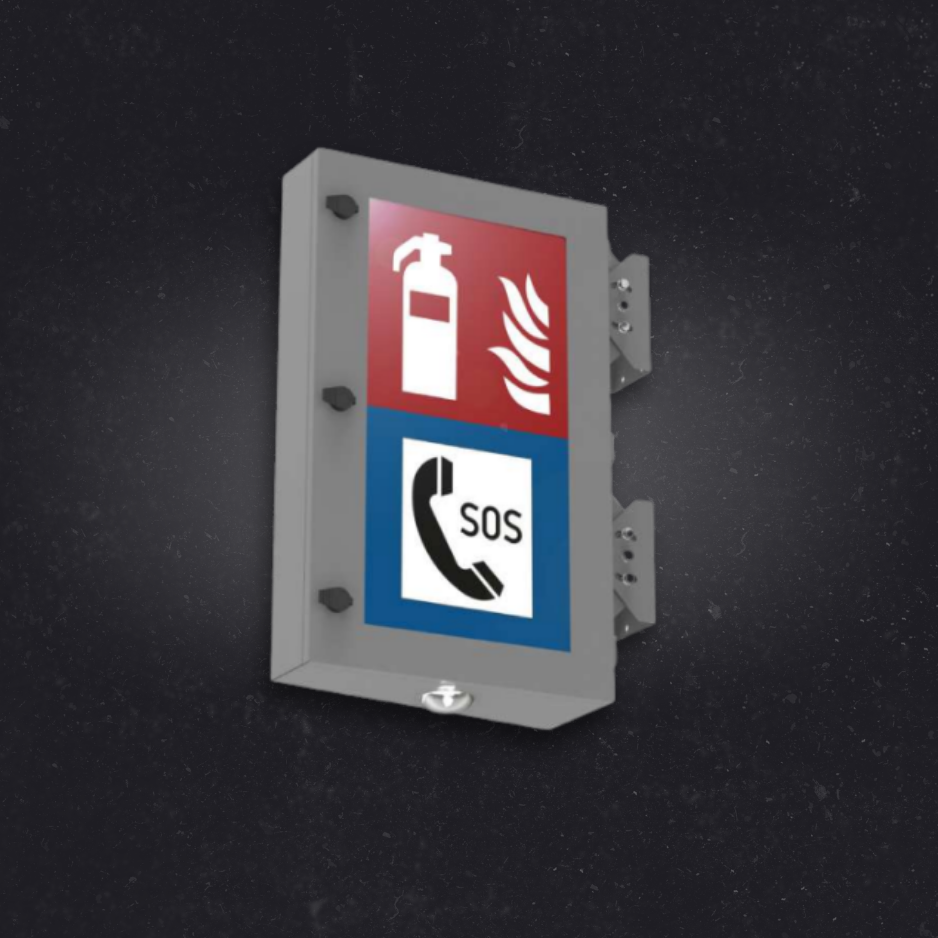

Evacuation luminaire for car tunnels. Designed to illuminate a pictogram with information about the evacuation exit or another type of emergency equipment in the tunnel. It also has a stroboscopic module that helps find the evacuation exit, even in conditions of heavy smoke. The housing is made of stainless steel, while the lampshade is made of tempered glass. The luminaire has CNBOP approval no. 4376/2021
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Wattage | Pictogram Luminance (cd/m²) |
|---|---|---|
| TNL310LED-...-0300 | 24 | >200 |
| TNL310LED-...-0600 | 46,5 | >200 |
| TNL310LED-...-0900 | 68,5 | >200 |
- PN-EN 13032-4:2015-09;
- PN-EN 60598-1:2015-04;
- PN-EN-54-23_2010P;
- PN-EN-1838:2013-11E;
- DIN 4844-1 2012.
Electrical Features
- Input voltage: 230V 0/50-60Hz | 230VDC
- Light source: LED modules with ENEC certificate
- Cable glands: max 4 x M25 lub 2 x M32
- Connection terminals: 7 x 4mm2
- Overvoltage protection: 6kV
- Control system: Integrated DALI driver
Mechanical Features
- Housing: Stainless steel
- Diffuser: Tempered glass
- Ingress protection: IP65
- Protection class: I
- Mounting: With bracket
- Access: With key
Photometrical Parameters
- CRI: >80
- Colour temperature: 2700K (SOS), 4000K (EXIT)
Work Parameters
- Ambient Temperatures: -25°C to +45°C
- Lifetime: 70.000h L80 B10
