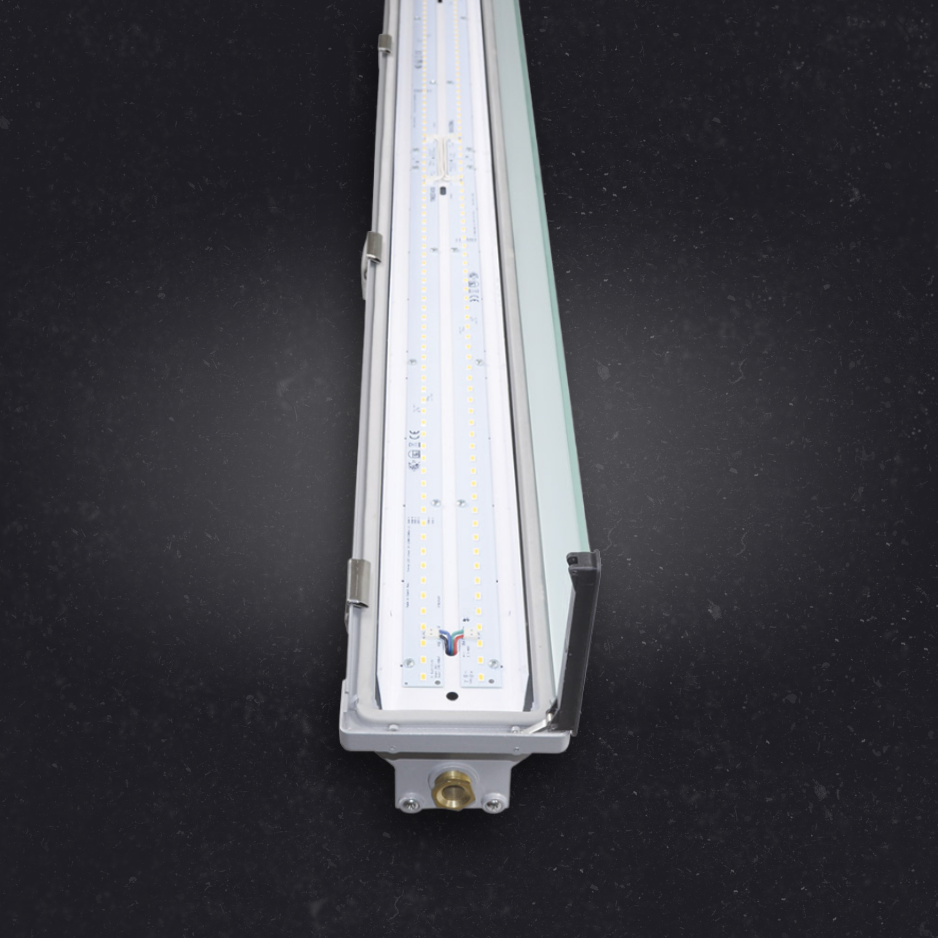

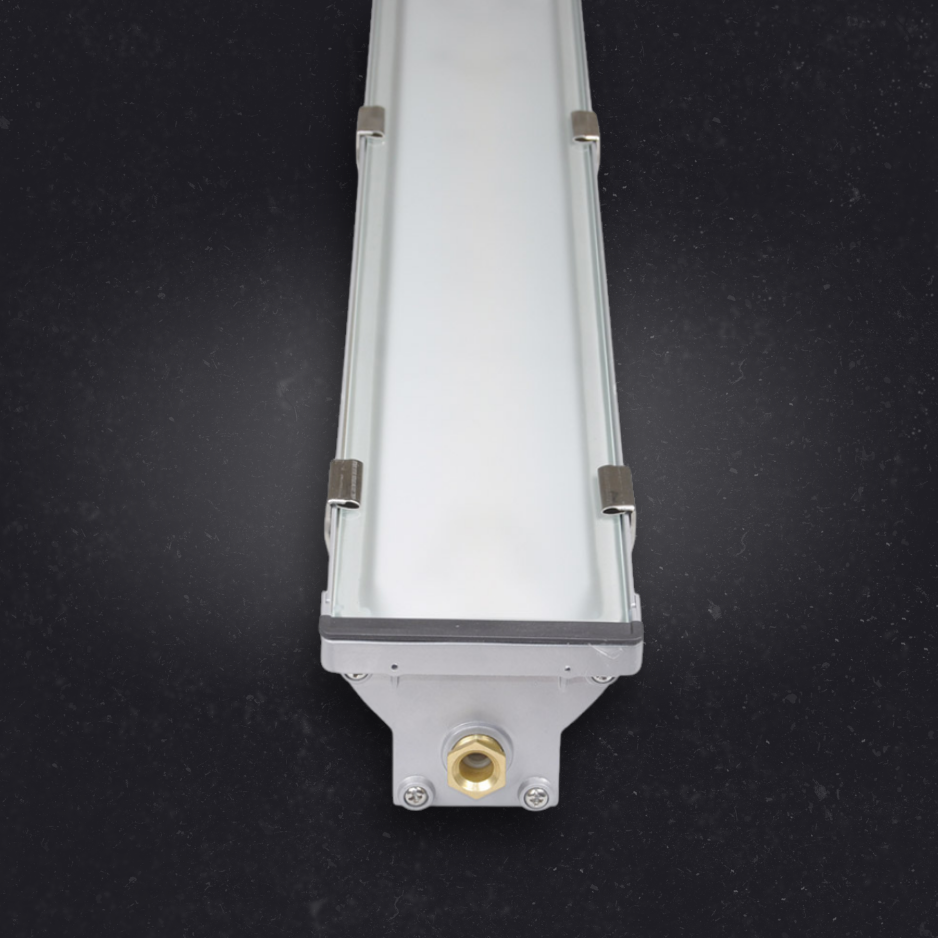

Alumax LED Max
Zone :
Description
The light fitting is suitable for indoor and outdoor with roof with extreme ambient temperatures from (-40 °C to +75 °C). The fixture is designed especially for refrigeration, cold stores, bakeries, heating plants, metallurgical lines, glass factories and other premises without the danger of explosion of gases, dusts and flammable vapors.The light fitting is resistant to deformation, dust, spouting water and chemically aggressive environment.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Wattage |
Lumens |
Efficiency (lm/W) |
|---|---|---|---|
| Alumax LED 1.5ft MAX 4000/840 | 23,3 | 2930 | 126 |
| Alumax LED 1.5ft MAX 5500/840 | 31,9 | 4060 | 127 |
| Alumax LED 2.4ft MAX 6400/840 | 36,3 | 4680 | 129 |
| Alumax LED 2.4ft MAX 8800/840 | 49,7 | 6520 | 131 |
| Alumax LED 2.5ft MAX 8000/840 | 44,4 | 5830 | 131 |
| Alumax LED 2.5ft MAX 110000/840 | 71,1 | 9230 | 130 |
Electrical Features
- Electric equipment: LED modules, current driver
- Cable glands: Brass M18 x 1,5
- Certification: CE
Mechanical Features
- Housing: Grey aluminium profile, surface treated with powder-coated colour
- Diffuser: Satinated tempered safety glass
- Ingress protection: IP66
- Impact strength: IK10
- Mounting: Suitable for suspended, ceiling, wall, and surface mounting via stainless sheet suspension brackets
Work Parameters
- Ambient Temperatures: -40°C to +70°C
- Lifetime: 50.000h L80 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K; on request 3000K, 5000K
