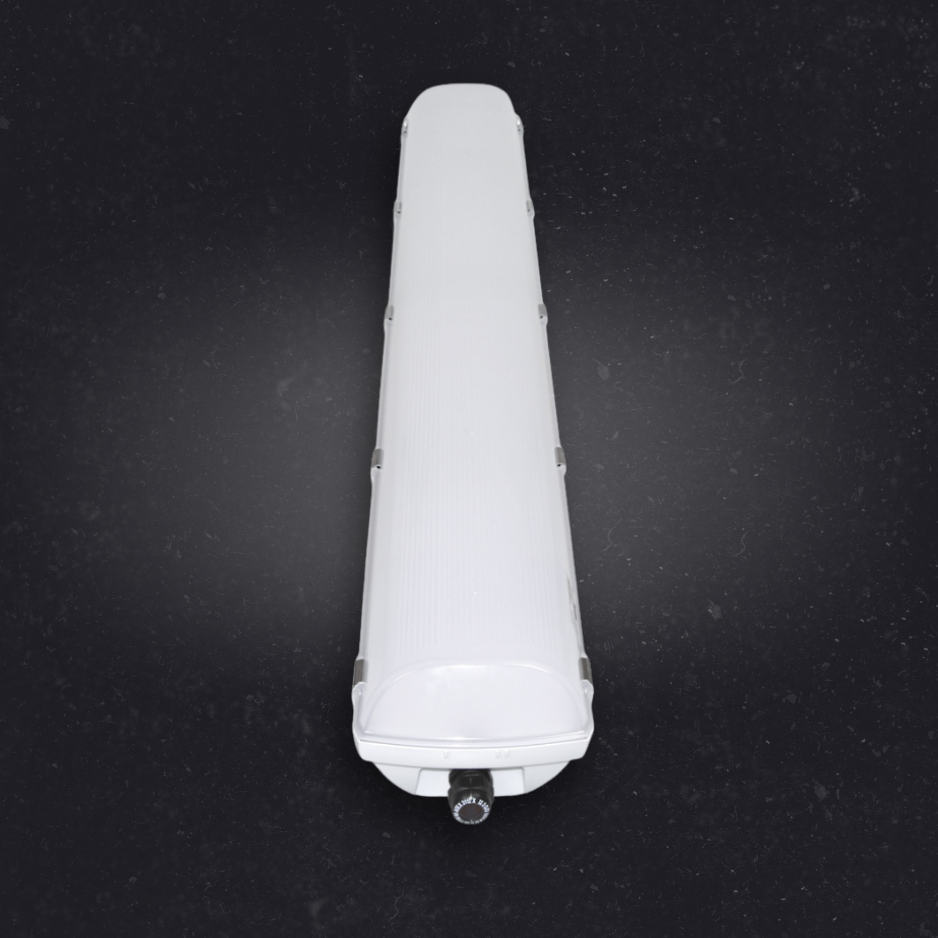

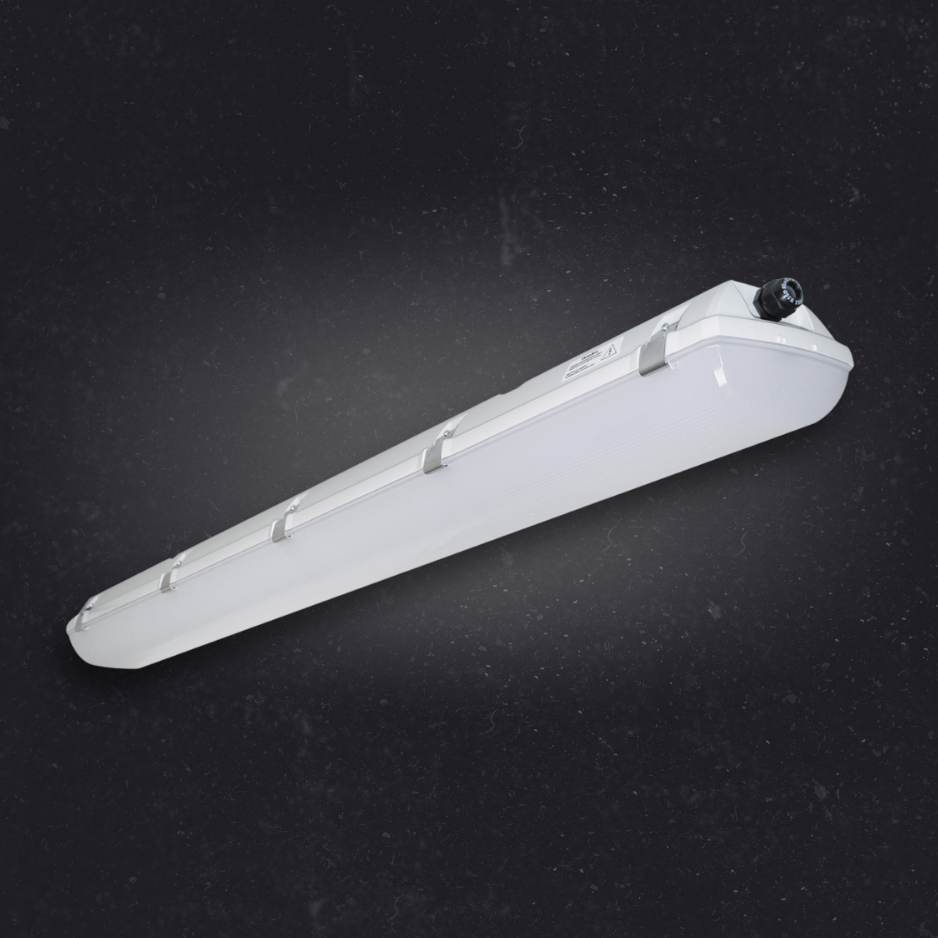

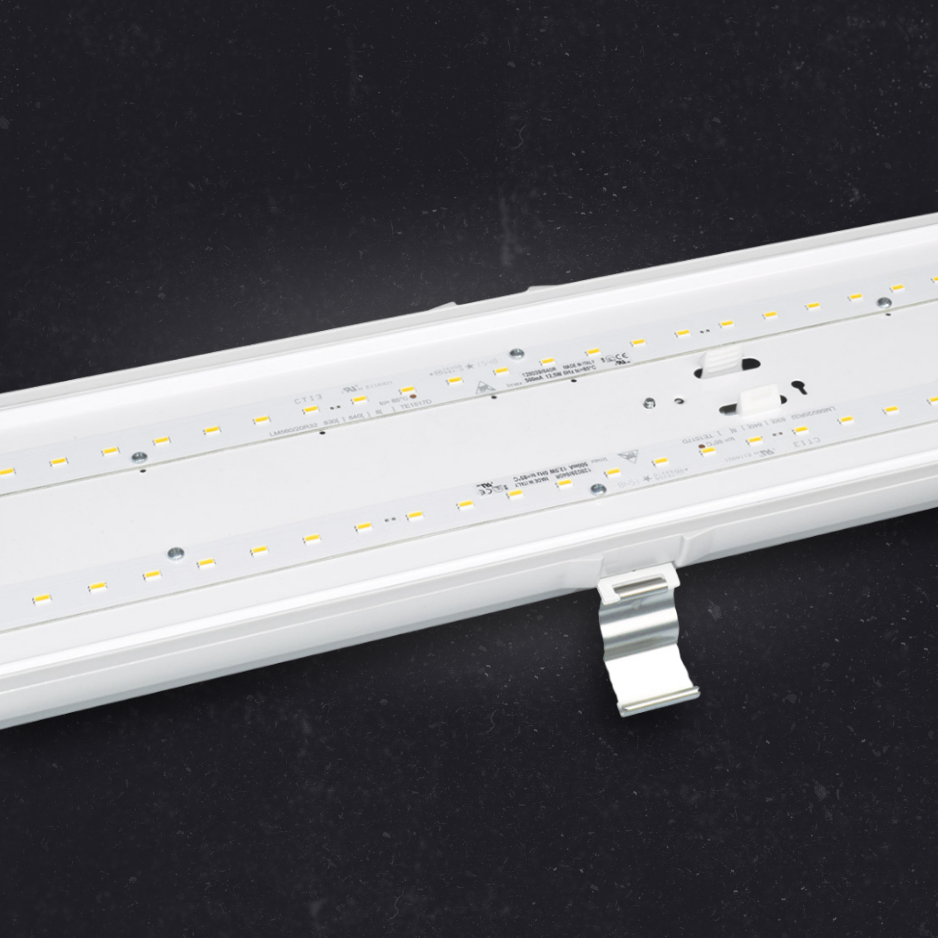

Prima LED Ex
Zone :
Description
II 3G Ex nR IIC T6 Gc
II 3D Ex tc IIIC T70°C Dc
The light fitting is suitable for the environment with a danger of explosion of gas, dust and combustible fumes. The light fittings meet the requirements of Government Decree 116/2016 Coll. and European Community Directive No.2014/34/EU.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Wattage | Efficiency (lm/W) | Lumens (lm) |
|---|---|---|---|
| Prima LED Ex 1.2ft PCc 1600/840 | 11 | 154 | 1690 |
| Prima LED Ex 1.2ft PCc 2200/840 | 16 | 147 | 2350 |
| Prima LED Ex 1.4ft PCc 3200/840 | 23 | 145 | 3330 |
| Prima LED Ex 1.4ft PCc 4400/840 | 31 | 150 | 4660 |
| Prima LED Ex 1.4ft PCc 6400/840 | 44 | 153 | 6710 |
| Prima LED Ex 1.5ft PCc 4000/840 | 27 | 154 | 4150 |
| Prima LED Ex 1.5ft PCc 5500/840 | 38 | 153 | 5810 |
| Prima LED Ex 1.5ft PCc 8000/840 | 53 | 157 | 8300 |
| Prima LED Ex 2.2ft PCc 3200/840 | 22 | 151 | 3330 |
| Prima LED Ex 2.2ft PCc 4400/840 | 31 | 152 | 4710 |
| Prima LED Ex 2.4ft PCc 6400/840 | 43 | 156 | 6710 |
| Prima LED Ex 2.4ft PCc 8800/840 | 60 | 156 | 9340 |
| Prima LED Ex 2.4ft PCc 12800/840 | 85 | 157 | 13330 |
| Prima LED Ex 2.5ft PCc 8000/840 | 54 | 154 | 8310 |
| Prima LED Ex 2.5ft PCc 11000/840 | 71 | 156 | 11080 |
| Prima LED Ex 2.5ft PCc 16000/840 | 106 | 156 | 16520 |
| Prima LED Ex 2.5ft PCc 20000/840 | 118 | 150 | 17660 |
Photometrical Parameters
- Colour temperature: 4000K
- CRI: >80
Mechanical Features
- Housing: Grey polycarbonate
- Diffuser: Translucent polycarbonate [PC], UV stable, impact-resistant
- Light fitting protection: IP66

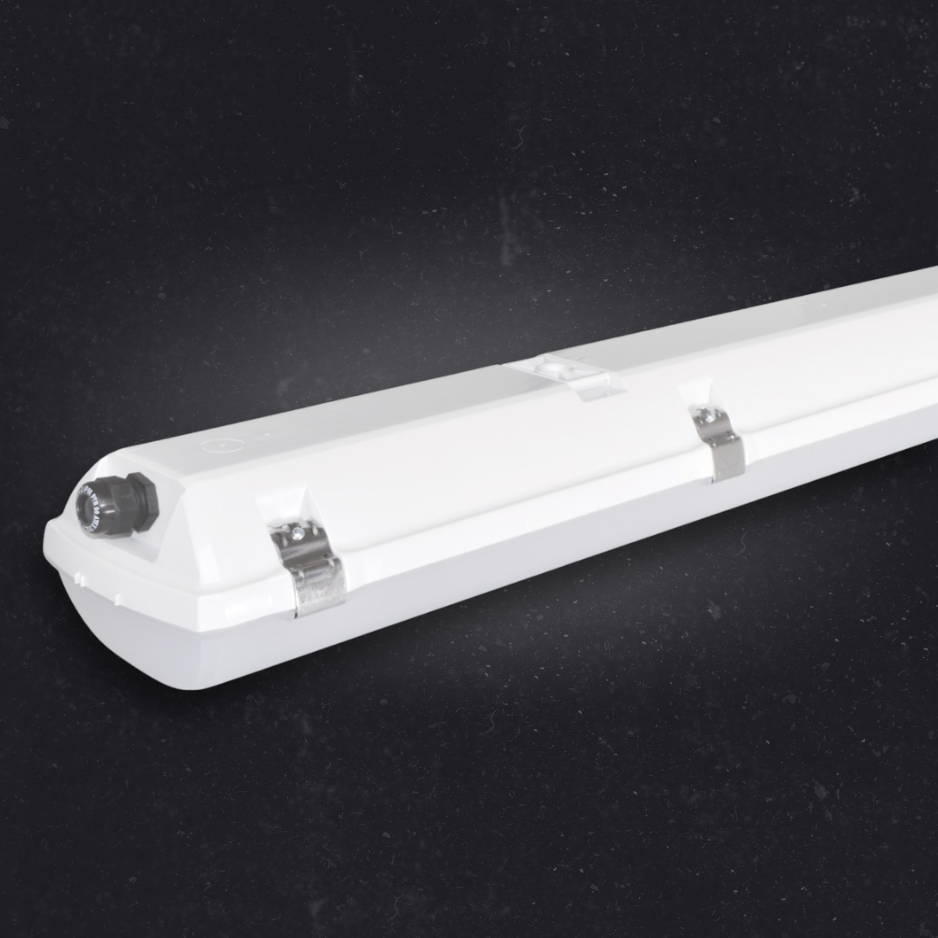

- Mounting: Directly to a ceiling or a wall with the use of screws and stainless brackets, suspension with the use of stainless hooks, or attachment with the use of side hangers to the wall (not included in accessories)
- Reflector: Steel sheet
Work Parameters
- Ambient Temperatures: -25°C to +60°C (check types comparison)
- Lifetime: 50.000h L90 B10
