Concept Red
Zone :
Description

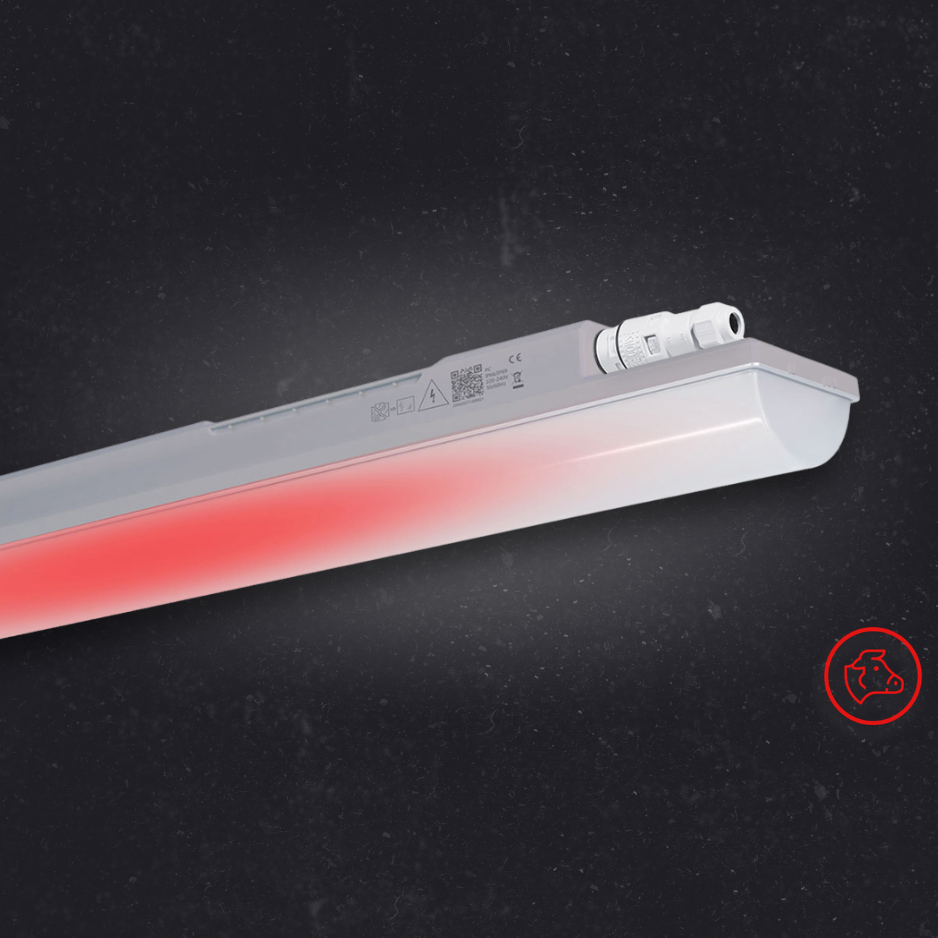

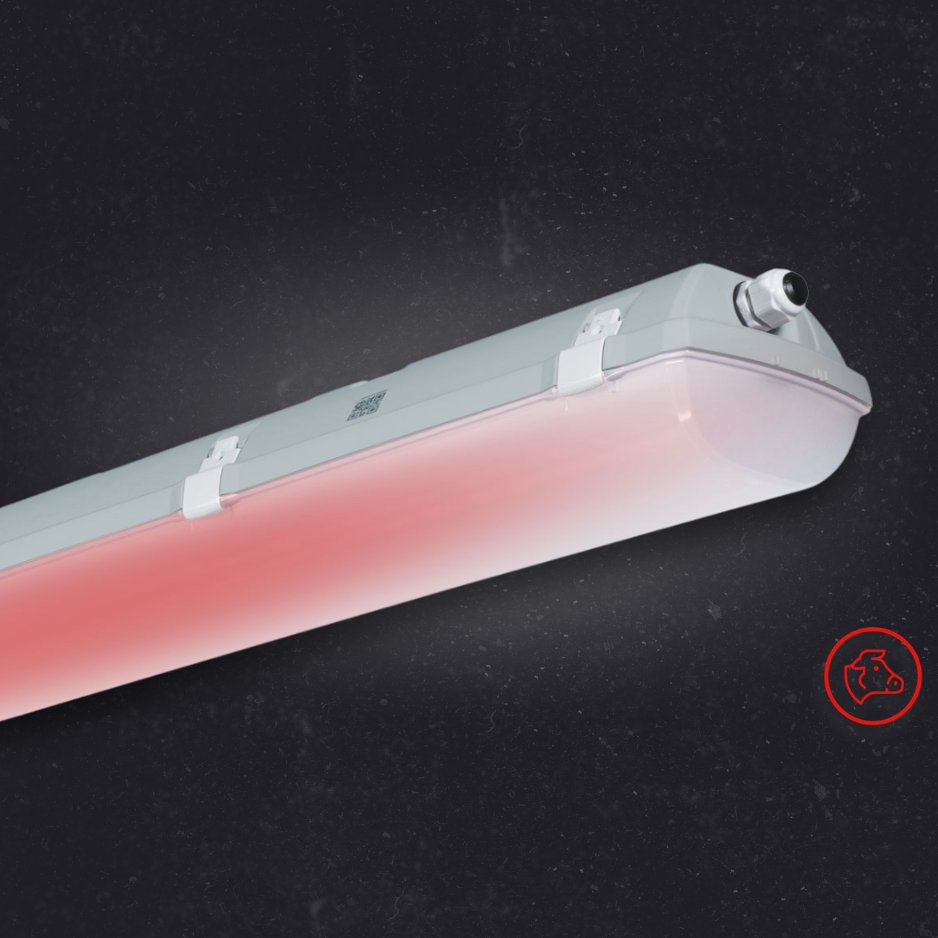

Cows barely detect a red light and therefore it is a perfect solution for illumination of barns. This solution saves you money and allows you to go on your rounds or carry out work without disturbing the cows. It can be integrated into our INNOVA, FUTURA and PRIMA lighting.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Wattage |
Luminous Flux |
Efficiency (lm/W) |
|---|---|---|---|
| PRIMA 1.4ft ABS 6400/840 RED | 36,1 | 5690 | 158 |
| PRIMA 1.5ft ABS 8000/840 RED | 44,3 | 7240 | 163 |
| INNOVA 1.4ft ABS 6400/840 RED | 36,1 | 5690 | 158 |
| INNOVA 1.5ft ABS 8000/840 RED | 44,3 | 7240 | 163 |
| FUTURA 2.4ft ABS 8800/840 RED | 49,7 | 7650 | 154 |
| FUTURA 2.5ft ABS 110000/840 RED | 71,1 | 10830 | 152 |
Electrical Features
- Connection: screwless five-pole terminal block, external, 5-pole, 1.5 mm2 conductor cross-section (2.5 mm2 available on demand)
- Cable glands: PG 13.5 thread, External terminal block, 3 or 5 poles, 1.5 or 2.5 mm2 wire cross-section
- UGR: 23,1 - 24,7
Mechanical Features
- Housing: Dark grey ABS
- Diffuser: Translucent ABS, translucent acrylic
- Ingress protection: IP66/IP69
- Impact strength: IK10
- Mounting: Suitable for suspended, ceiling, wall, and surface mounting
Work Parameters
- Ambient Temperatures: -25°C to +45°C
- Lifetime: 50.000h L90 B10
Photometrical Parameters
- CRI: >80 standard
- Colour temperature: 4000K
