EXF300LED
Zone :
Description
Ex II 2G Ex eb mb op is IIC T5 Gb
Ex II 2D Ex tb op is IIIC T55°C Db or T70°C Db

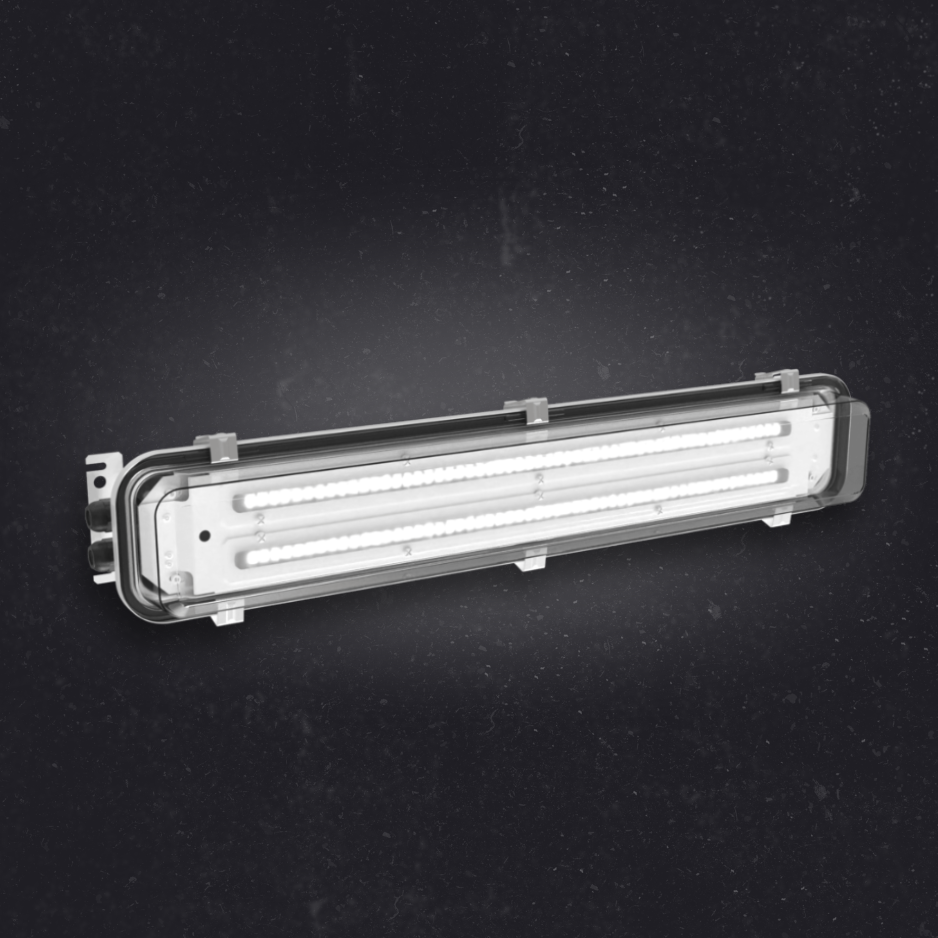

Explosion-proof lighting fixture with sealed LED modules. Designed for use in zones 1,21 and 2,22 of explosion hazard of gases, vapors and mists of flammable liquids with air, as well as flammable dust and fibers. The housing of the fixture is made of stainless steel painted with modified powder paint, while the diffuser is made of polycarbonate. The fixture has the ATEX KDB 15ATEX0049X and IECEx KDB 20.0003X certificates.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Wattage |
Efficiency (lm/W) |
Max. Ambient Temp. (°C) |
|---|---|---|---|
| EXF300LED-0600-F1 | 21,2 | 96 | +45 |
| EXF300LED-0600-FX2 | 38,6 | 112 | +45 |
| EXF300LED-1200-F2 | 38,6 | 106 | +45 |
| EXF300LED-1200-FX4 | 78,1 | 111 | +45 |
Electrical Features
- Connection terminals: 2,5mm2
- Input voltage: 110-254V 50-60 Hz, 220-250V 0Hz
- Light source: Intrinsically safe LED modules
- Power factor: >0,97
- Cable inlets: Ø20
- Overvoltage protection: 2kV
Mechanical Features
- Housing: Power-coated stainless steel
- Diffuser: UV-stabilised polycarbonate
- Ingress protection: IP67
- Protection class: I
- Mounting: on the surface or with connections
Work Parameters
- Ambient Temperatures: -40°C to +60°C
- Lifetime: >70.000h L80 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000k, 6500K - optional
