EXF400LED
Zone :
Description
Ex II 2G Ex eb mb op is IIC T5 Gb
Ex II 2D Ex tb op is IIIC T85°C Db

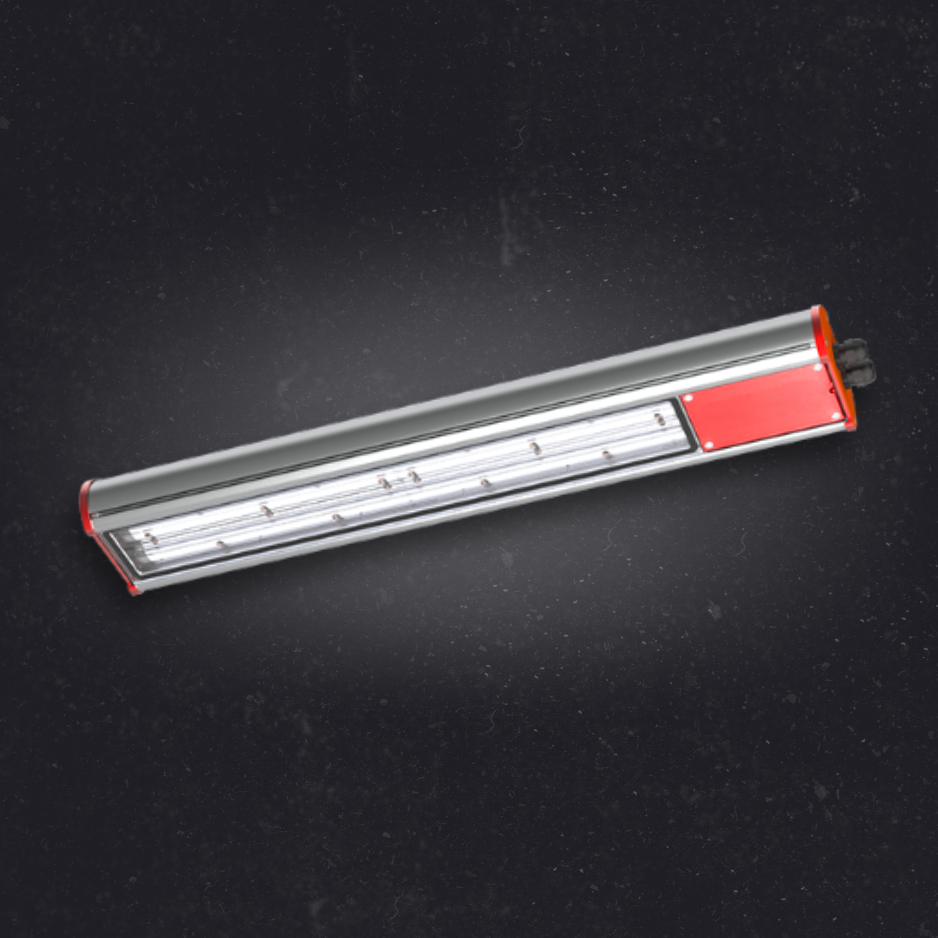

Explosion-proof lighting fixture with LED modules. Designed for use in zones 1,21&2,22 of explosion hazard of gases, vapors and mists of flammable liquids with air, as well as flammable dust and fibers. The housing is made of aluminum, and the lampshade is made of polycarbonate or tempered glass. Optional version with adaptation to the central battery ZB or DALI control system, as well as with three-phase power supply 3F. The fixture has the JSHP 22 ATEX 0022X certificate
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Wattage | Efficiency (lm/W) | Ambient Temp. (°C) |
|---|---|---|---|
| EXF400LED-0600-FB1-1 | 15,7 | 129 | -40 to +55 |
| EXF400LED-0600-FB1-2 | 18,5 | 131 | -40 to +55 |
| EXF400LED-0600-FB1-3 | 21,3 | 133 | -40 to +55 |
| EXF400LED-0600-FB2-1 | 29,5 | 130 | -40 to +55 |
| EXF400LED-0600-FB2-2 | 34,9 | 132 | -40 to +55 |
| EXF400LED-0600-FB2-3 | 40,5 | 132 | -40 to +55 |
| EXF400LED-1200-FB2-1 | 29,7 | 136 | -40 to +55 |
| EXF400LED-1200-FB2-2 | 35,1 | 138 | -40 to +55 |
| EXF400LED-1200-FB2-3 | 40,7 | 139 | -40 to +55 |
| EXF400LED-1200-FB4-1 | 57,5 | 133 | -40 to +55 |
| EXF400LED-1200-FB4-2 | 68,0 | 135 | -40 to +55 |
| EXF400LED-1200-FB4-3 | 79,7 | 134 | -40 to +55 |
Electrical Features
- Connection terminals: 2,5mm2
- Input voltage: 110-254V, 50-60 Hz
- 220-250V, 0 Hz | 220-240V 0,50-60 Hz
- Light source: Intrinsically safe LED modules
- Power factor: >0,95
- Cable inlets: Ø20 or Ø25
- Overvoltage protection: 1kV (L-N), 2kV (I-PE)
Mechanical Features
- Housing: Anodized aluminium
- Diffuser: Tempered glass, polycarbonate
- Ingress protection: IP66/IP67
- Protection class: I
- Accessibility: Revision cover
Work Parameters
- Ambient Temperatures: -40°C to +55°C
- Lifetime: >70.000h L80 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K, 6500K-option
