EXL400LED
Zone :
Description
Ex II 3G Ex ec IIC T6/T5 Gc
Ex II 2D Ex tb IIIC T75°C/T100°C Db

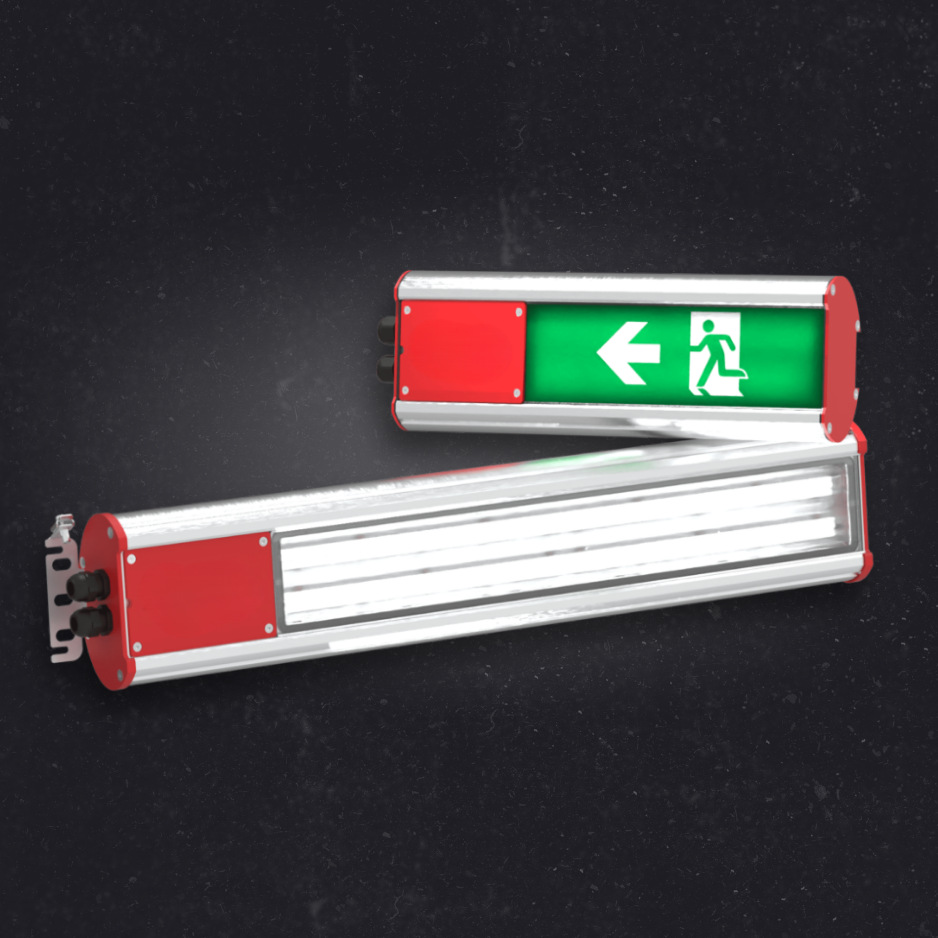

Explosion-proof lighting fixture with LED modules. Designed for use in zone 21&2.22 of explosion hazard of gases, vapors and mists of flammable liquids with air, as well as flammable dust and fibers. The housing is made of anodized aluminum, and the lampshade is made of tempered glass, polycarbonate or PMMA. Optional execution with an autonomous A3 power source, adaptation to the central ZB battery or DALI control system. The fixture has the OBAC 21 ATEX 0060X certificate and CNBOP approval no. 5061/2023
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Luminous Flux (lm) | Wattage | Efficiency (lm/W) |
|---|---|---|---|
| EXL400LED-0300-E1-2 | 1395 | 10,5 | 133 |
| EXL400LED-0300-E2-1 | 2351 | 16,8 | 141 |
| EXL400LED-0600-E2-2 | 2810 | 19,8 | 142 |
| EXL400LED-0600-E2-3 | 3236 | 24 | 135 |
| EXL400LED-0600-E4-1 | 4735 | 33,7 | 141 |
| EXL400LED-0600-E4-2 | 5619 | 38,6 | 141 |
| EXL400LED-1200-E4-2 | 5340 | 38,6 | 138 |
| EXL400LED-1200-E4-3 | 6150 | 47 | 131 |
| EXL400LED-1200-E8-1 | 9000 | 64,8 | 139 |
| EXL400LED-1200-E8-2 | 10680 | 80 | 134 |
| EXL400LED-1200-E8-3 | 12300 | 93,5 | 132 |
| EXL400LED-1500-E5-2 | 6675 | 79,7 | 134 |
| EXL400LED-1500-E5-3 | 7688 | 59 | 130 |
| EXL400LED-1500-E10-1 | 1120 | 80 | 141 |
Electrical Features
- Connection terminals: 2,5mm2
- Input voltage: 220-240V 0,50-60 Hz
- Light source: Certified LED modules
- Power factor: >0,97
- Cable inlets: Ø20 or Ø25
- Overvoltage protection: 2kV
Mechanical Features
- Housing: Anodized aluminium
- Diffuser: Tempered glass, polycarbonate, PMMA
- Ingress protection: IP66/IP67
- Protection class: I
- Accessibility: Revision cover
Work Parameters
- Ambient Temperatures: -40°C to +60°C
- Lifetime: >70.000h L80 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K, 6500K-option
Certificate Information
- Standard Version
- Ex II 3G Ex ec IIC T6/T5 Gc
- Ex II 2D Ex tb IIIC T75°C/T100°C Db
- High Temperatures
- Ex II 3G Ex ec IIC T6/T5 Gc
- Ex II 3D Ex tc IIIC T75°C/T100°C Dc
