Frost PLUS
Zone :
Description

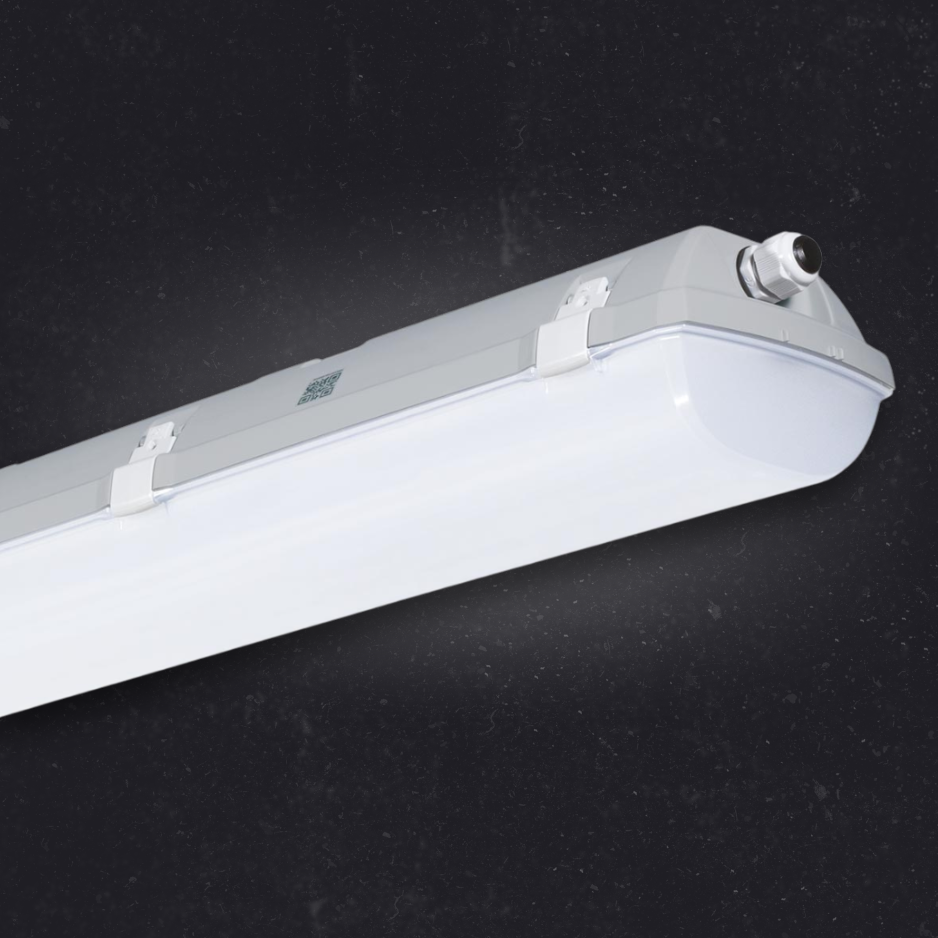

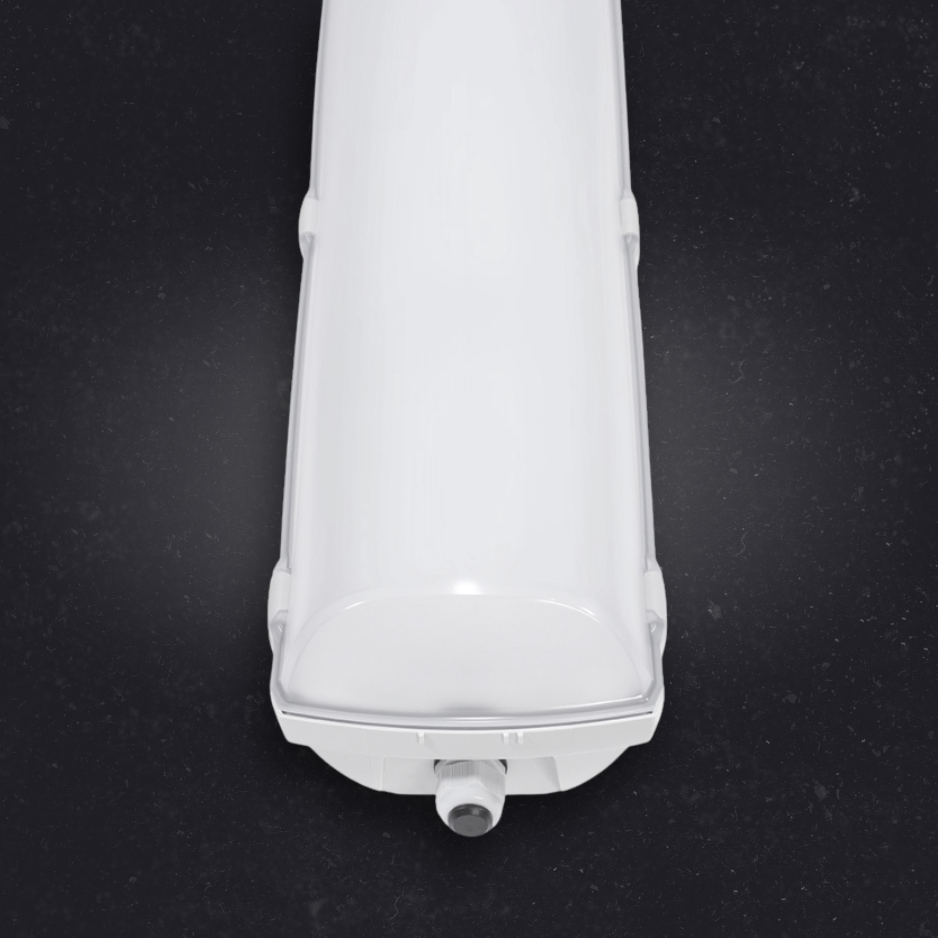

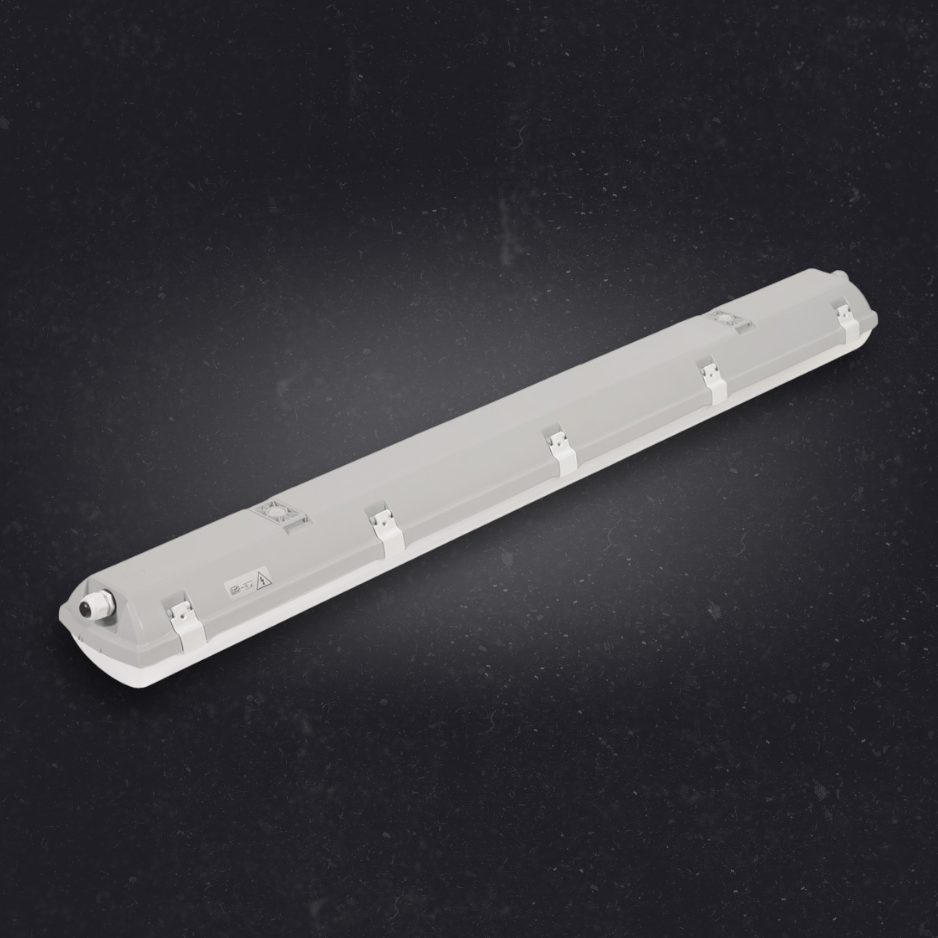

The Frost PLUS lighting fixture is designed for cold stores and freezing facilities with temperatures down to –40°C. Made from ABS material, it is weatherproof and chemically resistant (IP66, IK06). This fixture handles extreme cold, condensation, and vapors, offering low maintenance and a long service life of 50,000 hours.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Wattage |
Lumens |
Efficiency (lm/W) |
|---|---|---|---|
| Frost 2.4ft 5200/840 | 30,3 | 4600 | 152 |
| Frost 2.4ft 6400/840 | 36,3 | 5490 | 151 |
| Frost 2.4ft 8800/840 | 49,7 | 7650 | 154 |
| Frost 2.5ft 6500/840 | 37,1 | 5720 | 154 |
| Frost 2.5ft 8000/840 | 44,4 | 6840 | 154 |
| Frost 2.5ft 11000/840 | 71,1 | 10830 | 154 |
Electrical Features
- Electric equipment: LED modules, current driver
- Cable glands: Screwed PG13.5
- Wiring: Through wiring of up to 10 wires at body
- Certification: CE
Mechanical Features
- Housing: Dark grey ABS (RAL 7001), UV stable
- Diffuser: Translucent acrylic
- Ingress protection: IP66
- Impact strength: IK10
- Mounting: Stainless hooks and brackets
Work Parameters
- Ambient Temperatures: -40°C to +70°C
- Lifetime: 50.000h L90 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K; or 3000K, 5000K, 6500K (optional)
