Overview

Futura NB

Description

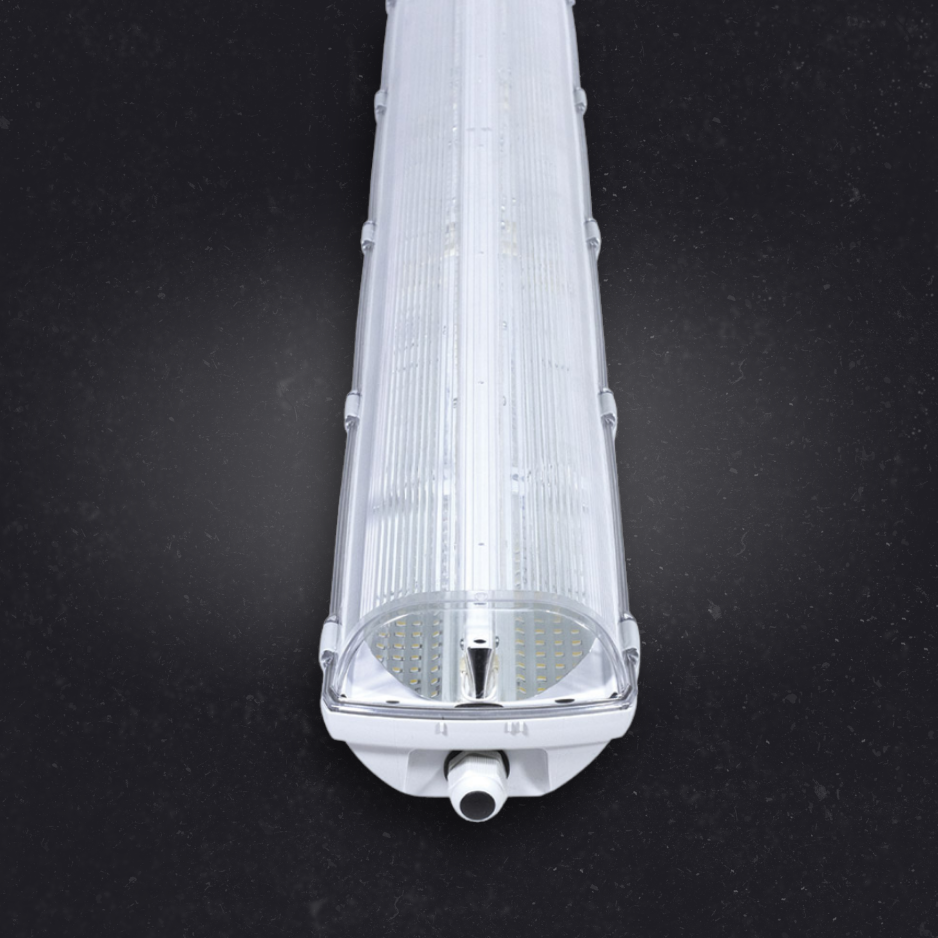

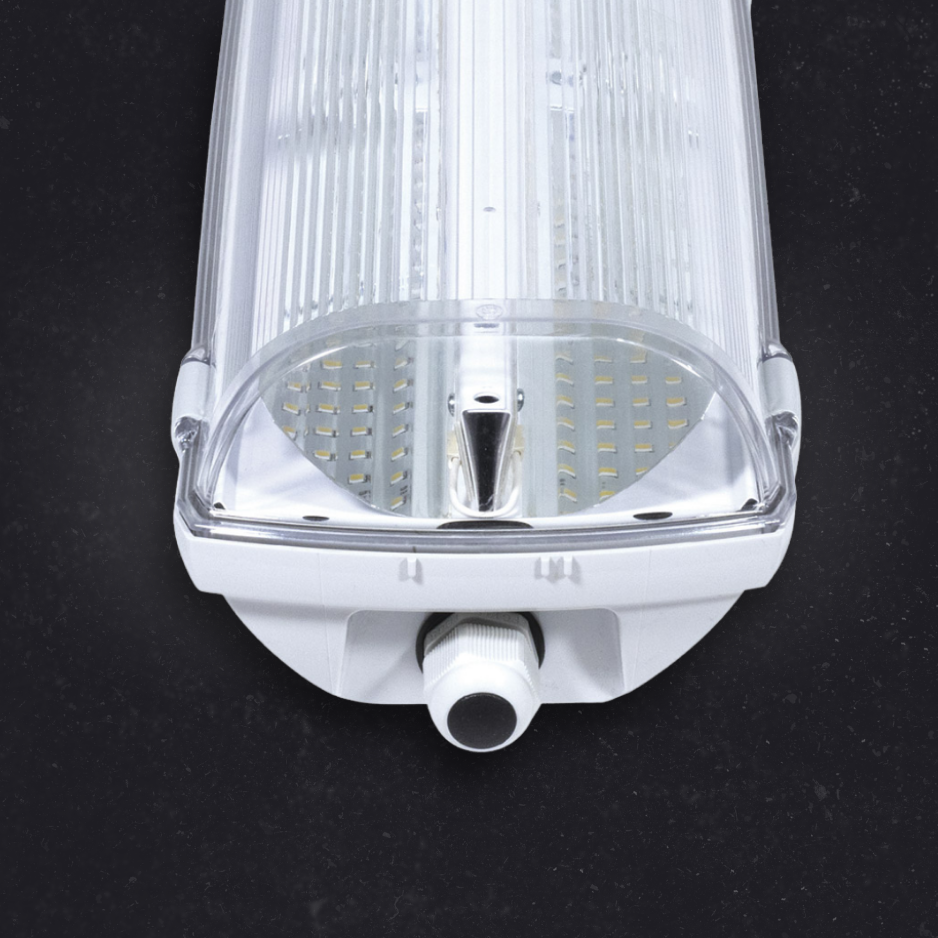

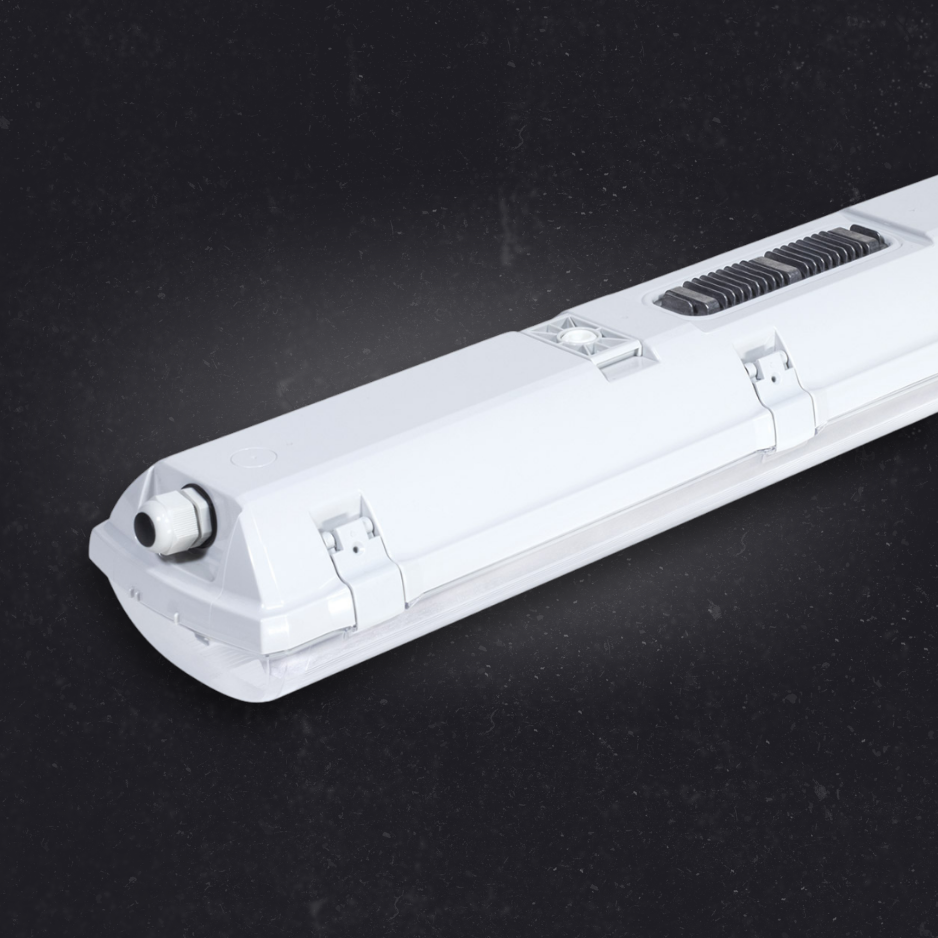

Plastic industrial LED light fitting suitable for rack aisleways with high ceilings, with diffuser made of translucent polycarbonate. The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

LDT CE HAACP Datasheet

Request A Quote Ask About The Product

Types Comparison

Please see datasheet for complete table with additional information.

Type	Max. Ambient Temperature (°C)	Luminous Flux of LED Modules (lm)	Luminous Flux of Light Fitting (lm)	Power Consumption (W)	System Efficacy (lm/W)
FUTURA 2.4ft NB PC AI 8800/840	40	9080	7630	52,7	145
FUTURA 2.4ft NB PC AI 12800/840	30	13100	11000	74,8	147
FUTURA 2.5ft NB PC AI 11000/840	40	11160	9370	65,1	144
FUTURA 2.5ft NB PC AI 16000/840	30	16090	13520	93,0	145

Electrical Features

Parameter	Specification

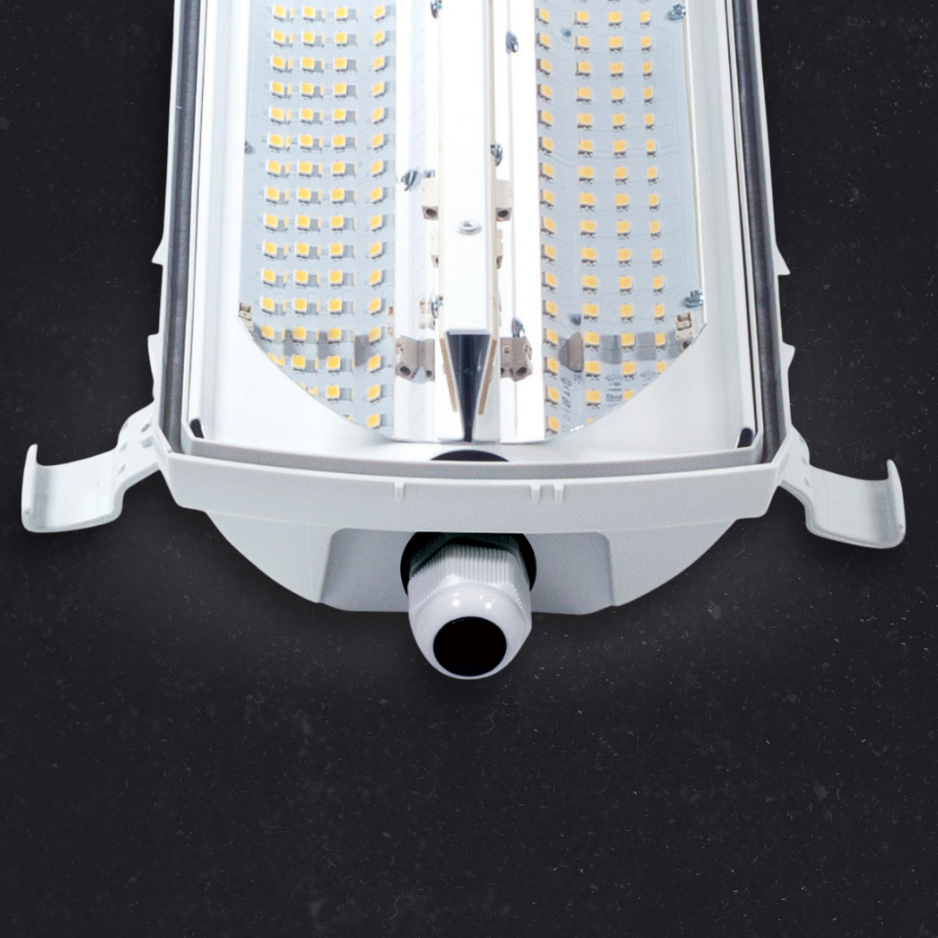

Electric equipment	LED modules, current driver, or current DALI driver
Wiring	Optional through wiring (up to 10 wires inside light fitting)
Certification	HACCP

Mechanical Features

Parameter	Specification
Housing	Grey polycarbonate
Diffuser	Transparent polycarbonate
Ingress protection	IP66
Impact strength	IK10
Mounting	Suitable for suspended, ceiling, wall, and surface mounting

Work Parameters

Parameter	Specification
Maximum ambient temperature	-40°C to 40°C
Lifetime	50,000 hours (L90B10) 100,000 hours (L80B10)

Photometrical Parameters

Parameter	Specification
CRI (standard)	>80
Colour temperature (standard)	CRI >80: 4000K
At request	CRI >80: 3000K, 5000K, 6500 >90: 3000K, 4000K, 5000K, 6500K
