Futura

Description

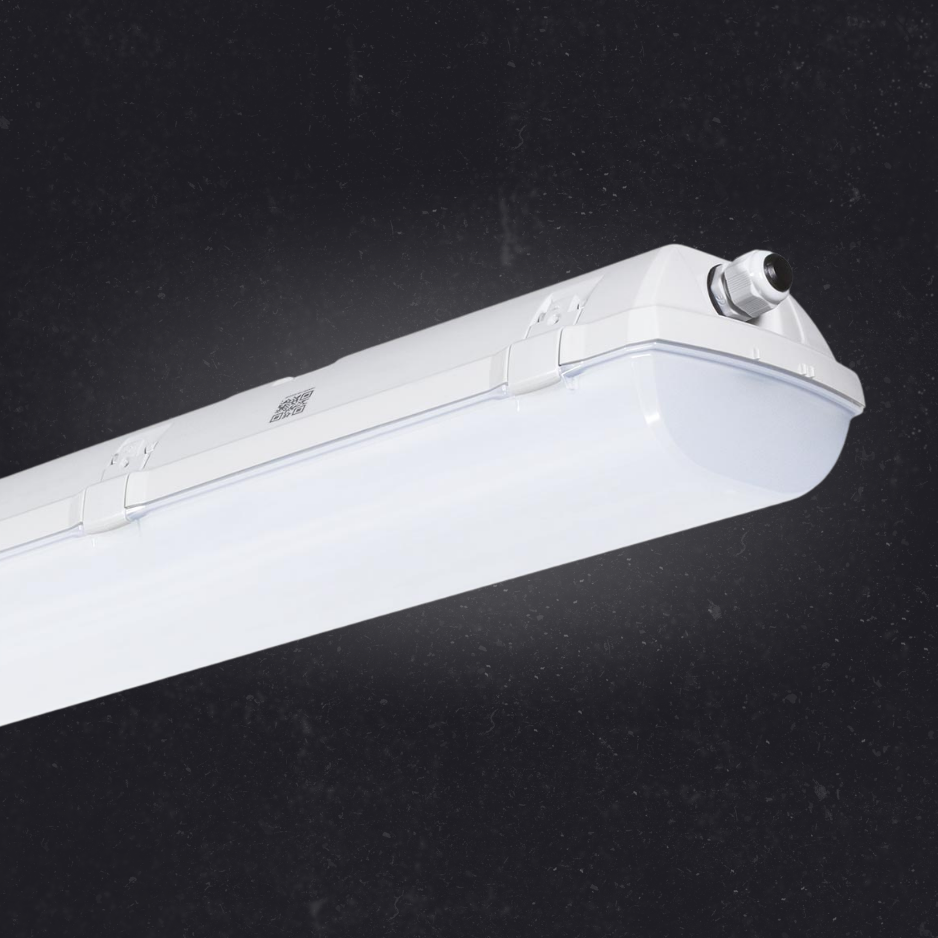

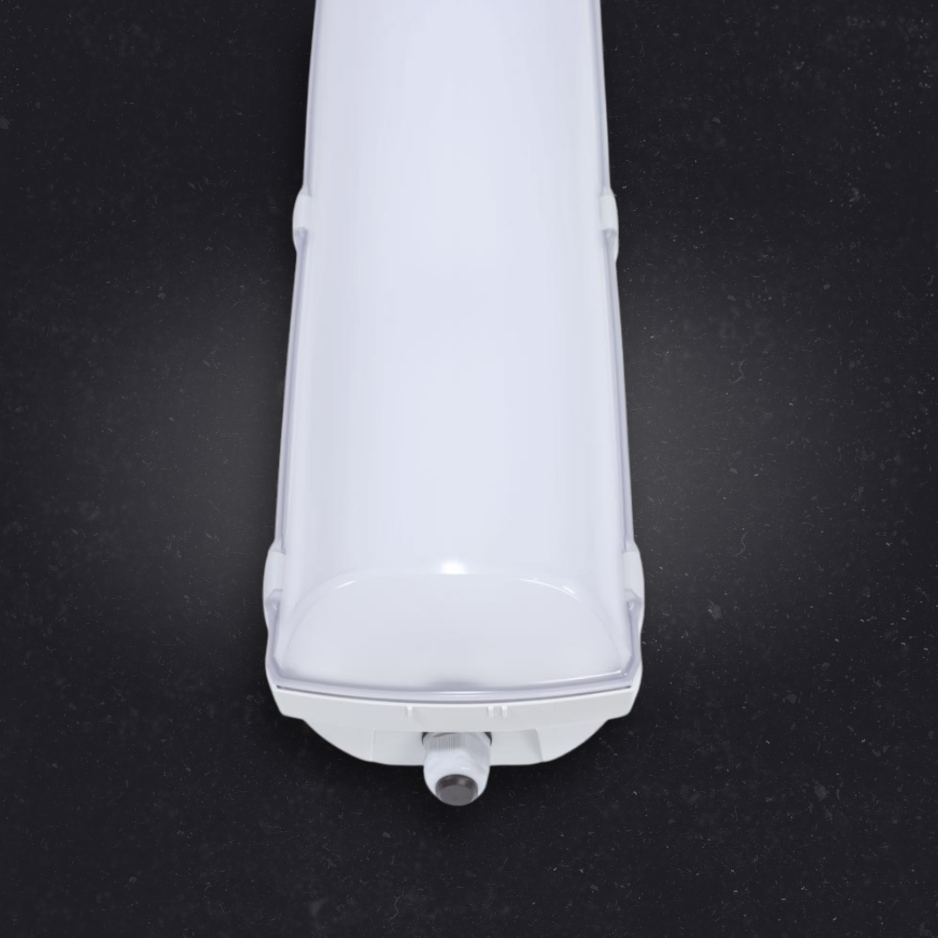

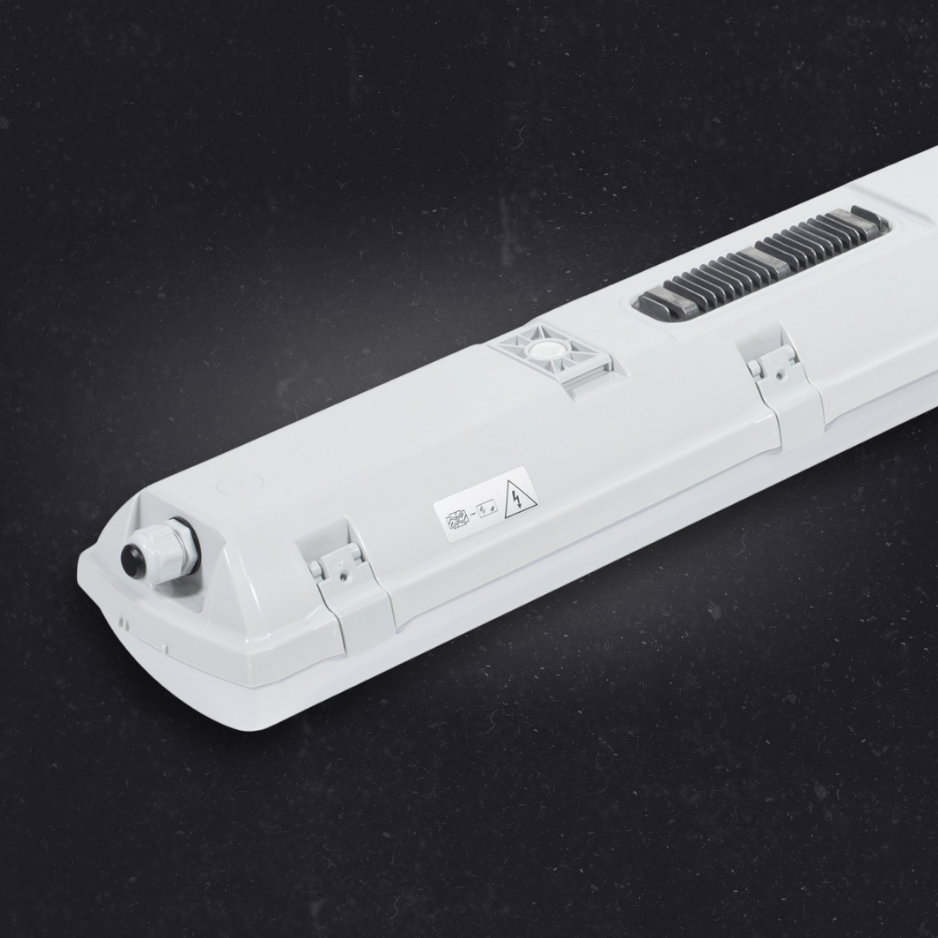

Plastic industrial LED light fitting, with diffuser made of translucent polycarbonate. The light fitting is suitable for industrial indoor and outdoor roofed spaces, warehouses, sports areas, workshops, garages, transport terminals, utility structures and laboratories without a danger of explosion of gases, dust and combustible fumes. The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

LDT Datasheet

Request A Quote Ask About The Product

Types Comparison

Please see datasheet for complete table with additional information.

Type	Max. Ambient Temperature (°C)	Luminous Flux of LED Modules (lm)	Luminous Flux of Light Fitting (lm)	Power Consumption (W)	System Efficacy (lm/W)
FUTURA 2.2ft PC AI 3200/840 *	50	3250	3060	20,1	152
FUTURA 2.2ft PC AI 4400/840 *	45	4680	4400	28,3	155
FUTURA 2.4ft PC AI 6400/840	50	6520	6130	38,4	160
FUTURA 2.4ft PC AI 8800/840 *	45	8980	8440	52,8	160
FUTURA 2.4ft PC AI 12800/840	35	12920	12140	74,8	162
FUTURA 2.5ft PC AI 8000/840 *	50	8330	7830	48,3	162
FUTURA 2.5ft PC AI 11000/840 *	45	11260	10580	64,7	164
FUTURA 2.5ft PC AI 16000/840	35	16100	15130	92,7	163

Electrical Features

Parameter	Specification
Electric equipment	LED modules, fixed output driver or DALI driver
Wiring	Optional through wiring (up to 10 wires inside light fitting)
Certification	EPD, ENEC, CB, HACCP
Maximum system efficacy	167 lm/W

Mechanical Features

Parameter	Specification
Housing	Grey polycarbonate
Diffuser	Translucent polycarbonate
Ingress protection	IP66
Mounting	Suitable for suspended, ceiling, wall, and surface mounting via stainless hooks and brackets

Work Parameters

Parameter	Specification
Ambient temperature	Up to 50°C
Lifetime	50,000 h L90 B10

Photometrical Parameters

Parameter	Specification
CRI (standard)	>80
Colour temperature (standard)	4000K
CRI >80 (on request)	3000K, 5000K, 6500K
CRI >90 (on request)	3000K, 4000K, 5000K, 6500K
