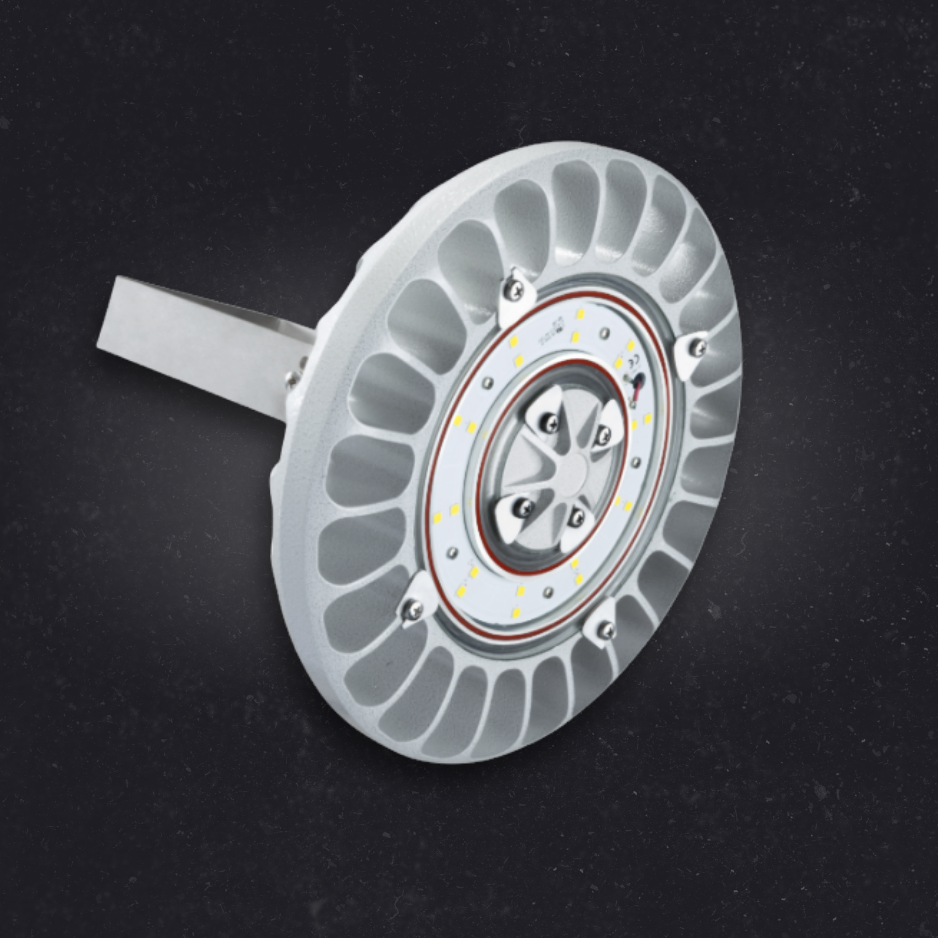

GlowEx
Zone :
Description
CE 0722 Ex II 2GD – Ex db eb mb IIC T.. Gb – Ex tb IIIC T.. °C Db – IP66
GlowEx explosion-proof LED lighting fixtures offer 151 lm/W efficiency, combining high performance with lightness, easy installation, and versatility. With three lamp sizes, they replace low to medium power discharge lamps. Patented Heat Destroyer tech ensures effective heat dissipation for long-lasting performance.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Wattage | Lumens | Efficiency (lm/W) |
|---|---|---|---|
| GlowEx-Z1-060030 | 32,8 | 4785 | 146 |
| GlowEx-Z1-060040 | 38,8 | 5531 | 143 |
| GlowEx-Z1-060050 | 46,7 | 6389 | 137 |
| GlowEx-Z1-060060 | 55,6 | 7285 | 131 |
| GlowEx-Z1-080070 | 69,1 | 9547 | 138 |
| GlowEx-Z1-080080 | 79,4 | 10646 | 134 |
| GlowEx-Z1-080090 | 89,2 | 11641 | 129 |
| GlowEx-Z1-080100 | 101,7 | 12708 | 125 |
| GlowEx-Z1-100120 | 117,0 | 17687 | 151 |
| GlowEx-Z1-100140 | 136,5 | 20154 | 148 |
| GlowEx-Z1-100160 | 156,6 | 22422 | 143 |
| GlowEx-Z1-100180 | 173,6 | 24218 | 140 |
| GlowEx-Z1-100200 | 190,1 | 25709 | 135 |
| GlowEx-Z1-100220 | 214,2 | 27961 | 131 |
Electrical Features
- Rated voltage: 100-277 Vac
- Rated frequency: 50/60 Hz
- Overvoltage protection: 4kV
Mechanical Features
- Body: Aluminium alloy with low copper content. With cooling fins for high levels of heat dissipation
- Front glass: Tempered glass, resistant to high temperatures and impacts
- Seals: Silicone resistant to acids, hydrocarbons and high temperatures
- Fastening bracket: Galvanized steel
- Screws: Stainless steel
- Entry points: 1x020 entry point. Fixture complete with a NAV20SIB cable gland
- Coating: Polyester RAL 7035 (Light grey)
- Corrosion resistant: The standard of the aluminium alloy used has passed the tests required by the Standard EN60068-2-30 (hot-humid cycles) and EN60068-2-11 (salt fog test)
Work Parameters
- Ambient Temperatures: -60°C up to +60°C
- Degree of Protection: IP66
Photometrical Parameters
- CRI: >70
- Colour tempature: 5000k
- L90: >60000h
- Viewing angle: 120°
