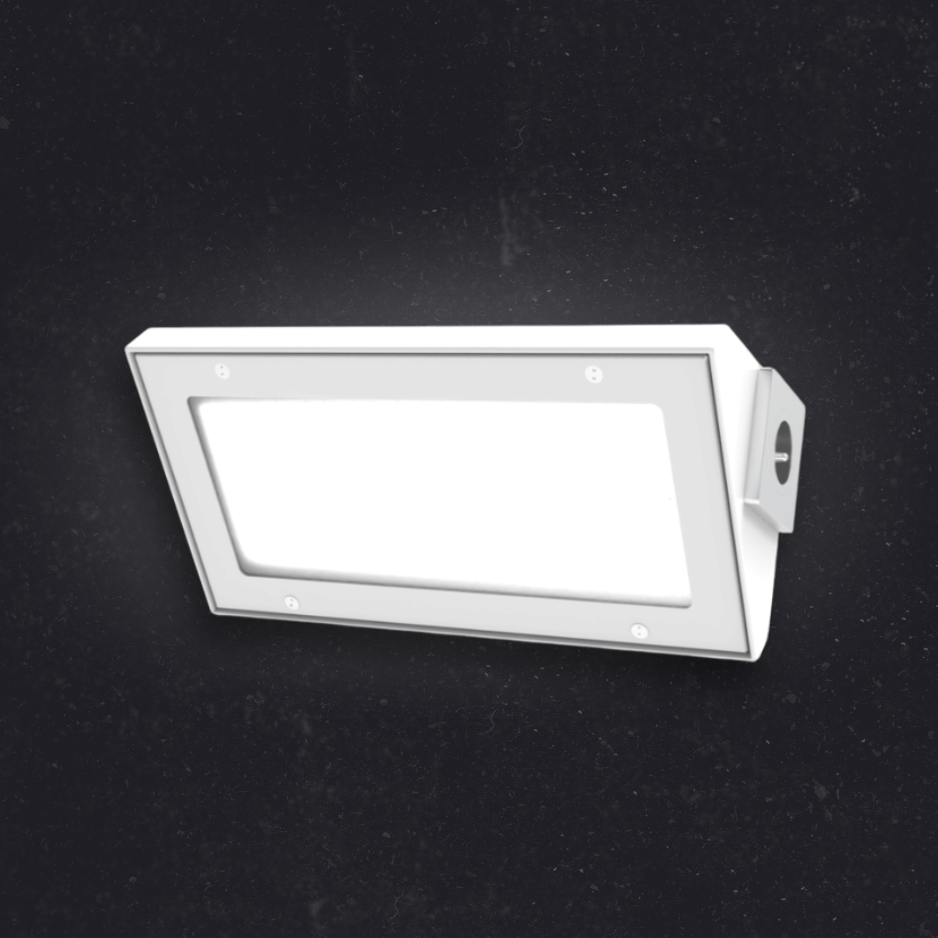

INP325LED

Zone :

Description

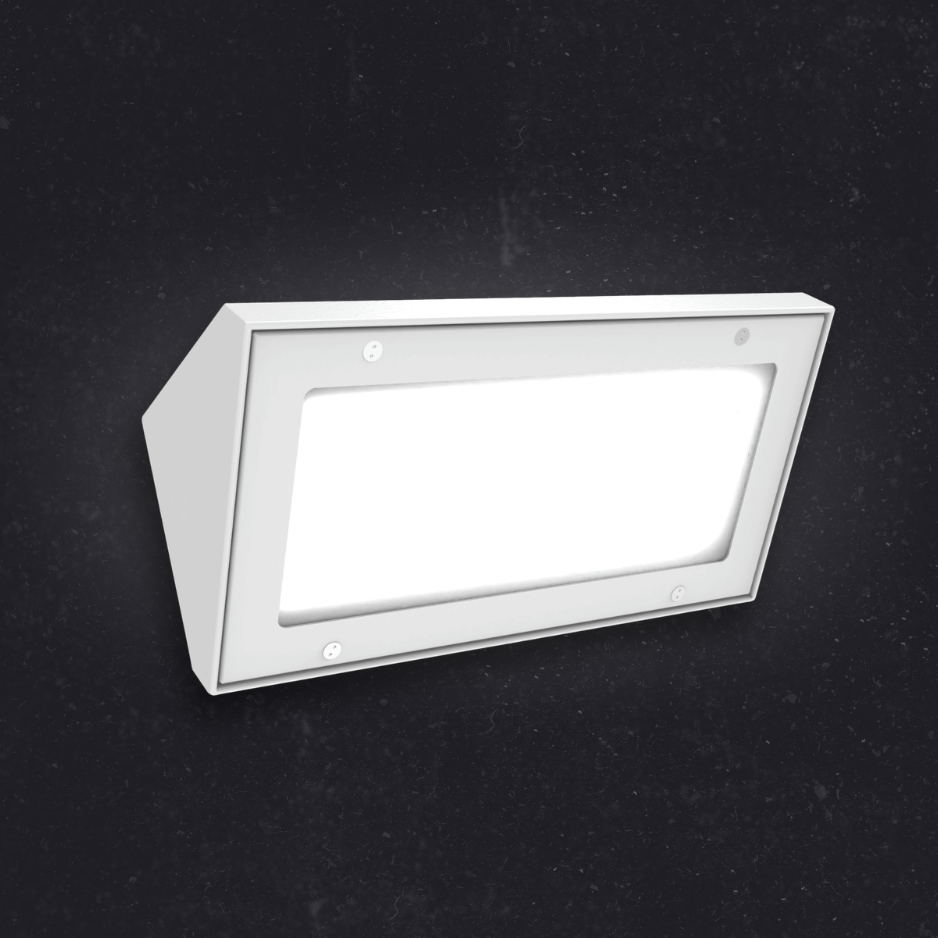

Vandal-proof luminaire with LED modules, adapted for wall mounting inside rooms intended for potentially aggressive people, serves as auxiliary and night lighting. It is rated by a very high degree of impact resistance (IK11+). The housing is made of galvanized steel, painted with modified powder paint. The lampshade is made of thick polycarbonate, which ensures its durability, and a special lock prevents unauthorized persons from accessing the interior of the luminaire. The design solutions used minimize the risk of self-harm or suicide attempts using it. As standard, the luminaire is equipped with an electrical socket, and optional versions are also available: with an additional SW switch or a night light NL module.

Downloads
INP325LED

Types Comparison

 Please see datasheet for complete table with additional information.

Code Luminous Flux (lm) Wattage Efficiency (lm/W)
INP325LED-M1-1 540 5,3 102
INP325LED-M2-1 1080 10,3 105
INP325LED-A1-1 1080 10,3 104
INP325LED-A2-1 2061 18,6 116


Electrical Features

  • Connection terminals:  2,5 mm²
  • Input voltage: 230V 0/50-60Hz
  • Light source: LED modules with ENEC certificate
  • Power factor: >0,95
  • Cable inlets: 2 x Ø20
  • Overvoltage protection: 1kV

Mechanical Features

  • Housing: powder coated galvanized steel sheet
  • Diffuser: thick polycarbonate
  • Ingress protection: IP65
  • Protection class: I
  • Mounting: 4 holes, easy mounting

Work Parameters

  • Ambient Temperatures: -20°C to +50°C
  • Lifetime: >72.000h L80F10

Photometrical Parameters

  • CRI: >80
  • Colour temperature: 4000K
