INP360LED
Zone :
Description

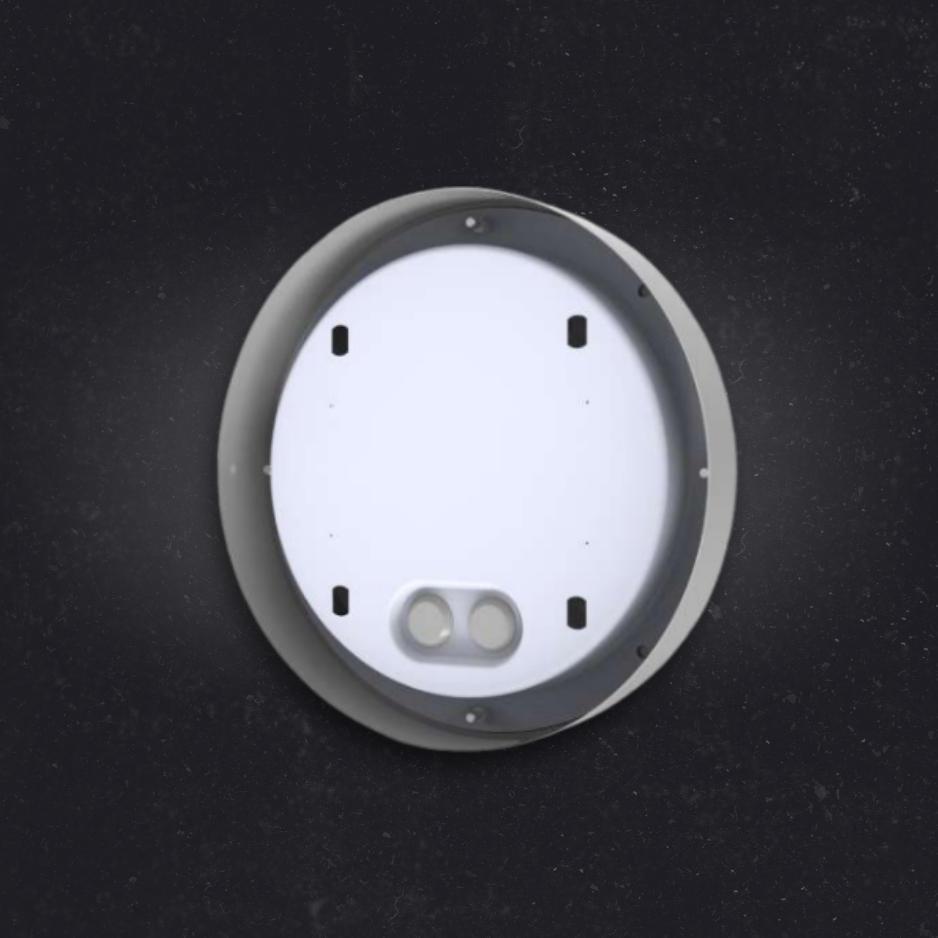

Vandal-proof luminaire with LED modules, adapted for wall or ceiling mounting inside sanitary facilities. It is characterized by a very high degree of impact resistance (IK11+). The housing is made of stainless steel, painted with modified powder paint. The lampshade is made of thick polycarbonate, which ensures its durability, and a special lock prevents unauthorized access to the interior of the luminaire. The design solutions used minimize the risk of self-harm or suicide attempts using it.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Wattage | Luminous Flux (lm) | Efficiency (lm/W) |
|---|---|---|---|
| INP360LED-0250-R2-1 | 7,5 | 600 | 80 |
| INP360LED-0250-L2-1 | 9,9 | 799 | 81 |
| INP360LED-0250-L2-3 | 13,6 | 1088 | 80 |
| INP360LED-0250-O1-1 | 13,5 | 1382 | 102 |
| INP360LED-0250-O1-3 | 19,9 | 1934 | 97 |
Electrical Features
- Connection terminals: 3 x 2,5 mm²
- Input voltage: 230V 50-60Hz
- Light source: LED modules with ENEC certificate
- Power factor: >0,95
- Cable inlets: 2 x Ø20
- Overvoltage protection: 1kV
Mechanical Features
- Housing: powder coated stainless steel sheet
- Diffuser: opal polycarbonate
- Ingress protection: IP67
- Protection class: I
- Mounting: 4 holes, easy mounting
Work Parameters
- Ambient Temperatures: -30°C to +40°C
- Lifetime: >70.000h L80 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K
