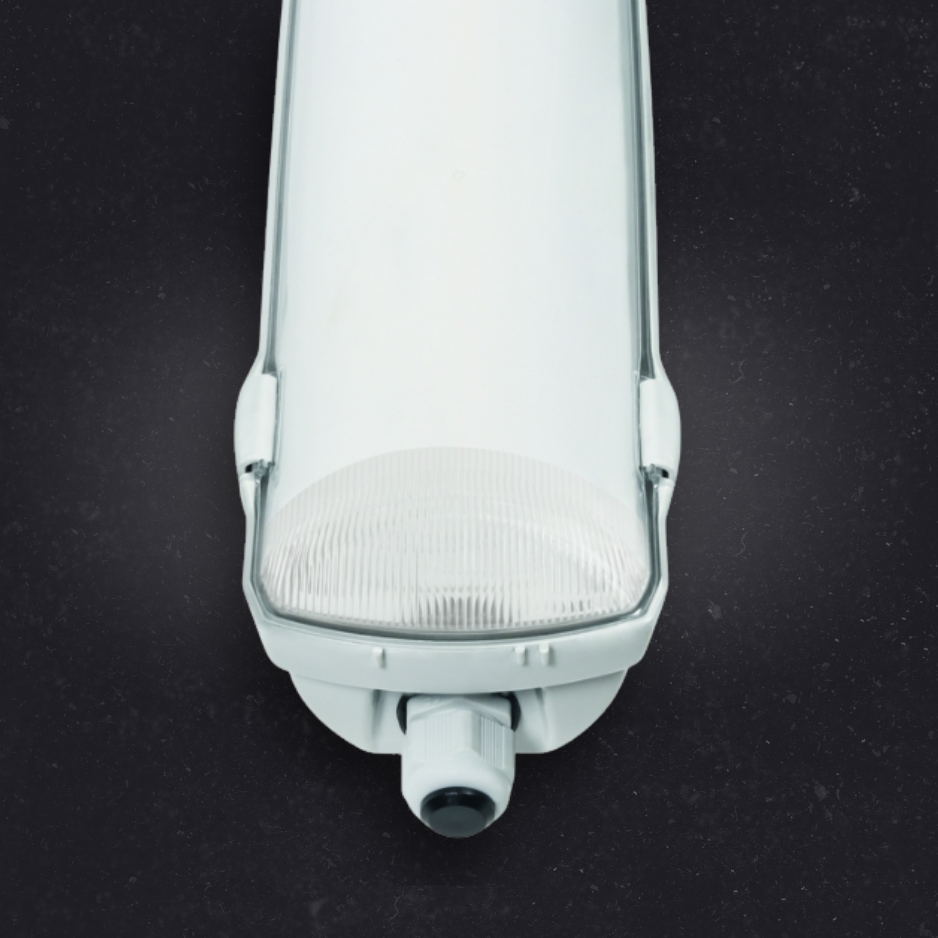

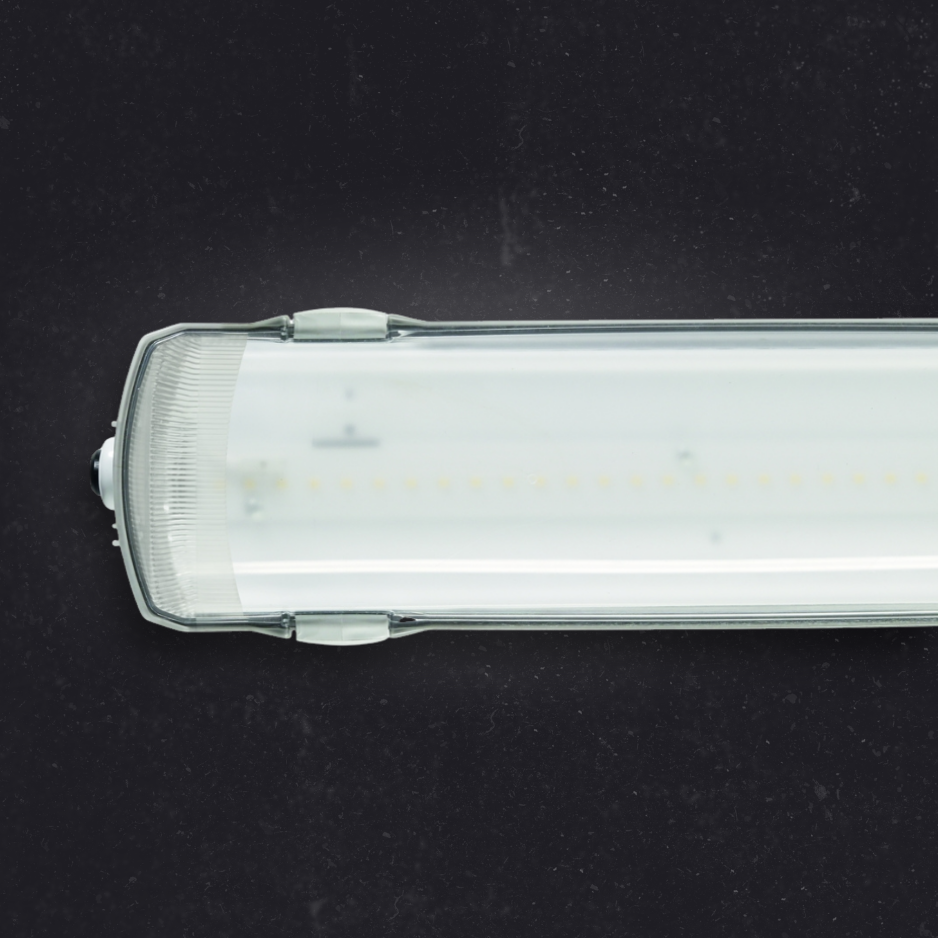

Nanottica

Description

The fixture boasts a low unified glare rating with UGR values its patented nanooptics. This ensures eye comfort, high visual performance and workplace safety, which indirectly translates into higher productivity.

LDT CE HAACP Datasheet CB

Request A Quote Ask About The Product

Types Comparison

Please see datasheet for complete table with additional information.

Type	Max. ambient temperature [°C]	Luminous flux of LED modules L [lm]	Luminous flux of light fitting ƒ [lm]	Power consumption [W]	System efficacy [lm/W]
NANOTTICA 1.2ft PC 1600/840	50	1630	1530	10.5	146
NANOTTICA 1.2ft PC 2200/840 *	45	2360	2220	14.6	152
NANOTTICA 1.4ft PC 3200/840	50	3260	3060	20.1	152
NANOTTICA 1.4ft PC 4400/840 *	45	4520	4250	27.3	156
NANOTTICA 1.4ft PC 6400/840 *	45	6500	6110	38.5	159
NANOTTICA 1.4ft PC 8000/840	35	8160	7670	49.0	157
NANOTTICA 1.5ft PC 4000/840	50	4180	3930	25.3	155
NANOTTICA 1.5ft PC 5500/840 *	45	5590	5250	33.3	158
NANOTTICA 1.5ft PC 8000/840 *	45	8020	7540	47.4	159
NANOTTICA 1.5ft PC 10000/840	35	10350	9730	62.9	155

Electrical Features

Parameter	Specification
Electric equipment	LED modules, fixed output driver or DALI driver
Wiring	Optional through wiring (up to 5 wires inside light fitting)
Certification	ESC, ENEC, CB, HACCP
Maximum light efficiency	165 lm/W

Mechanical Features

Parameter	Specification
Housing	Grey polycarbonate
Diffuser	Translucent polycarbonate
Ingress protection	IP66 / IP69
Impact strength	IK10
Mounting	Suitable for suspended, ceiling, wall, and surface mounting via stainless steel hooks and brackets

Work Parameters

Parameter	Specification
Ambient temperatures	-25°C to +50°C
Lifetime	50,000h L90 B10

Photometrical Parameters

Parameter	Specification
CRI	>80 (standard)
Colour temperature	4000K (standard)
CRI >80	3000K, 5000K, 6500K (on request)
CRI >90	3000K, 4000K, 5000K, 6500K (on request)
