Optix LED

Description

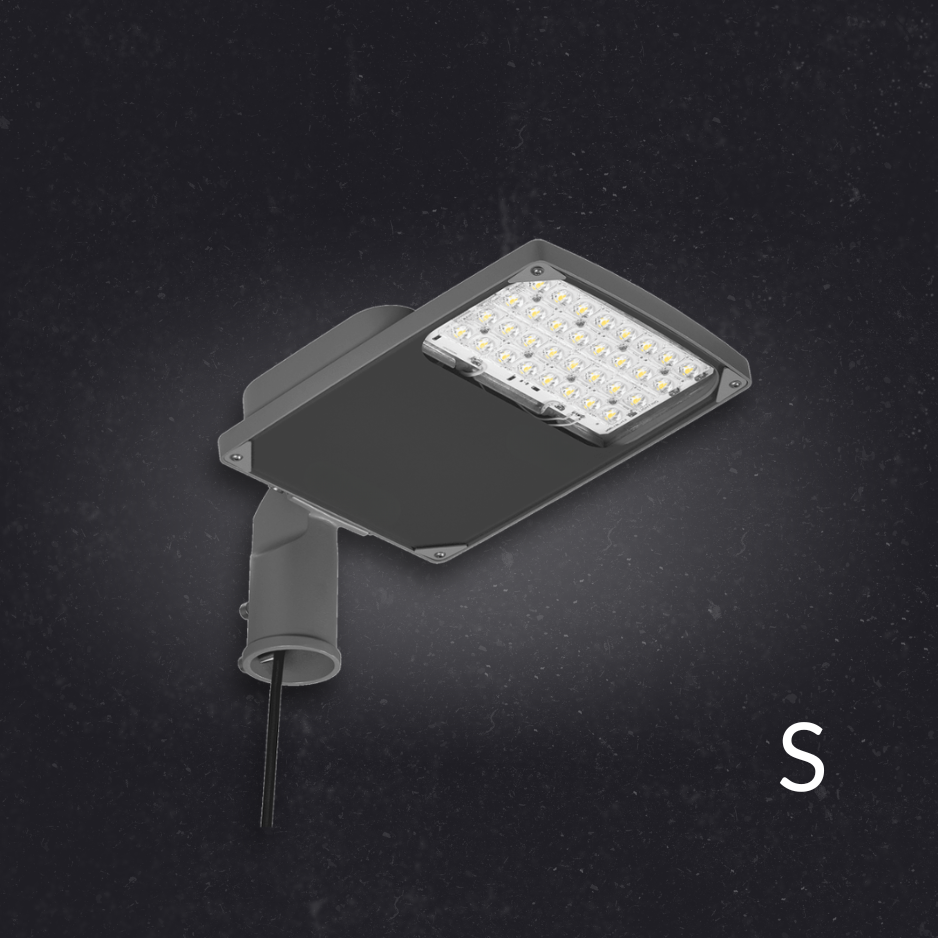

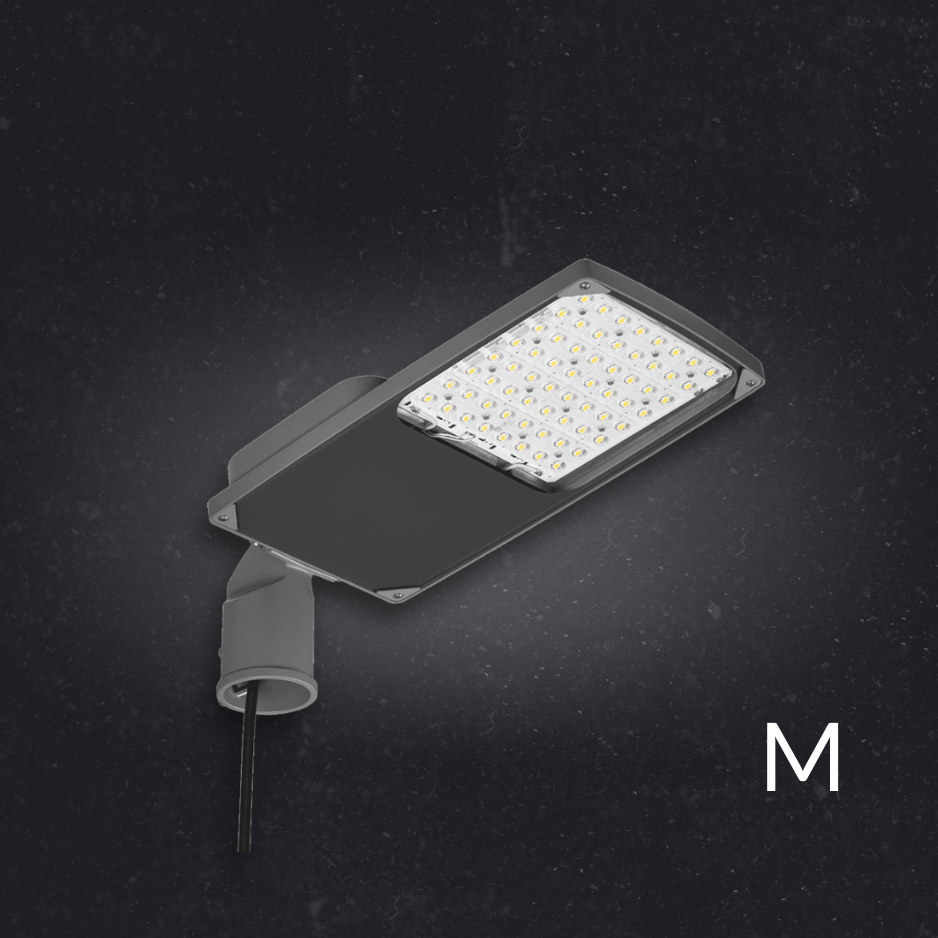

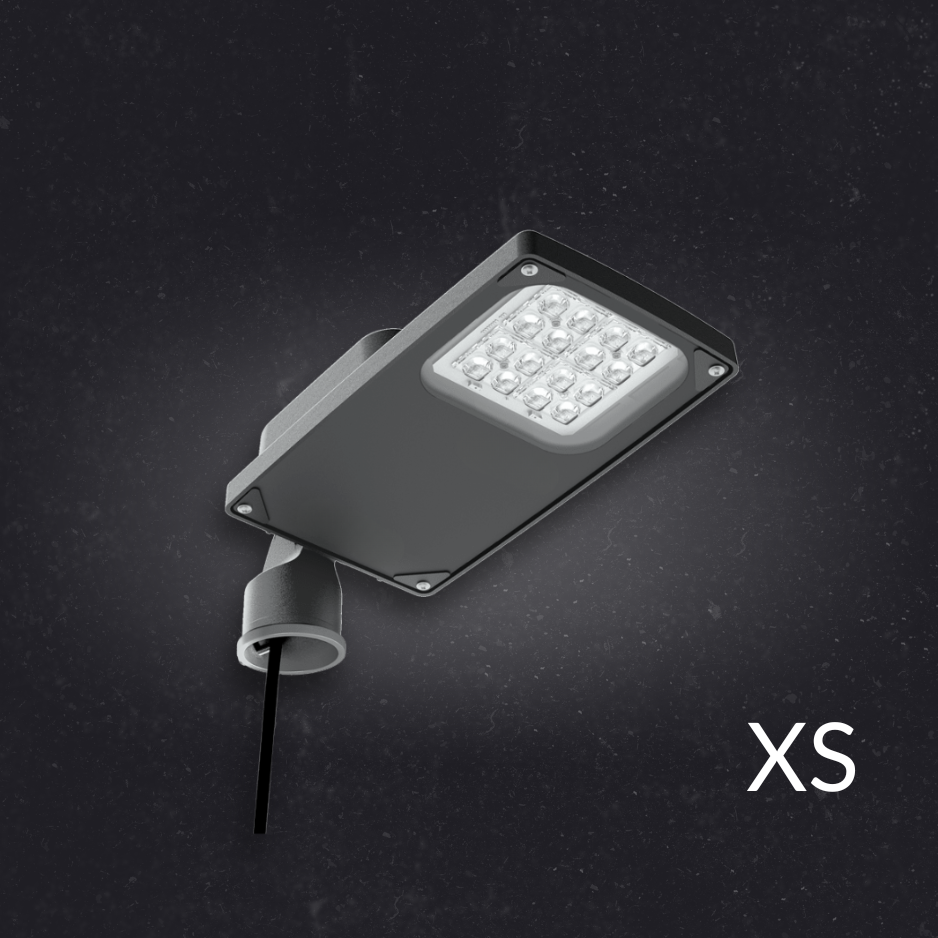

OPTIX LED is a modern road luminaire with high-efficiency LED modules and optimised RM7 optics. Durable powder-coated aluminium construction with IP66 and IK10 protection ensures reliable long-term performance. The range offers 8–157W outputs, DALI control and energy-efficient operation across multiple applications. The range includes Optix LED M, S and XS variants.

Optix M Datasheet Optix S Datasheet Optix XS Datasheet

Request A Quote Ask About The Product

Types Comparison

Rated Power (W)	Luminous Flux (lm)	Luminous Efficacy (lm/W)	Energy Class	Colour Temp (K)	CRI	Electrical Class	Optics	DALI	Index
15	2225	148	C	4000	70	II	RM7	yes	>> 411441
26	3950	152	C	4000	70	II	RM7	yes	>> 411499
34	5400	159	B	4000	70	II	RM7	yes	>> 411526
43	6975	162	B	4000	70	II	RM7	yes	>> 411571
54	8475	157	C	4000	70	II	RM7	yes	>> 411601
63	9925	158	B	4000	70	II	RM7	yes	>> 411625
76	10375	137	C	4000	70	II	RM7	yes	>> 411649
85	12350	145	C	4000	70	II	RM7	yes	>> 411663
94	13650	145	C	4000	70	II	RM7	yes	>> 411687
110	14950	136	D	4000	70	II	RM7	yes	>> 411700
126	16875	134	D	4000	70	II	RM7	yes	>> 411724
140	18500	132	D	4000	70	II	RM7	yes	>> 411731
157	20125	128	D	4000	70	II	RM7	yes	>> 411748

Optix LED

Types Comparison
