TNL300LED
Zone :
Description

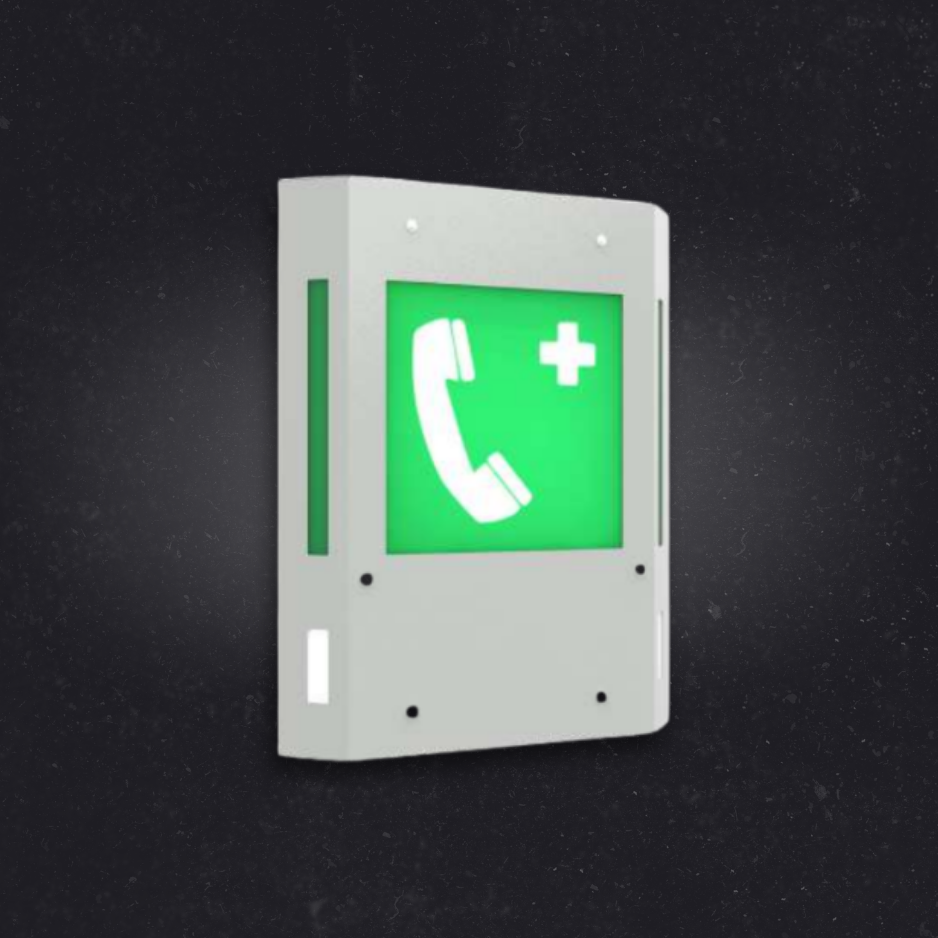

Evacuation luminaire with LED modules, designed for car tunnels. The illuminated pictogram indicates the evacuation route, it is also possible to equip the luminaire with additional evacuation route lighting. The housing is made of stainless steel painted with modified powder paint, while the shade is made of tempered glass. The luminaire has CNBOP approval no. 4378/2021
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Luminous Flux | Wattage |
|---|---|---|
| TNL300LED-0300-V1 | >200 | 18,5+8 |
| TNL300LED-0300-V2 | >200 | 18,5 |
Mechanical Features
- Housing: Stainless steel
- Diffuser: Tempered glass
- Ingress protection: IP65
- Protection class: I
- Mounting: 4 holes
Work Parameters
- Ambient Temperatures: -25°C to +45°C
- Lifetime: 70.000h L80 B10
Electrical Features
- Input voltage: 230V 0/50-60Hz | 230VDC
- Light source: LED modules with ENEC certificate

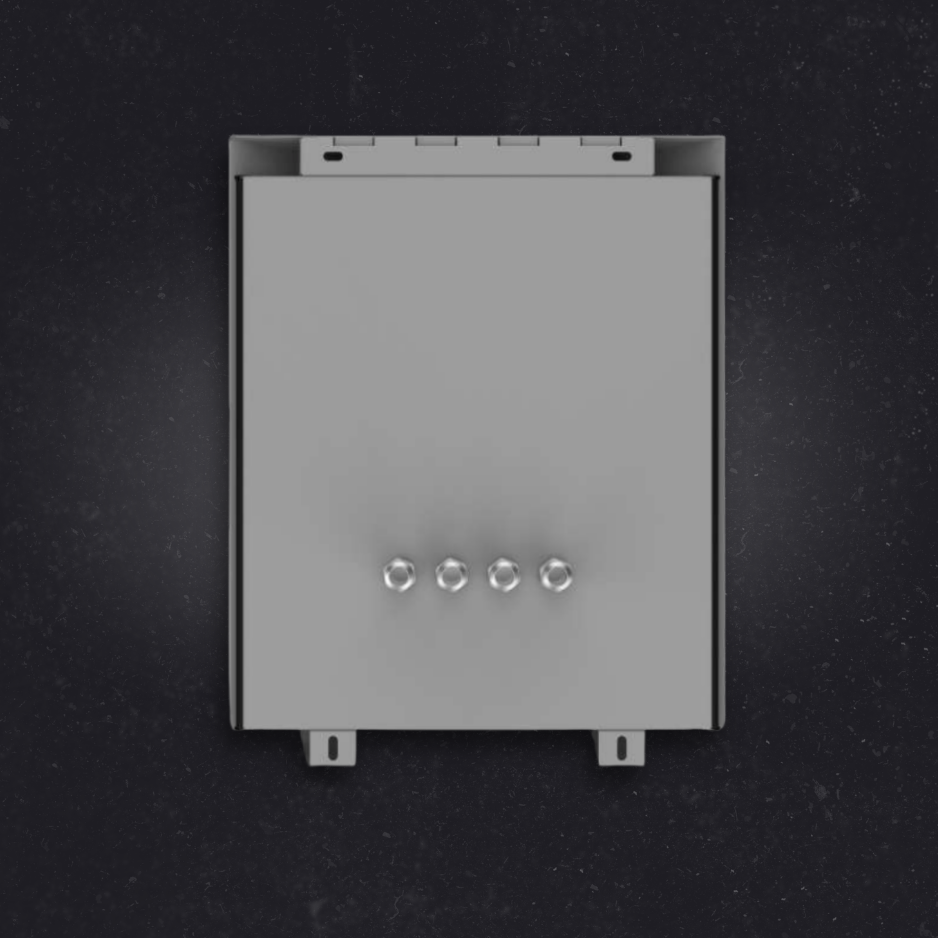

- Cable glands: max 4 x M32
- Connection terminals: 4mm2
- Overvoltage protection: 10kV
- Control system: Integrated DALI driver
