TNL440LED
Zone :
Description

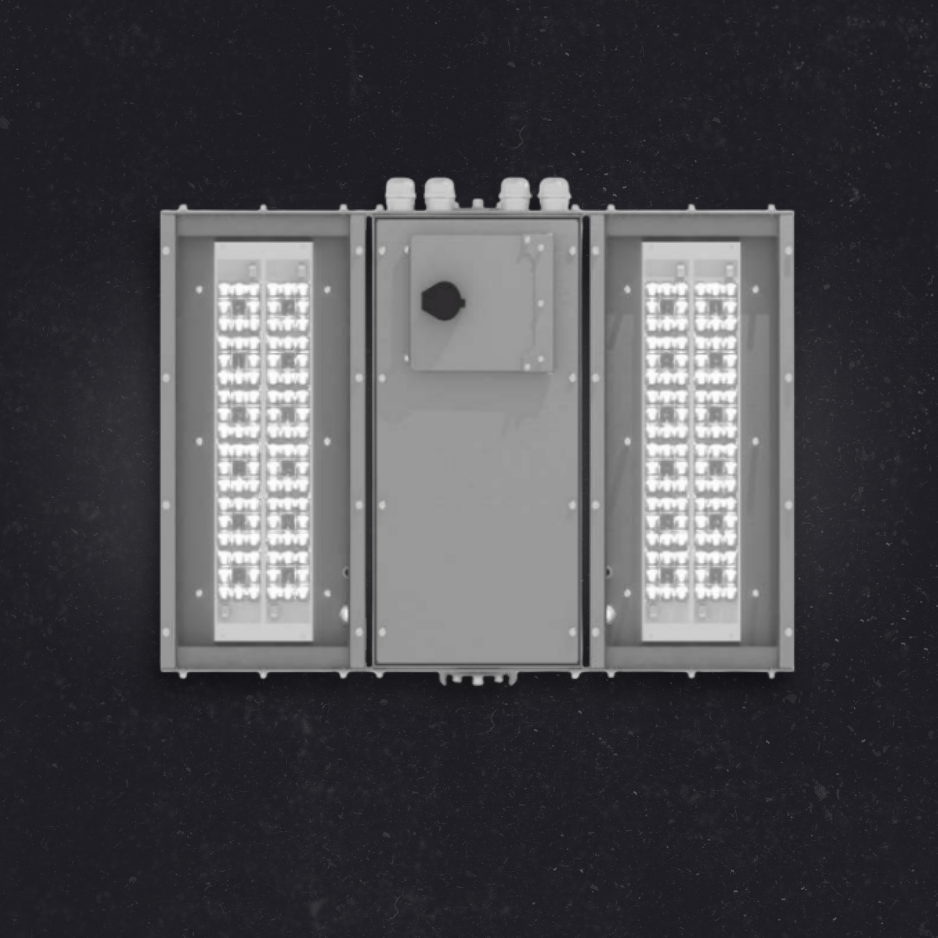

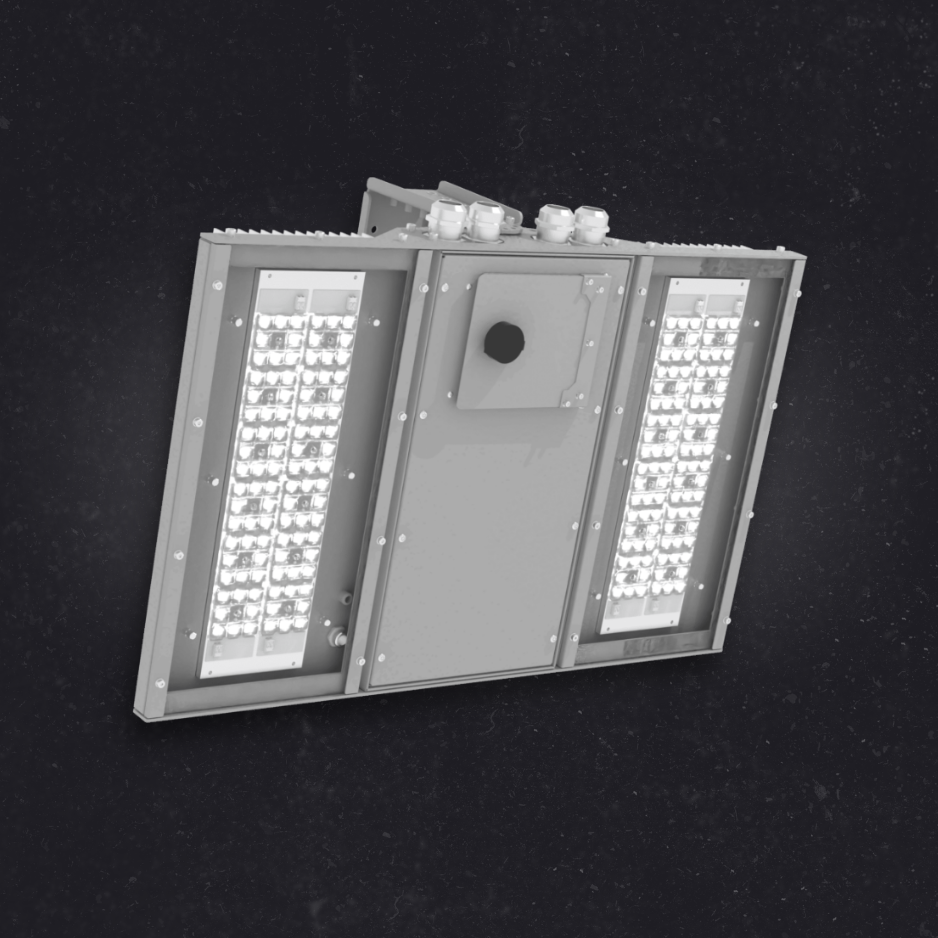

Floodlight with LED modules, designed for use in car tunnels. High efficiency and the possibility of choosing one of three optics allow for appropriate illumination of the roadway in the tunnel. The use of a lockable inspection flap makes it easy to connect the device to the power supply. The housing is made of stainless steel, while the shade is made of tempered glass. The floodlight has CNBOP approval no. 4371/2021
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Luminous Flux | Wattage | Efficiency (lm/W) |
|---|---|---|---|
| TNL440LED-030-HB4 | 4094 | 28,0 | 146,2 |
| TNL440LED-040-HB4 | 5842 | 39,6 | 147,5 |
| TNL440LED-050-HB4 | 6908 | 46,5 | 148,6 |
| TNL440LED-070-HB4 | 9185 | 62,1 | 147,9 |
| TNL440LED-090-HB4 | 12164 | 83,9 | 145,0 |
| TNL440LED-130-HB8 | 17556 | 118,4 | 148,3 |
| TNL440LED-170-HB8 | 21979 | 150,2 | 146,3 |
| TNL440LED-250-HB8 | 28903 | 203,4 | 145,4 |
| TNL440LED-270-HA8 | 35004 | 240,8 | 145,4 |
| TNL440LED-330-HA8 | 41016 | 288,4 | 142,2 |
| TNL440LED-400-HA10* | 54874 | 357,6 | 153,5 |
Electrical Features
- Input voltage: 210-250V 50/60Hz | 210-250 VDC
- Light source: LED modules with ENEC certificate
- Cable glands: max 4 x M25 lub 2 x M32
- Connection terminals: 7 x 10mm2
- Overvoltage protection: 6kV
- Control system: Integrated DALI driver
Mechanical Features
- Housing: Stainless steel
- Diffuser: Tempered glass
- Ingress protection: IP66
- Protection class: I

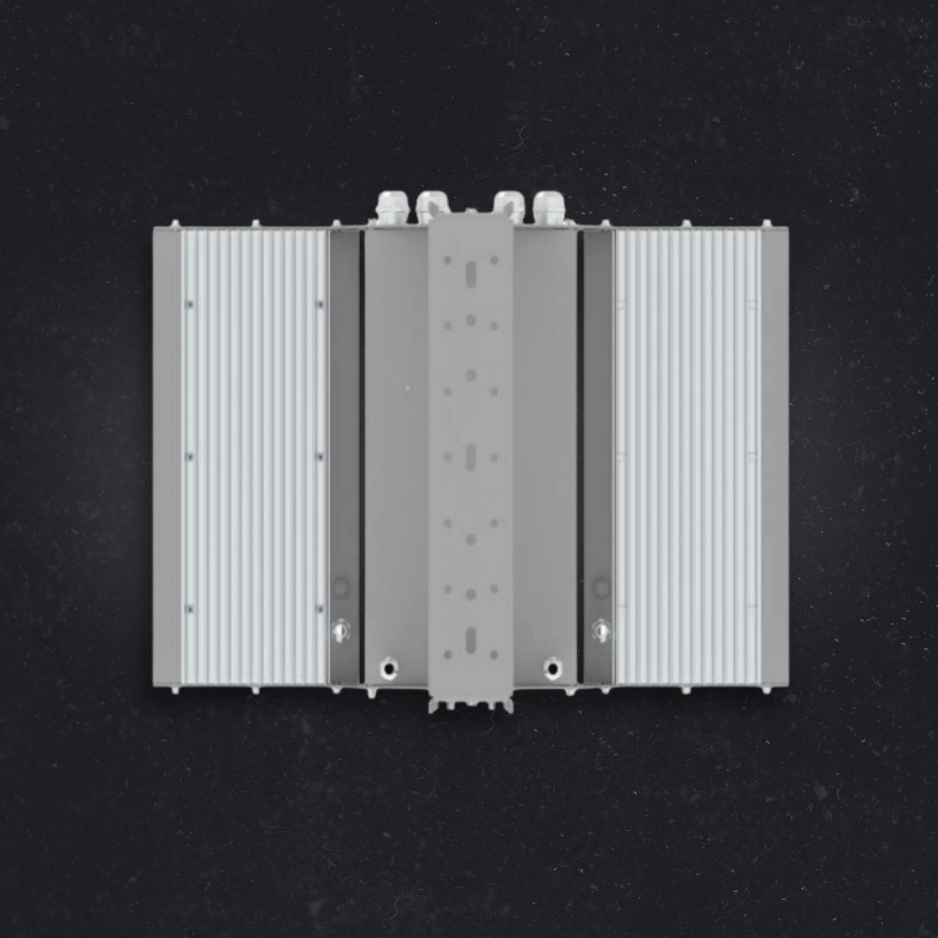

- Radiators: Aluminium
- Access:With key
Photometrical Parameters
- CRI: >70
- Colour temperature: 4000K
Work Parameters
- Ambient Temperatures: -40°C to +60°C
- Lifetime: 100.000h L80 B10
