TrEx
Zone :
Description
Ex II 2G Ex eb mb op is IIC T5 Gb
Ex II 2D Ex tb op is IIIC T55°C Db or T70°C Db

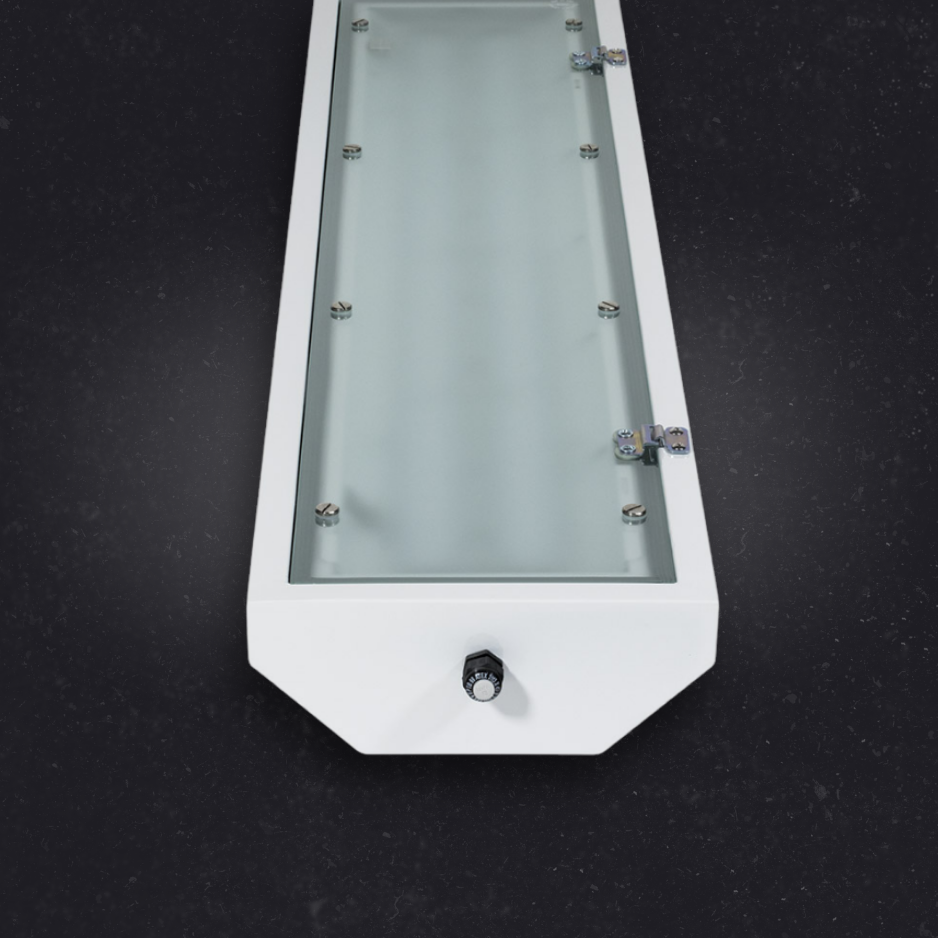

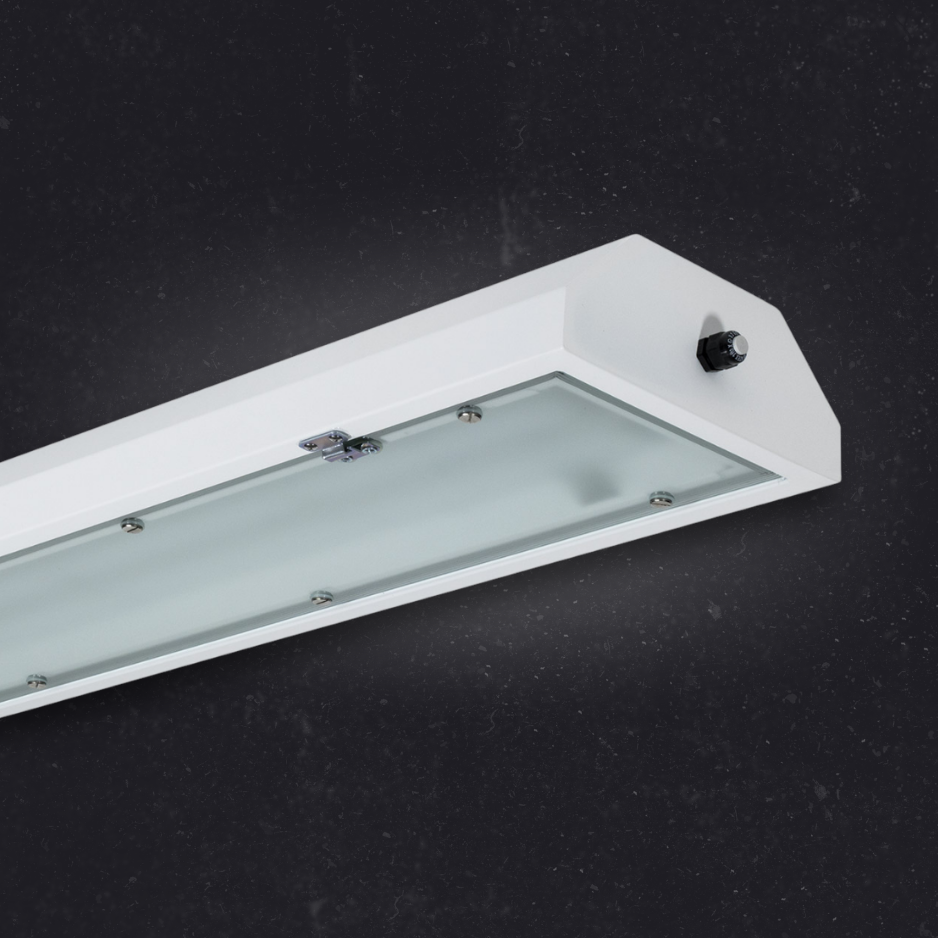

The metal light fitting with satinated tempered safety glass is designed for hazardous environments with explosion risks in Zones 1, 21, 2, and 22, and complies with European Directive 2014/34/EU. It is resistant to chemically aggressive conditions, making it suitable for chemical factories, gas and oil processing plants, power plants, military facilities, automotive factories, and laboratories. With an IP66 rating, it is protected against dust and splashing water.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
| Code | Wattage | Lumens | Efficiency (lm/W) |
|---|---|---|---|
| TrEx 1.2ft 3200/840 | 19 | 2350 | 123 |
| TrEx 1.2ft 4400/840 | 27 | 3360 | 124 |
| TrEx 1.4ft 6400/840 | 35 | 4700 | 134 |
| TrEx 1.4ft 8800/840 | 50 | 6720 | 134 |
| TrEx 1.5ft 8000/840 | 40 | 5880 | 147 |
| TrEx 1.5ft 11000/840 | 59 | 8400 | 142 |
| TrEx 2.2ft 6400/840 | 35 | 4700 | 134 |
| TrEx 2.2ft 8800/840 | 50 | 6720 | 134 |
| TrEx 2.4ft 12800/840 | 67 | 9400 | 140 |
| TrEx 2.4ft 17600/840 | 100 | 13440 | 134 |
| TrEx 2.5ft 16000/840 | 80 | 11760 | 147 |
| TrEx 2.5ft 22000/840 | 121 | 16800 | 138 |
Electrical Features
- Wiring: Optional through-wiring of up to 7 wires at reflector
- Cable glands: Metal or armoured ATEX cable glands M20 × 1,5 or M25 × 1,5
- Certification: CE, ATEX TÜV CY 21 ATEX 0206562X - TrEx, TrEx Mxh
Mechanical Features
- Housing: Powder-coated steel sheet RAL 9003, or INOX (AISI 304)
- Diffuser: Satinated tempered safety glass
- Ingress protection: IP66
- Impact strength: IK10

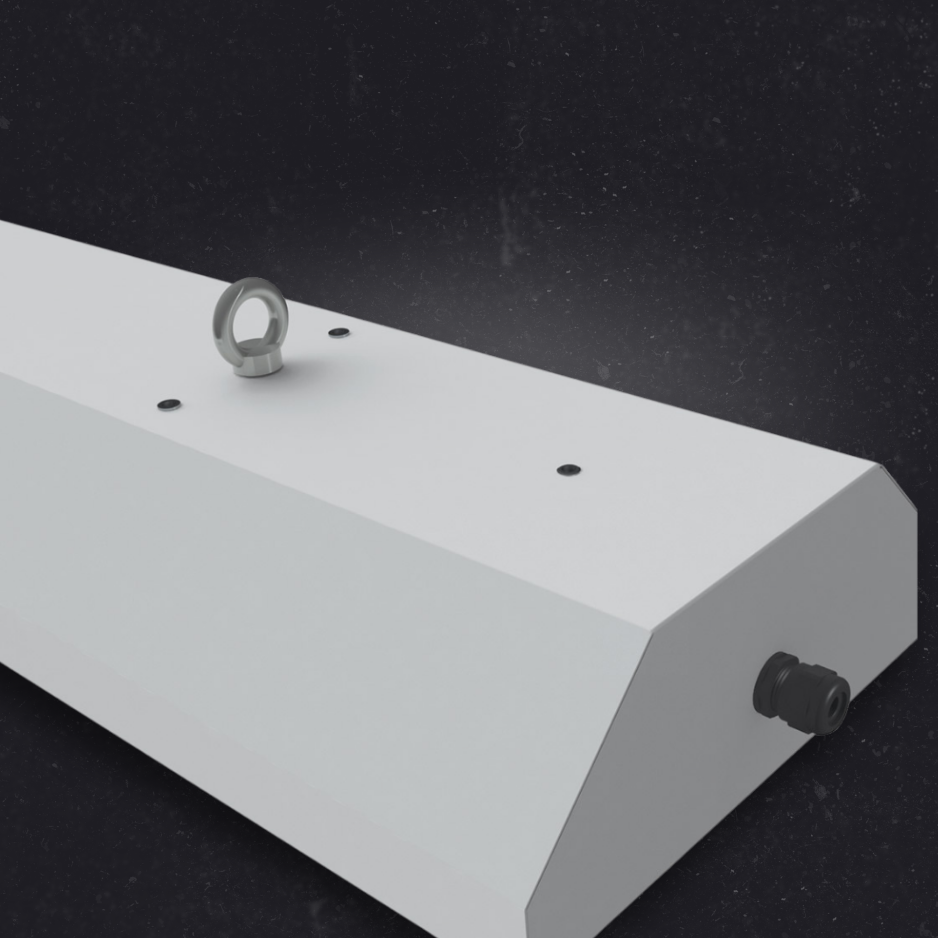

- Mounting: Includes suspensory eyes 2 x M6, suitable for ceiling and wall
Work Parameters
- Ambient Temperatures: -40°C to +55°C
- Lifetime: 75.000h L80 B50
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K - standard
- On request CRI: >80: 3000K, 5000K, 5700K
