Overview

VECTRA 2 LED

Description

Vectra 2 LED L is a modern road luminaire with high-efficiency LED modules and consistent multi-lens optics. Durable die-cast aluminium construction with IP66 and IK09 protection ensures long-term performance. The range includes Vectra 2 LED L, M, S and XS variants with DALI control and energy-saving features available.

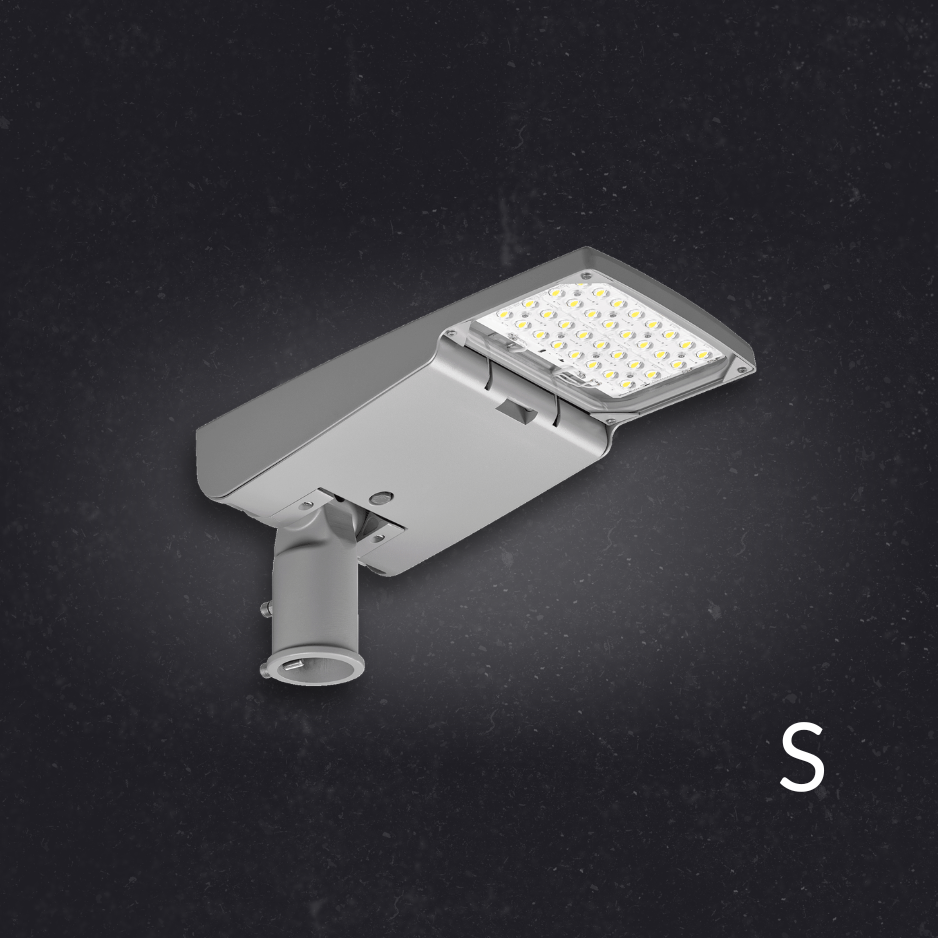

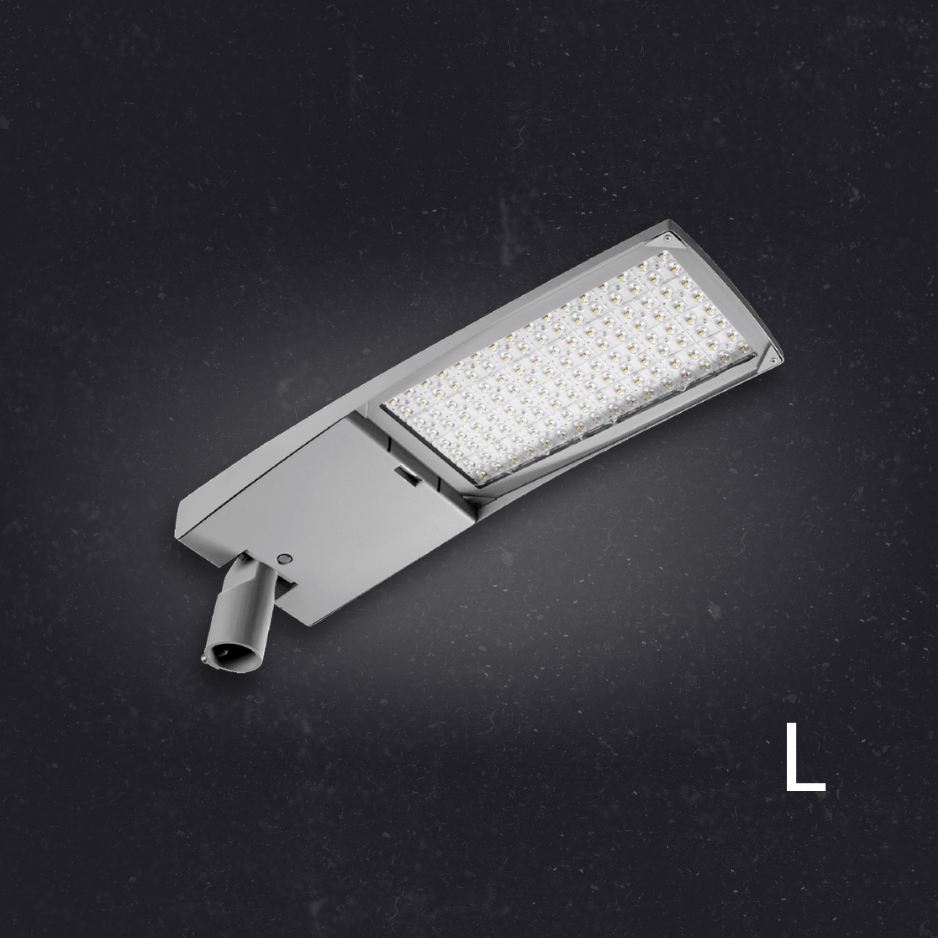

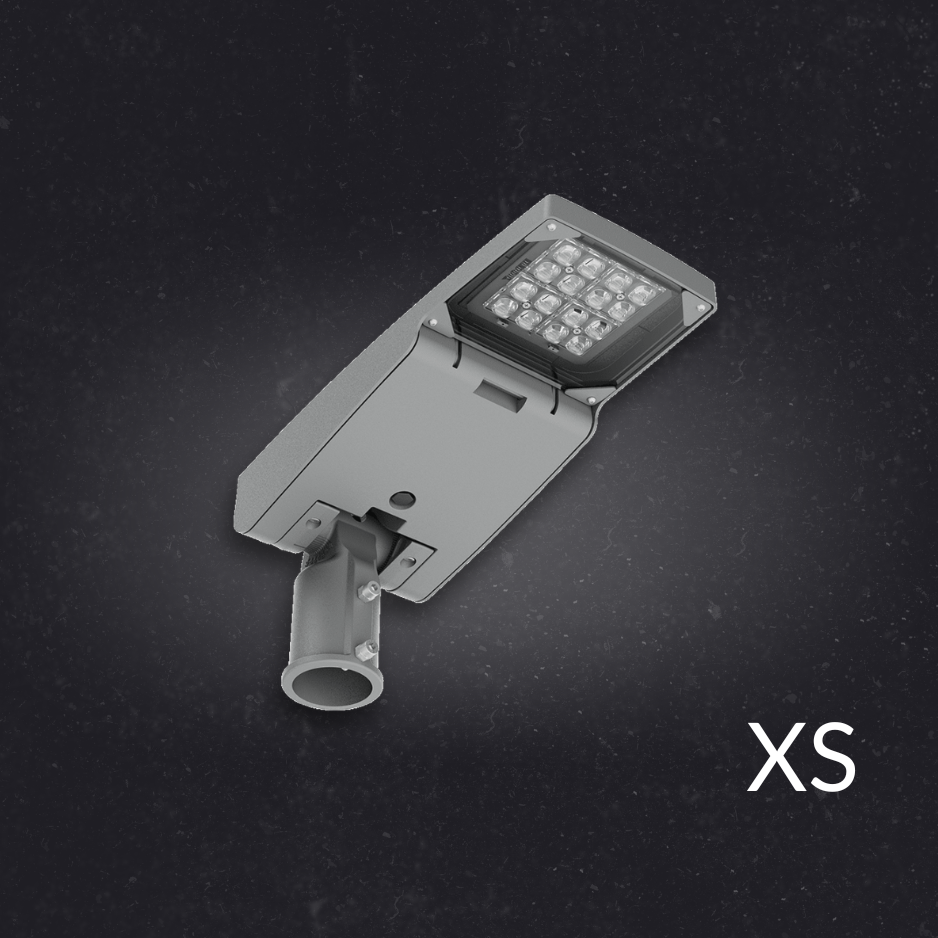

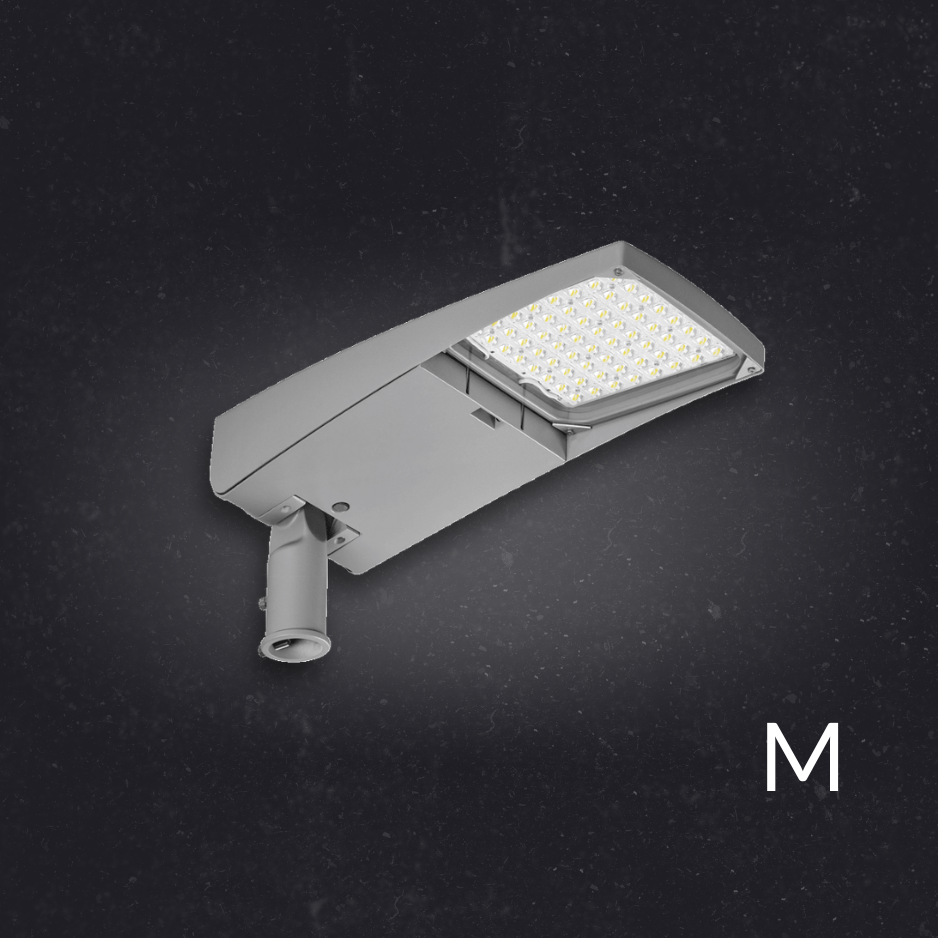

Vectra 2 LED L Vectra 2 LED M Vectra 2 LED S Vectra 2 LED XS

Request A Quote Ask About The Product

Types Comparison

Vectra 2 LED L

Rated power [W]	Luminous flux [lm]	Luminous efficacy [lm/W]	Energy class	Colour temp [K]	CRI	Electrical class	Optics	DALI
69	12125	175	B	4000	70	II	RM7	yes
73	12800	175	B	4000	70	II	RM7	yes
76	13225	174	B	4000	70	II	RM7	yes
78	13600	174	B	4000	70	II	RM7	yes
85	14900	175	B	4000	70	II	RM7	yes
140	24100	172	B	4000	70	II	RM7	yes
145	24675	170	B	4000	70	II	RM7	yes
150	25450	169	B	4000	70	II	RM7	yes
155	26525	171	B	4000	70	II	RM7	yes
165	27425	166	B	4000	70	II	RM7	yes
170	26300	154	B	4000	70	II	RM7	yes
180	27400	152	B	4000	70	II	RM7	yes
190	28925	152	B	4000	70	II	RM7	yes
200	30300	151	C	4000	70	II	RM7	yes
215	32400	150	C	4000	70	II	RM7	yes
230	34150	148	C	4000	70	II	RM7	yes
245	37700	153	B	4000	70	II	RM7	yes
260	39425	151	C	4000	70	II	RM7	yes
275	41650	151	C	4000	70	II	RM7	yes
290	43275	149	C	4000	70	II	RM7	yes
305	44950	147	C	4000	70	II	RM7	yes
320	46675	145	C	4000	70	II	RM7	yes
330	48025	145	C	4000	70	II	RM7	yes
