EXF450LED
Zone :
Description
Ex II 2G Ex eb mb IIC T4/T5 Gb
Ex II 2D Ex tb IIIC T80… 115°C Db

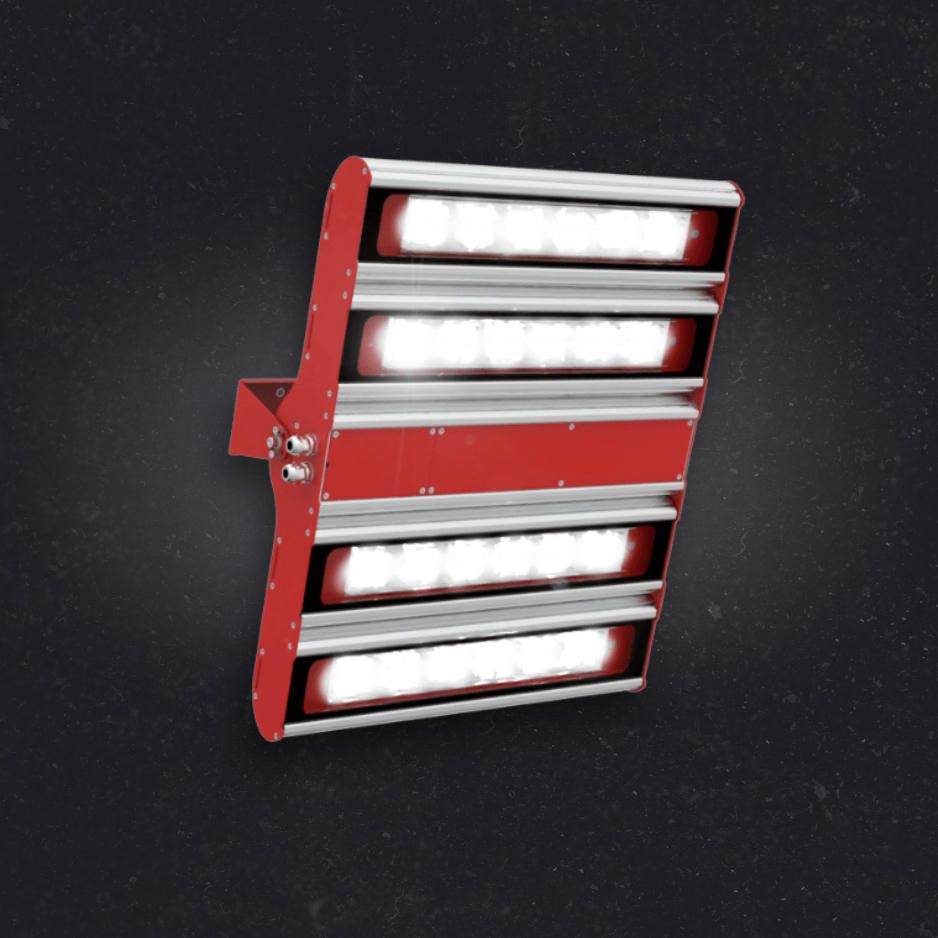

EXF450LED flood lights are designed to light indoor and outdoor areas in zone 1 and 2 of explosion hazard of gas, vapors, or clouds of flammable liquids mixed with air which belongs to IIA, IIB or IIC explosion group, T1-T5 temperature class. EXF450LED light fittings are also suitable to light areas in zones 21 and 22 of explosion hazard of dust and flammable fibers mixed with air
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Wattage |
Efficiency (lm/W) |
Lumens |
|---|---|---|---|
| EXF450LED-EY2-1 | 103 | 121 | 12500 |
| EXF450LED-EY2-2 | 158 | 111 | 17500 |
| EXF450LED-EY3-1 | 160 | 119 | 19000 |
| EXF450LED-EY3-2 | 198 | 114 | 22500 |
| EXF450LED-EY3-3 | 238 | 110 | 26100 |
| EXF450LED-EY4-1 | 207 | 121 | 25000 |
Electrical Features
- Connection terminals: 2,5mm2 | 6,0mm2-optional
- Input voltage: 100-277 V, 50-60 Hz voltage + 10%
- Light source: Intrinsically safe LED modules
- Power factor: >0,98
- Cable inlets: Ø20, Ø25
- Overvoltage protection: 24E: L-N 6kV, L-PE 10kV
Mechanical Features
- Housing: Anodized aluminum
- Diffuser: Tempered glass
- Ingress protection: IP66, IP67
- Protection class: I
- Shock resistance: GL: IK09
- Mounting: On the bracket
- Mounting accessories: Check mountings
- Optional accessories: Protection grid
- Wires between the fitting modules: High temperature resistant silicone wires.
Work Parameters
- Ambient Temperatures: -40°C up to +65°C
- Lifetime: >50.000h L80 B10 | >70.000h L70 B10
Photometrical Parameters
- CRI: >80, >90 optionally
- Colour temperature: 4000k, 6000k
- Light pulsation: SVM<0,01 | acc. with IEC TR 61547-1:2020
- Flicker indictor: PstLM <0,3 acc. with IEC TR 61547-1:2020
