EXL380LED
Zone :
Description
Ex II 3G Ex ec op is IIC T4 Gc
Ex II 2D Ex tb op is IIIC T80°C Db

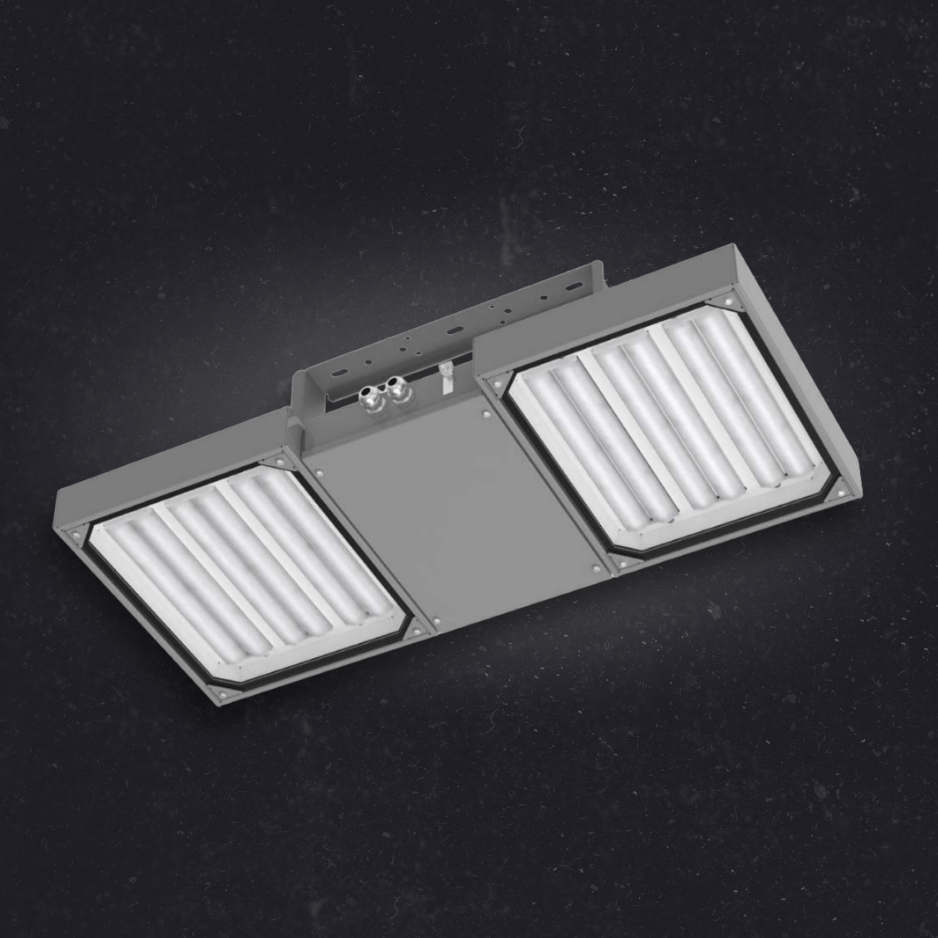

Explosion-proof floodlight with LED modules and special optics. Designed for use in zones 21&2,22 of explosion hazard of gases, vapors and mists of flammable liquids with air, as well as flammable dust and fibers. It has ATEX KDB 15ATEX0049X and IECEx KDB 20.0003X certificates.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Luminous Flux (lm) |
Wattage |
Efficiency (lm/W) |
|---|---|---|---|
| EXL380LED-045-E4 | 6570 | 53 | 125 |
| EXL380LED-090-E8 | 13244 | 98 | 138 |
| EXL380LED-130-E12 | 19215 | 146 | 133 |
Electrical Features
- Connection terminals: 2,5mm2
- Input voltage: 230V, 0/50-60 Hz
- Light source: Intrinsically safe LED modules
- Power factor: >0,97
- Cable inlets: Ø20
- Overvoltage protection: 2kV
Mechanical Features
- Housing: Powder-coated or brushed stainless steel
- Diffuser: Tempered glass
- Ingress protection: IP65
- Protection class: I
- Mounting: Using accessories
- Accessibility: Bracket
Work Parameters
- Ambient Temperatures: -40°C to +40°C
- Lifetime: >70.000h L80 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K
Certificate Information
- Standard Version
- Ex II 3G Ex ec op is IIC T4 Gc
- Ex II 2D Ex tb op is IIIC T80°C Db
- Certificates
- KDB 15ATEX0049X
- IECEx KDB 20.0003X
