INS350LED
Zone :
Description

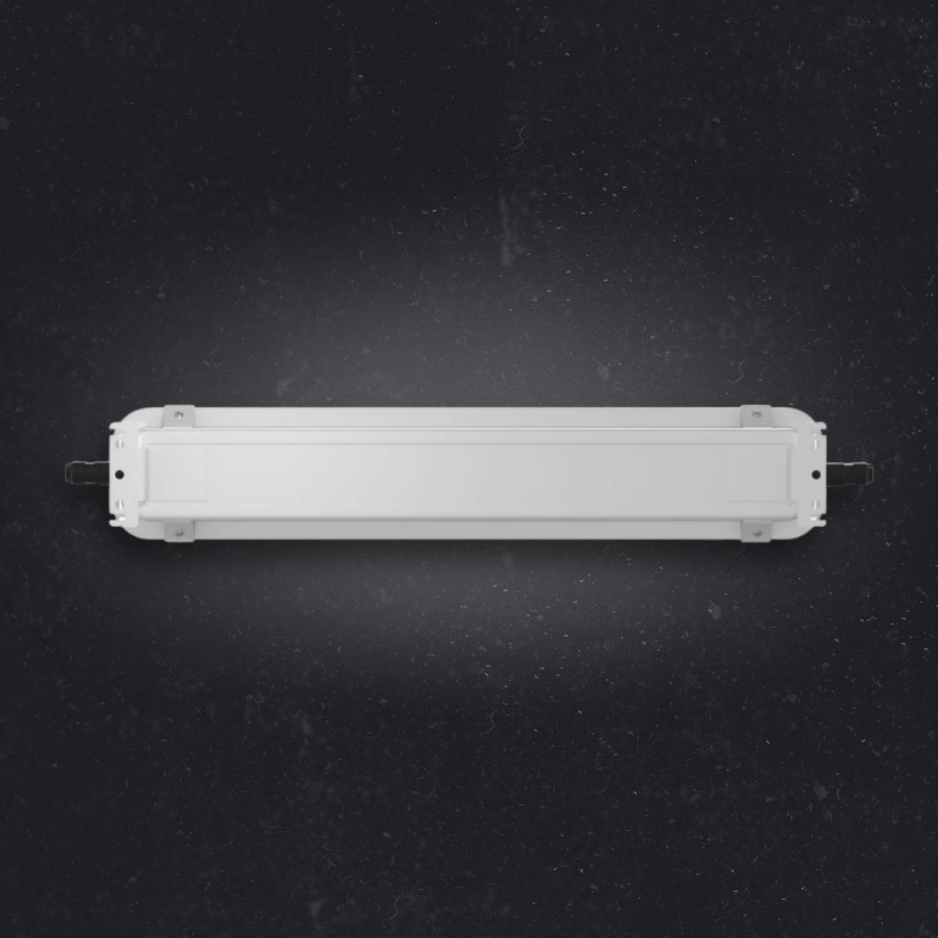

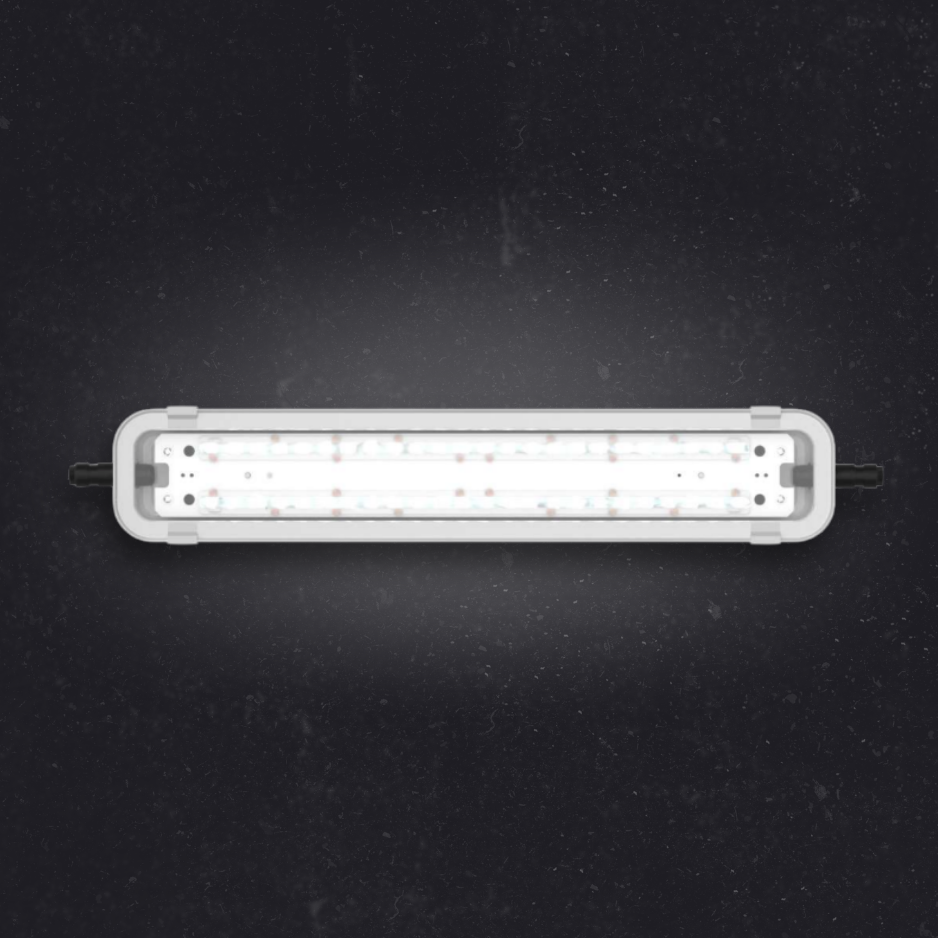

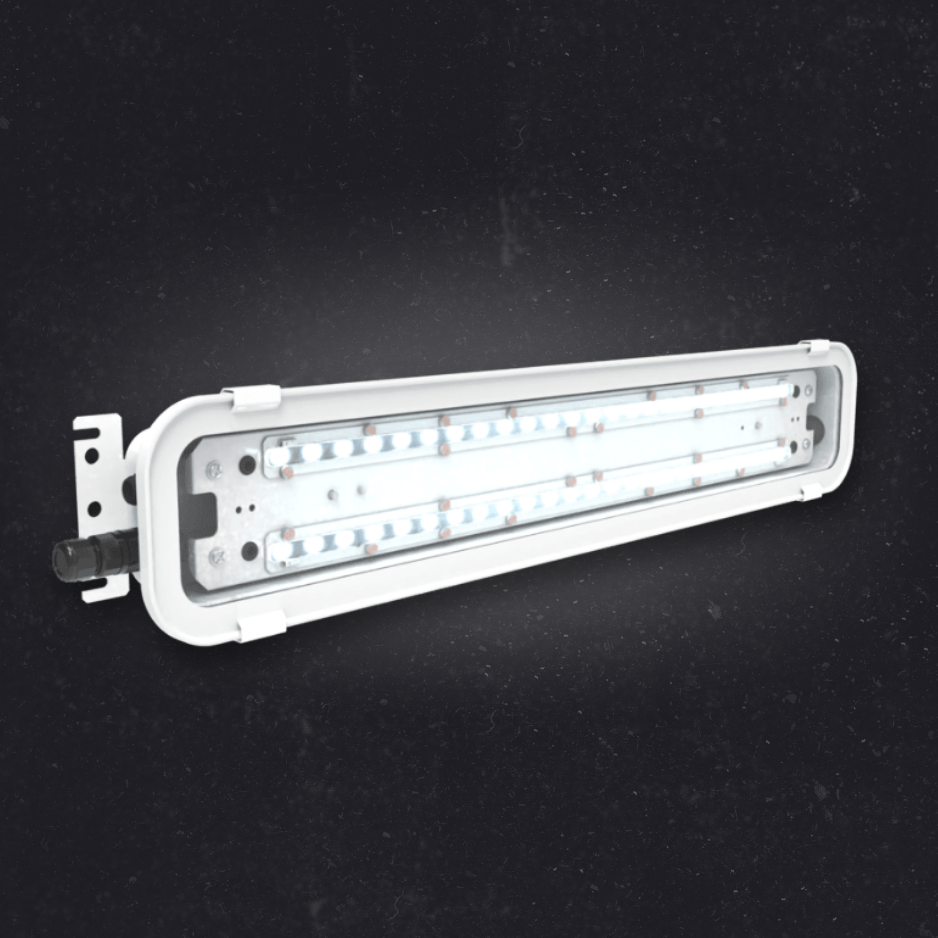

Waterproof and dustproof industrial lighting fixture, with the possibility of encapsulating LED modules. The housing is made of powder-coated stainless steel, while the lampshade can be made of durable polycarbonate, PMMA, tempered glass or tempered glass with safety-glass foil. The socket and plug used allow for quick installation. The fixture has a PZH certificate.
Downloads
Types Comparison
Please see datasheet for complete table with additional information.
|
Code |
Wattage |
Luminous Flux |
Efficiency (lm/W) |
|---|---|---|---|
| INS350LED-0600-J2-1 | 18,2 | 2650 | 145 |
| INS350LED-0600-J2-3 | 25,7 | 3700 | 144 |
| INS350LED-1200-J4-1 | 34,5 | 5390 | 156 |
| INS350LED-1200-J4-3 | 49,1 | 7500 | 153 |
| INS350LED-1200-B4-1 | 57,8 | 9150 | 158 |
| INS350LED-0600-D2 | 20,0 | 2690 | 135 |
| INS350LED-1200-D4 | 39,3 | 5370 | 137 |
Electrical Features
- Wiring: Optional throughwiring (up to 7 wires inside the light fitting)
- Cable glands: PG 13.5 thread
- Certification: CE, ENEC, CB, HACCP
Mechanical Features
- Housing: Grey polycarbonate
- Diffuser: Clear polycarbonate nano-optics
- Ingress protection: IP66, IP68
- Impact strength: IK10
- Mounting: Suitable for suspended, ceiling, wall, and surface mounting via stainless steel hooks and brackets
Work Parameters
- Ambient Temperatures: -25°C to +50°C
- Lifetime: 50.000h L90 B10
Photometrical Parameters
- CRI: >80
- Colour temperature: 4000K - standard
- On request CRI > 80: 3000K, 5000K, 6500K
- On request CRI > 90: 3000K, 4000K, 5000K, 6500K
