INV320LED SF

Description

PKP PLK admission D/IST/03/2024,

ENEC PL BBJ/017/2018/M2,

CNBOP 4737/2022

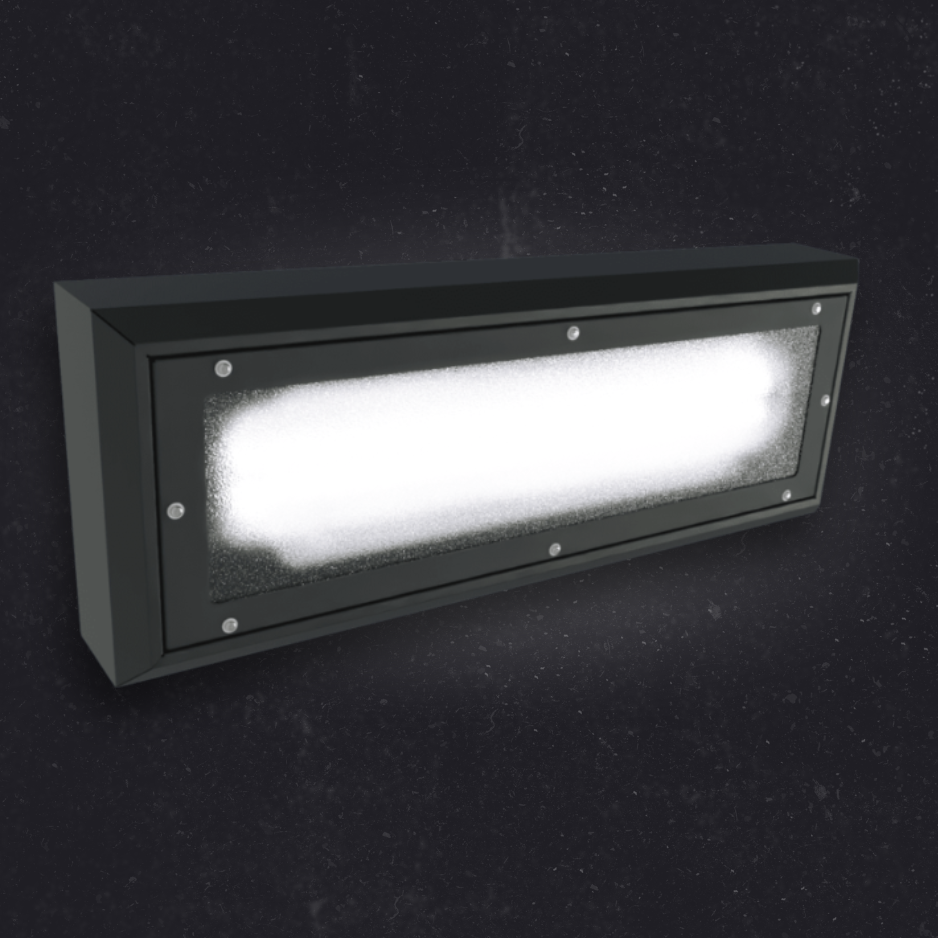

Vandal-proof luminaire with LED modules, designed for surface mounting on the ceiling or wall. It is characterized by a very high degree of impact resistance (IK11+). The housing is made of stainless steel, painted with modified powder paint. The lampshade is made of thick prismatic polycarbonate, which ensures its durability, and a special lock prevents unauthorized access. The luminaire has PKP approval no. D/IST/03/2024, CNBOP approval no. 4737/2022, as well as ENEC certificate no. PL BBJ/018/2018/M2

LDT CE Datasheet

Request A Quote Ask About The Product

Types Comparison

Please see datasheet for complete table with additional information.

Type of the Fixture	Luminous Flux [lm]	Power Consump. [W]	Efficiency [lm/W]	Max. Amb. Temp. [°C]
INV320LED-0600-J2-1-…-SF	2427	18.2	133	45
INV320LED-0600-J2-3-…-SF	3308	26.2	126	45
INV320LED-0600-B2-1-…-SF	4854	35.4	137	45
INV320LED-0600-B2-2-…-SF	5487	40.7	135	45
INV320LED-1200-J4-1-…-SF	4854	35.4	137	45
INV320LED-1200-J4-2-…-SF	5486	40.7	135	45
INV320LED-1200-J4-3-…-SF	6615	51.3	129	45
INV320LED-1200-B4-1-…-SF	9708	69.8	139	45
INV320LED-1200-B4-2-…-SF	10974	80.3	137	45
INV320LED-1500-J4M2-1-…-SF	6068	44	138	45
INV320LED-1500-J4M2-3-…-SF	8269	63.9	129	45

Electrical Features

Parameter	Specification
Connection terminals	4.0 mm²
Input voltage	35E: 220–240V 50–60Hz
Input voltage	34E: 220–240V 50–60Hz
Light source	LED modules with ENEC certificate
Power factor	>0.95
Cable inlets	Ø20 (wire 8–13 mm)
Overvoltage protection	L–N 10kV

Mechanical Features

Parameter	Specification
Housing	Powder coated stainless steel (NIRO)
Diffuser	Prismatic polycarbonate (PC)
Shock resistance	IK11+ (150J)
Ingress protection	IP65
Protection class	II
Mounting	4 holes, easy mounting

Work Parameters

Parameter	Specification
Ambient temperature	-40°C to +45°C
Lifetime	50,000h L80 B50
Lifetime	70,000h L80 B10

Photometrical Parameters

Parameter	Specification
CRI	>80
Colour temperature	4000K / 3000K (optionally)
