TAUREX 1 G2

TAUREX 1 G2

Description

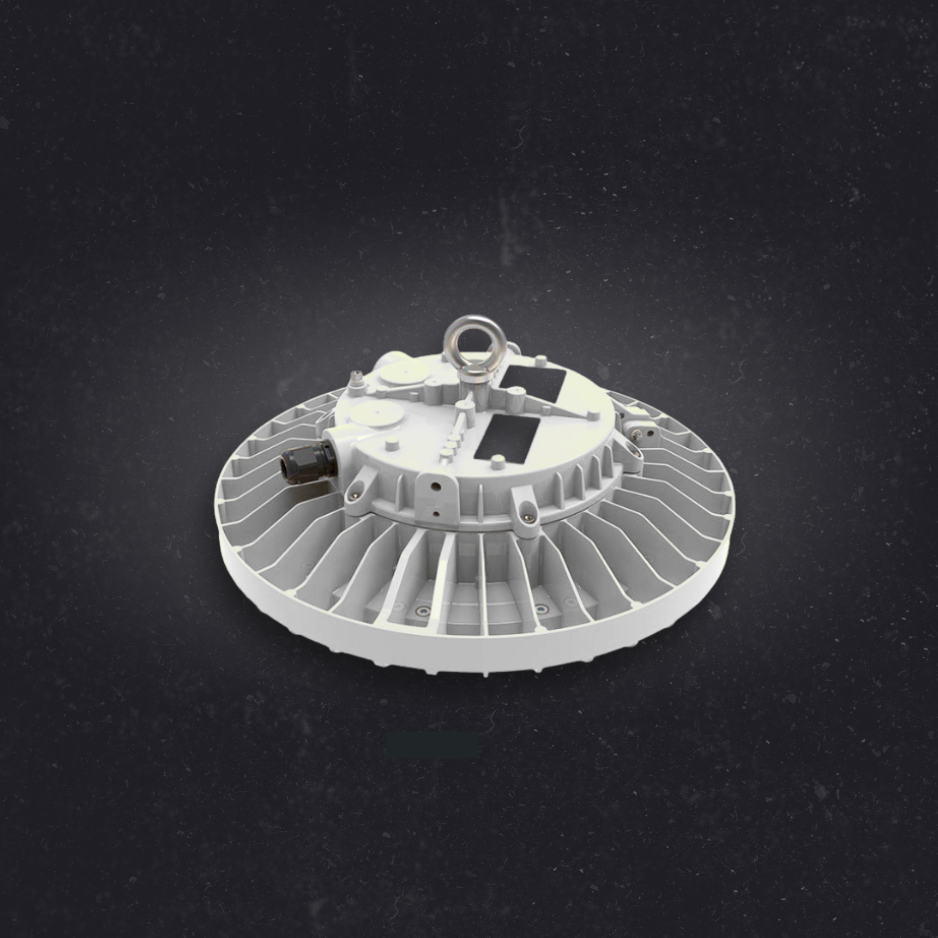

High-output LED luminaire delivering up to 25,600 lm, with IK10 impact resistance and IP66/67 protection. Built for harsh environments, it offers reliable performance and long service life.

Request A Quote Ask About The Product

Types Comparison

Standard Version

Description	Luminous flux (lm)	Power (W)	Efficiency (lm/W)	Colour temperature (K)	CRI	Temperature range
TAUREX G2 38 64-840 CG	6400	40	160	4000	80	-32°C – +60°C
TAUREX G2 38 96-840 CG	9600	60	160	4000	80	-32°C – +60°C
TAUREX G2 38 128-840 CG	12800	80	160	4000	80	-32°C – +60°C
TAUREX G2 38 160-840 CG	16000	100	160	4000	80	-32°C – +55°C
TAUREX G2 38 192-840 CG	19200	120	160	4000	80	-32°C – +55°C
TAUREX G2 38 224-840 CG	22400	140	160	4000	80	-32°C – +50°C
TAUREX G2 38 240-840 CG	24000	150	160	4000	80	-32°C – +50°C
TAUREX G2 38 256-840 CG	25600	160	160	4000	80	-32°C – +50°C

High Temperature

Description	Luminous flux (lm)	Power (W)	Efficiency (lm/W)	Colour temperature (K)	CRI	Temperature range
TAUREX G2 38 64-840 NiCG HT	6400	40	160	4000	80	-32°C – +75°C
TAUREX G2 38 96-840 NiCG HT	9600	60	160	4000	80	-32°C – +70°C
TAUREX G2 38 128-840 NiCG HT	12800	80	160	4000	80	-32°C – +65°C

Mechanical Features

Parameter	Specification
Material	Copper-free casting aluminium alloy with surface protection against impacts and corrosive environments
Diffuser	Hardened glass
Eyebolt	Stainless steel
Ingress Protection	IP66/67
Impact Resistance	IK10

Electrical Features

Parameter	Specification
Connection	3-pole screwless connector
Power Factor	> 0.97 (full load)
Class Protection	I
Rated Voltage	198–277 VAC / 198–250 VDC
THD	> 20% (full load)
Inrush Current	75A (full load)

Work Parameters

Parameter	Specification
Ambient Temperature	-32°C to +60°C
Lifetime	L80 90,000h at 25°C
